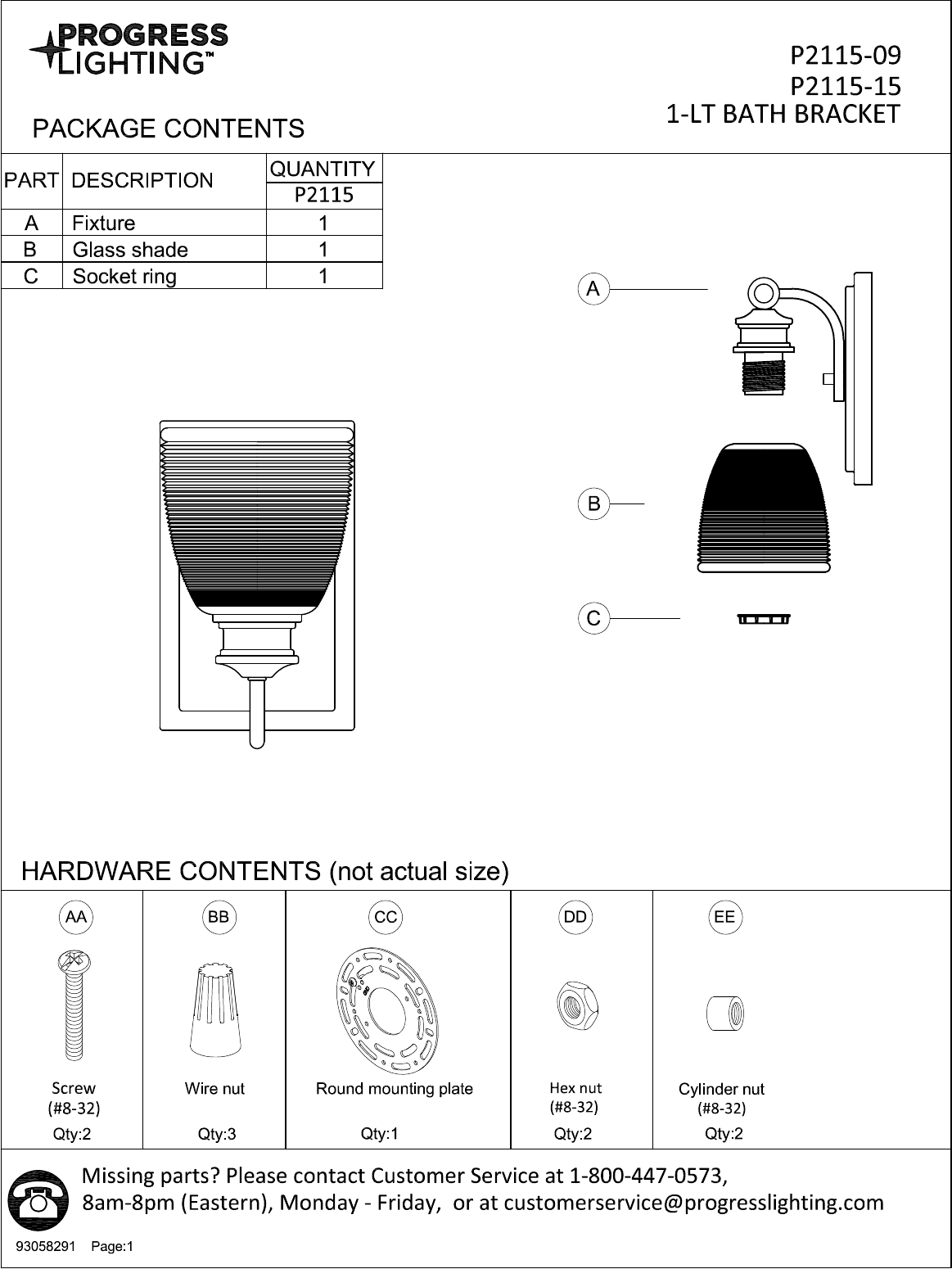

SIGHTING” P2115-09 P2115-15 PACKAGE CONTENTS 1-LT BATH BRACKET QUANTITY PART| DESCRIPTION P15 A | Fixture 1 B | Glass shade 1 C | Socket ring 1 HARDWARE CONTENTS (not actual size) Screw Wire nut Round mounting plate Hex nut Cylinder nut Qty:2 Qty:3 Qty:1 Qty:2 Qty:2 Missing parts? Please contact Customer Service at 1-800-447-0573, @ am-8pm (Eastern}), Monday Friday, or at 93058291 Page:1
A Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. CAUTION: Read instructions carefully and tum electricity off at main circuit breaker panel before beginning installation. CAUTION: Risk of fire. Min. 90°C supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor. WARNING: If any Special Control Devices are used with this fixture, follow instructions carefully to assure full compliance with N.
Assembly Instructions 3. Strip 3/8” of insulation from the electrical wire ends. 5. Attach glass (B) to fixture {A} and use socket ring Using wire nuts (BB), connect white fixture wire to the {C) to secure tight. white supply wire from the outlet box; connect the black fixture wire to the black supply wire. 5 Connect the fixture ground wire and supply ground wire using a wire nut or by fastening to the ground screw on the round mounting plate. Push all wire connections into the outlet box. @ 4.
