User manual

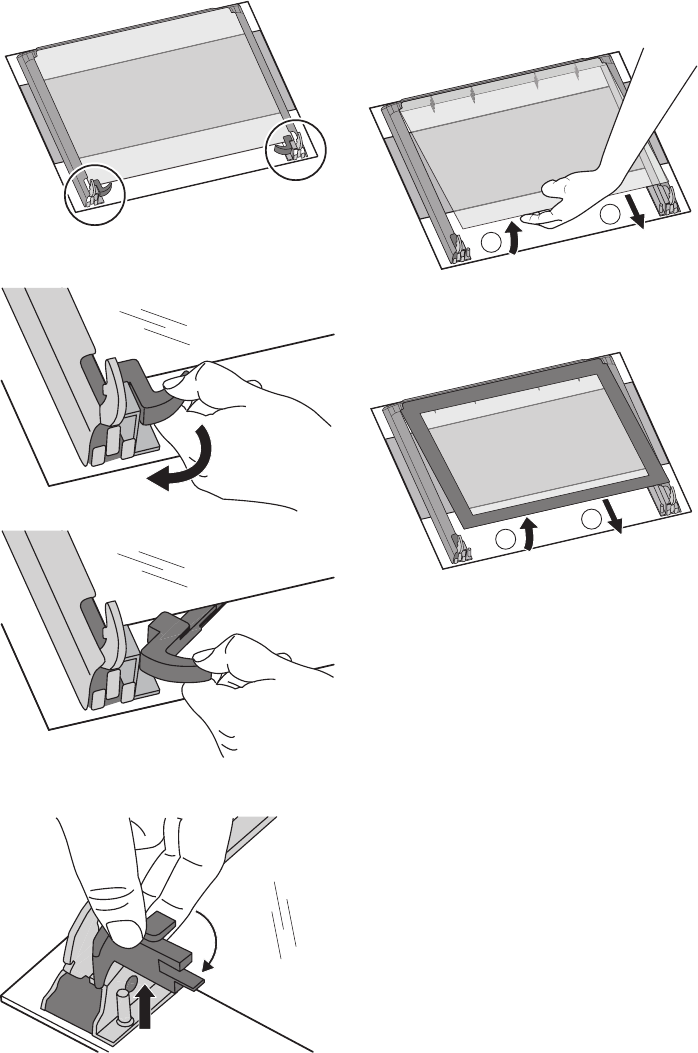

7. Release the locking system to remove the
internal panes of glass
8. Turn the 2 fasteners 90° and extract them
from their seats
90°
9. Gently lift and carefully take off the up-
permost pane
1
2
10
.
Repeat the procedure described in point
9. for the middle pane marked by a dec-
orative frame on 4 sides
1
2
Clean the oven door with lukewarm water
and a soft cloth. Do not use products such
as scouring pads, steel wool, abrasive
sponges or acids because they could dam-
age the special heat-reflecting surface of the
internal panes of glass.
After cleaning, reassemble the panes in the
door and then the oven door, following the
procedure described above in reverse. Make
sure you reposition the panes correctly.
To perform this operation correctly, proceed
as follows:
1. the decorated middle pane with a frame
on the 4 sides must be reassembled so
that the screen-printing is facing out-
wards. The side of the pane of glass is
correct if you do not feel any roughness
near the screen printing when you pass
your fingers over the surface.
The middle pane of glass must be put
back into the right seats as shown
50 progress
