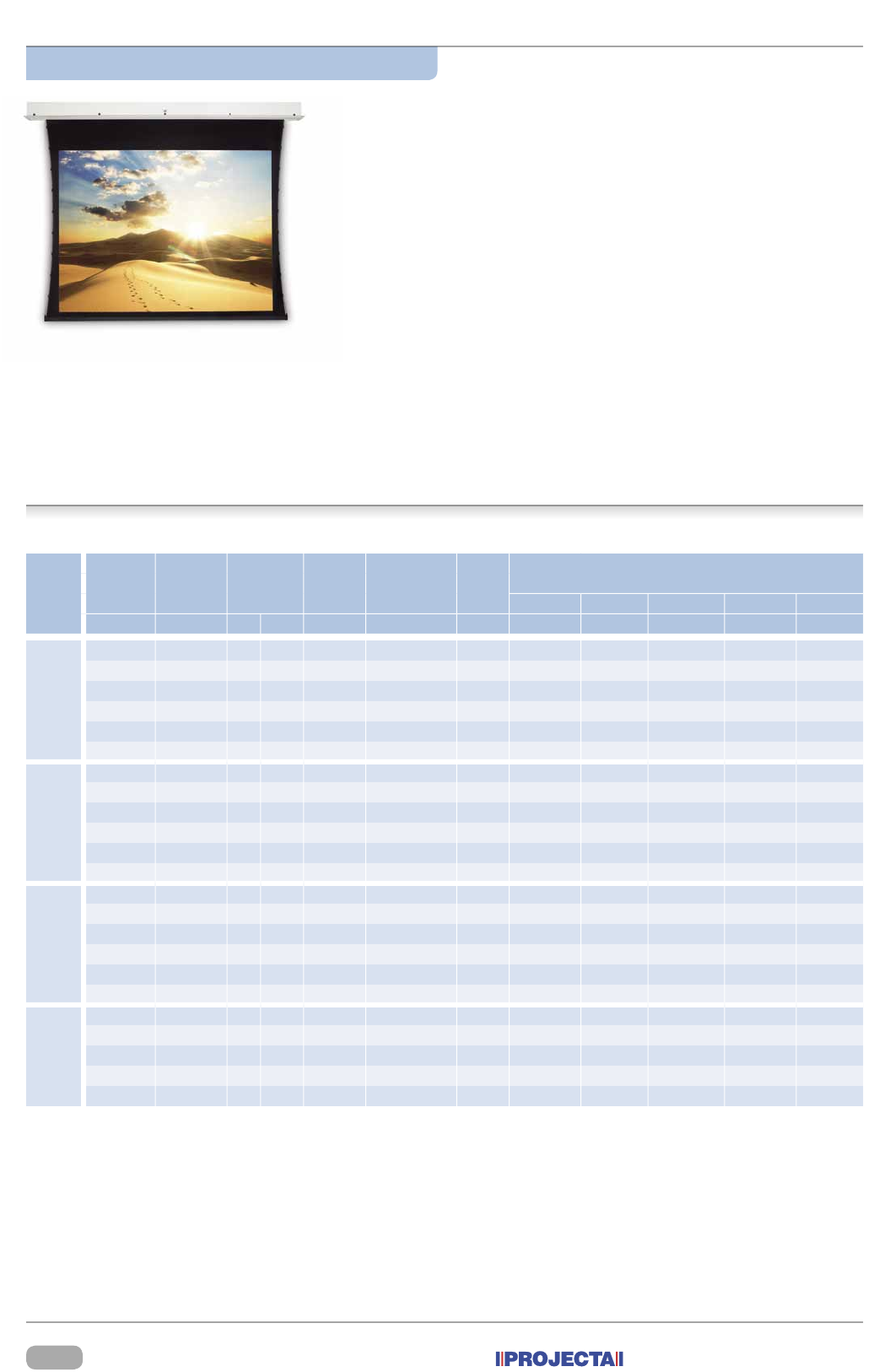

TENSIONED DESCENDER (RF) ELECTROL

4:3

138 x 180 128 x 170 210 83" 30 2212 25 10100901 10100918 10100930 10102490 10102496

153 x 200 143 x 190 238 94" 30 2431 27 10100902 10100919 10100931 10102491 10102497

168 x 220 158 x 210 263 103" 30 2651 30 10100903 10100920 10100932 10102492 10102498

183 x 240 173 x 230 288 113" 30 2819 32 10100904 10100921 10100933 10102493 10102499

213 x 280 203 x 270 338 133" 30 3253 36 10100905 10100922 10100934 10102494 10102500

228 x 300 218 x 290 363 143" 30 3471 39 10100906 10100923 10100935 10102495 10102501

16:9

102 x 180 96 x 170 193 76" 30 2212 23 10100907 10100924 10100936 10102502 10102508

117 x 200 107 x 190 218 86" 30 2431 25 10100908 10100925 10100937 10102503 10102509

128 x 220 118 x 210 241 95" 30 2651 27 10100909 10100926 10100938 10102504 10102510

139 x 240 129 x 230 264 104" 30 2819 29 10100910 10100927 10100939 10102505 10102511

162 x 280 152 x 270 310 122" 30 3253 33 10100911 10100928 10100940 10102506 10102512

173 x 300 163 x 290 333 131" 30 3471 36 10100912 10100929 10100941 10102507 10102513

2.35:1

82 x 180 72 x 170 185 73" 30 2212 23 10101364 10101370 10101376 10102514 10102520

91 x 200 81 x 190 207 81" 30 2431 25 10101365 10101371 10101377 10102515 10102521

99 x 220 89 x 210 228 90" 30 2651 27 10101366 10101372 10101378 10102516 10102522

108 x 240 98 x 230 250 98" 30 2819 29 10101367 10101373 10101379 10102517 10102523

125 x 280 115 x 270 293 115" 30 3253 33 10101368 10101374 10101380 10102518 10102524

133 x 300 123 x 290 315 124" 30 3471 36 10101369 10101375 10101381 10102519 10102525

16:10

129 x 200 119 x 190 224 88" 30 2431 26 10100913 10102526 10102531

141 x 220 131 x 210 248 97" 30 2651 28 10100914 10102527 10102532

154 x 240 144 x 230 271 107" 30 2819 30 10100915 10102528 10102533

179 x 280 169 x 270 318 125" 30 3253 34 10100916 10102529 10102534

191 x 300 181 x 290 342 135" 30 3471 37 10100917 10102530 10102535

TENSIONED DESCENDER RF ELECTROL

TENSIONED DESCENDER ELECTROL

• Attractive and durable built-in solution with tab-tensioned system for a flat projection

screen surface at all times. Building in a projection screen efficiently was never so easy.

• Easy Serviceability System: once installed, the motor and screen surface remain accessible

making adjustments and carrying out maintenance possible. The bottom panel and case

remain connected to each other.

• Easy to build into existing non-modular ceilings.

• The case and the projection screen surface can be made to exactly the right size and the

case is available in any colour for optimal integration into any interior.

• The projection surface is extremely flat, making it suitable for all types of data and video

projection.

TENSIONED DESCENDER RF ELECTROL

• Includes built-in radio frequency receiver, making it possible to operate the screen using

the supplied remote control.

ELECTRIC PROJECTION SCREENS - BUILT-IN SCREENS

Aspect

Ratio

Overall

Dimensions

Viewing

Area

Nominal

Diagonal

Black

Drop

Overall Case

Length

(RAL 9016)

Net

Weight

Screen Surfaces

Matte White HCCV HCCV Sound Pearlescent Da-Tex®

H x W cm H x W cm cm inches cm mm kg

Prod. Code Prod. Code Prod. Code Prod. Code Prod. Code

Summary of content (4 pages)

PAGE 1
ELECTRIC PROJECTION SCREENS - BUILT-IN SCREENS TENSIONED DESCENDER (RF) ELECTROL TENSIONED DESCENDER ELECTROL • Attractive and durable built-in solution with tab-tensioned system for a flat projection screen surface at all times. Building in a projection screen efficiently was never so easy. • Easy Serviceability System: once installed, the motor and screen surface remain accessible making adjustments and carrying out maintenance possible. The bottom panel and case remain connected to each other.
PAGE 2
ELECTRIC PROJECTION SCREENS - BUILT-IN SCREENS TENSIONED DESCENDER (RF) ELECTROL Matte White 120º Easy Serviceability System 1.0 100º Pearlescent HCCV Sound HCCV 1.1 100º In the case mounting possibility 1.1 80º Slat bar retracts into the case Perfect integration into the ceiling Da-Tex® 1.5 60º 1.
PAGE 3
ELECTRIC PROJECTION SCREENS - BUILT-IN SCREENS TENSIONED DESCENDER (RF) ELECTROL ORDER THE SCREEN CASE AND SCREEN SURFACE ASSEMBLY SEPARATELY Screen Case Screen Surface Assembly Assemble the screen at a later stage TENSIONED DESCENDER RF ELECTROL SCREEN CASE / SCREEN SURFACE ASSEMBLY Aspect Overall Viewing Ratio Dimensions Area H x W cm H x W cm Nominal Diagonal cm inches Black Drop cm Screen Case (RAL 9016) Prod. Code Matte White Prod.
PAGE 4
ELECTRIC PROJECTION SCREENS - BUILT-IN SCREENS TENSIONED DESCENDER (RF) ELECTROL • Install the screen case of the Tensioned Descender (RF) Electrol separate from the screen surface during the rough-in stages of construction. • Order the Screen Surface Assembly at a later stage and complete the installation during the finishing stage preventing any damage. • The Screen Surface Assembly includes the bottom panel of the screen, motor and screen surface.
