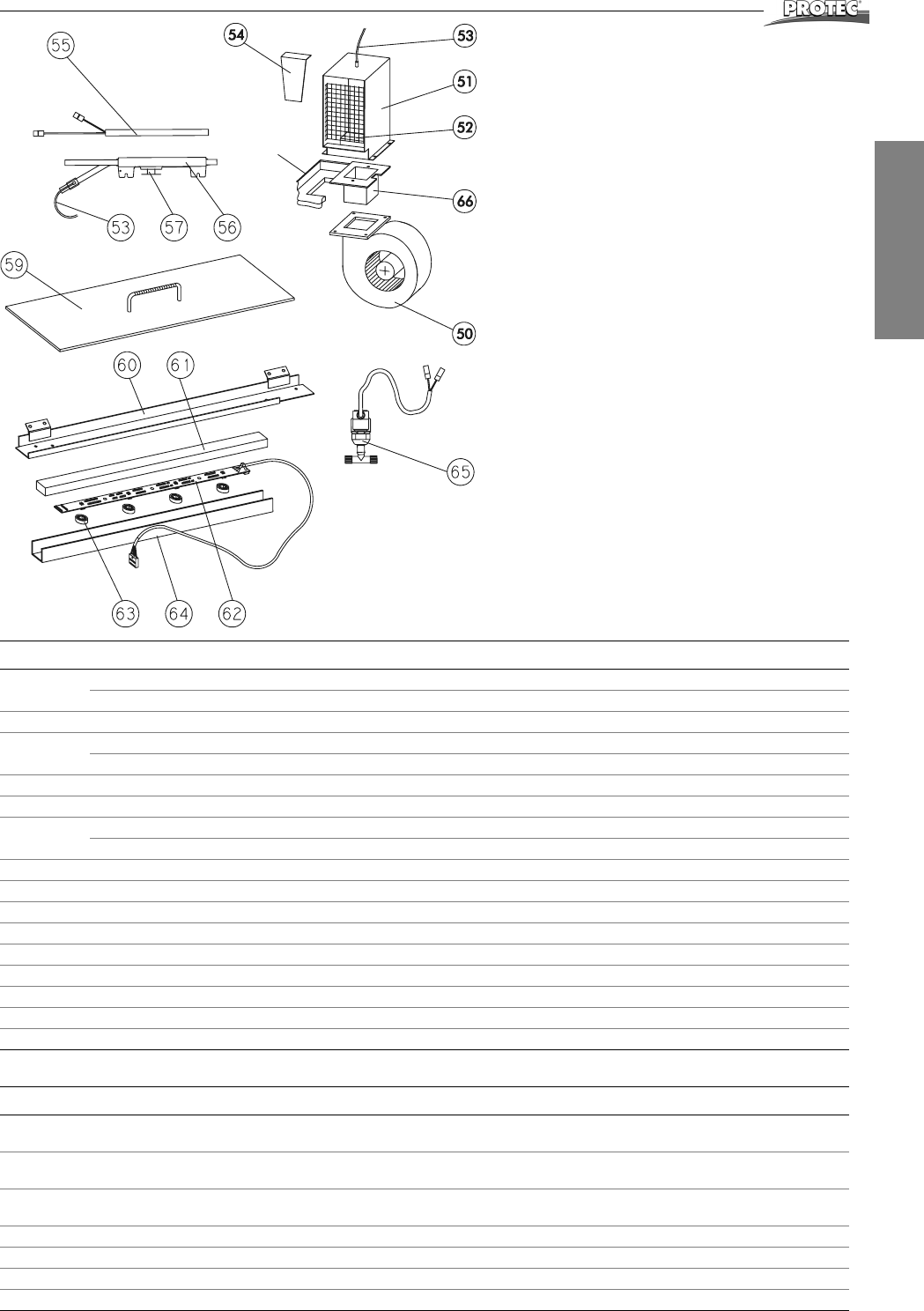

Spare Parts
English
®
Standard roller racks
Pos. Order No. Description:
50 2008-5-0007 Ventilation 230 V (dryer)
2008-7-0007 Ventilation 230 V (dryer) UL
51 1190-0-1301 Air channel
52 0190-0-1300 Heating element 2kW/230V (dryer)
0190-7-1300 Heating element 2kW/230V (dryer) UL
53 0190-0-2200 Temperature sensor (same for bath and dryer heating)
54 1190-0-1302 Plate for air channel
55 2003-5-0002 Heating element (bath heating)
2003-7-0002 Heating element 800 W UL
56 1190-0-2101 Heat exchanger
57 2005-0-0005 Temperature limiter
59 1190-0-4100 Condensation cover E
60 1190-0-0103 Light barrier support
61 2030-0-0014 Rubber inlet
62-63 0190-0-0800 Lightbarrier support, compl.
64 1190-0-0107 Light barrier casing
65 1120-5-1900 Solenoid valve 230 V
66 1190-0-1304 Channel dryer heating
Pos. Order No. Description:
- 1190-0-0300 Developer standard
Additional information concerning Compact 2 NDT see on page 57
- 1190-0-0400 Fixer standard
Additional information concerning Compact 2 NDT see on page 57
- 1190-0-0600 Water/dryer standard
Additional information concerning Compact 2 NDT see on page 57
- 1191-0-0300 Developer graphics art
- 1191-0-0400 Fixer graphics art
- 1191-0-0600 Water/dryer graphics art
69 1190-0-0301 Side plate dev. right
