Installation

1. Requirements for installation

a. Fresh water connection: Stop cock with 3/4" outer-thread diameter (washing

machine connection), Water pressure 2 - 10 bar (29 - 145 psi).

b. Drainage connection: Plastic tube - inner diameter 50 mm ”or larger. A ven-

tilated syphon which serves as odour preventor should be included in the

planning. The drainage tubes should be installed with a fall of minimum 5 %.

Local Water Authorities regulations should be complied with.

c. Electrical connection: Fused wall socket with earth connection according to

electrical data (see technical specifications, page 5). It is also required to

install an earth-leakage switch (with 25 A / 30 mA nominal error current).

2. Installation of processor

a. Unpack and assemble base table/ base cabinet respectively according

enclosed manual.

b. Unpack Processor and mount onto base table/ base cabinet respectively

according to manual. Remove the transport securing bars of the roller-racks.

Fit the gear and dryer plates to the water/dryer-rack.

Electrical connections should be carried out according to reg-

ulations by an electrician.

Depending on model type the Compact 2 has either an open

tand or like shown here a closed cabinet.

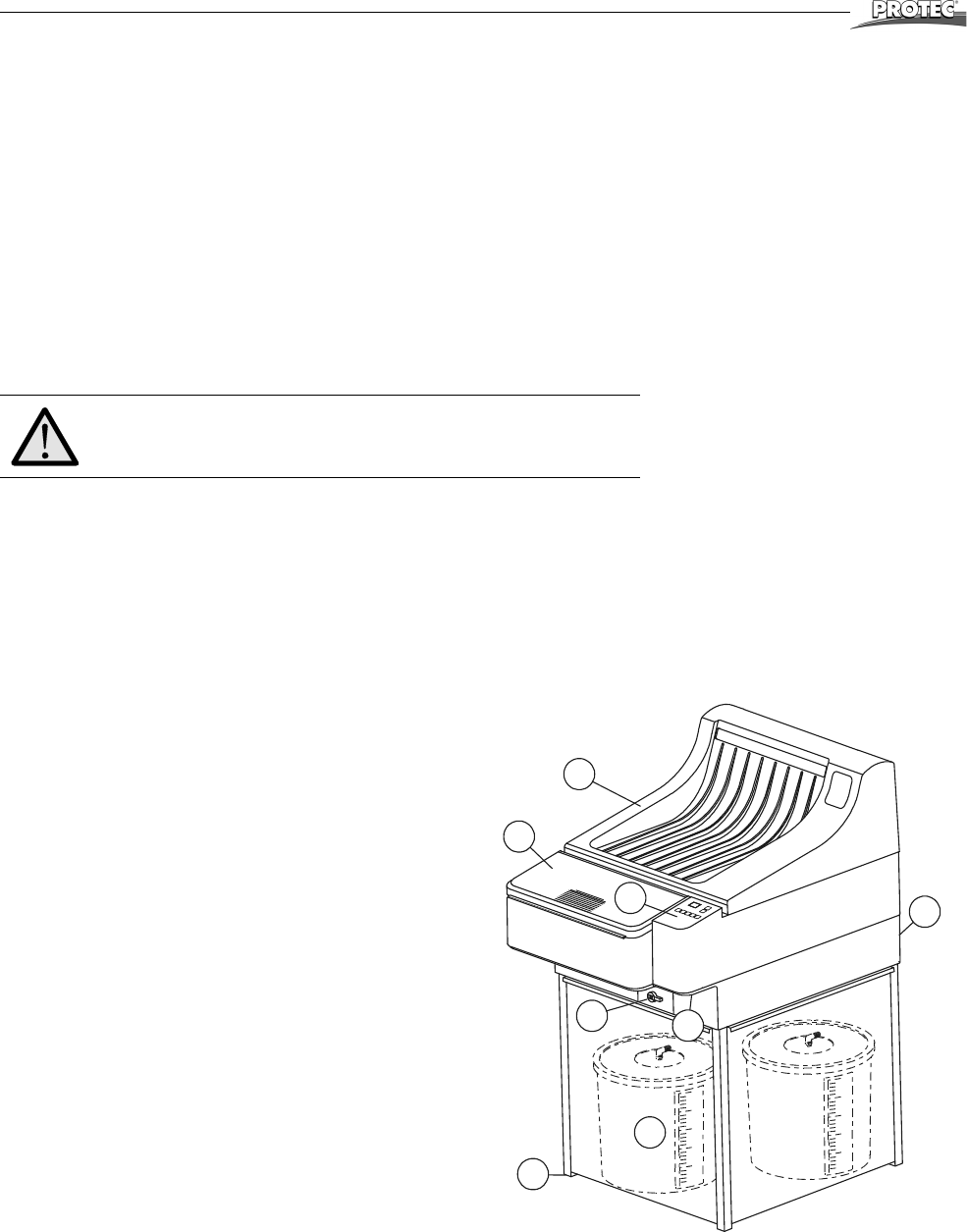

1 Machine cover

2 Light protection cover on film infeed

3 Control panel

4 Power switch and main fuses

5 Replenishment tanks

6 Stop cock of water

7 Connections for freshwater, replenishment and

drainage respective overflow

8 Levelling feet
