Initial Operation

Levelling of machine: Place machine in working position and level with spirit level.

To do this, take off machine cover and place spirit level across the two intermediary

rinsing channels. Level machine by adjusting the feet on the table legs. Accurate

levelling is essential to avoid possible overflows at a later point in time.

Connect power cord: Lay power cord so that it will not be tripped over and not be

bent or frayed. If an extension cord is required use only cords that have been ap-

proved for usage with respective current.

1. Test run

a. Close the three drainage stop cocks (front and rear). Fill the developer- and

fixertank and also the replenishment containers with water. Open water inflow

tap. Switch the machine on at the main switch. Water now flows into water

tank.

b. The circulation pump runs after switching on the machine and ventilates itself.

If this does not occur, switch the machine off again. Open the stop cock of the

respective chemical for five seconds and close it afterwards again. Switch the

machine on again. Repeat this procedure until the pump is ventilated.

c. Before filling with chemicals, check all hose connections again for leakage.

Switch machine off and drain water out.

2. Fill processor with chemicals

Prepare chemicals inside the replenishment containers according to manufacturers

instructions. By using a suitable container, pour chemicals into the respective tanks.

When filling, be sure that chemicals do no splash from one bath into another. Fixer

chemicals destroy developer chemicals! Depending on the chemical type add start-

er solution. Place the floating cover into developer replenishment container. Close

container cover firmly and insert the suction tubes. Pay attention to the colours:

Red = Developer, Blue = Fixer.

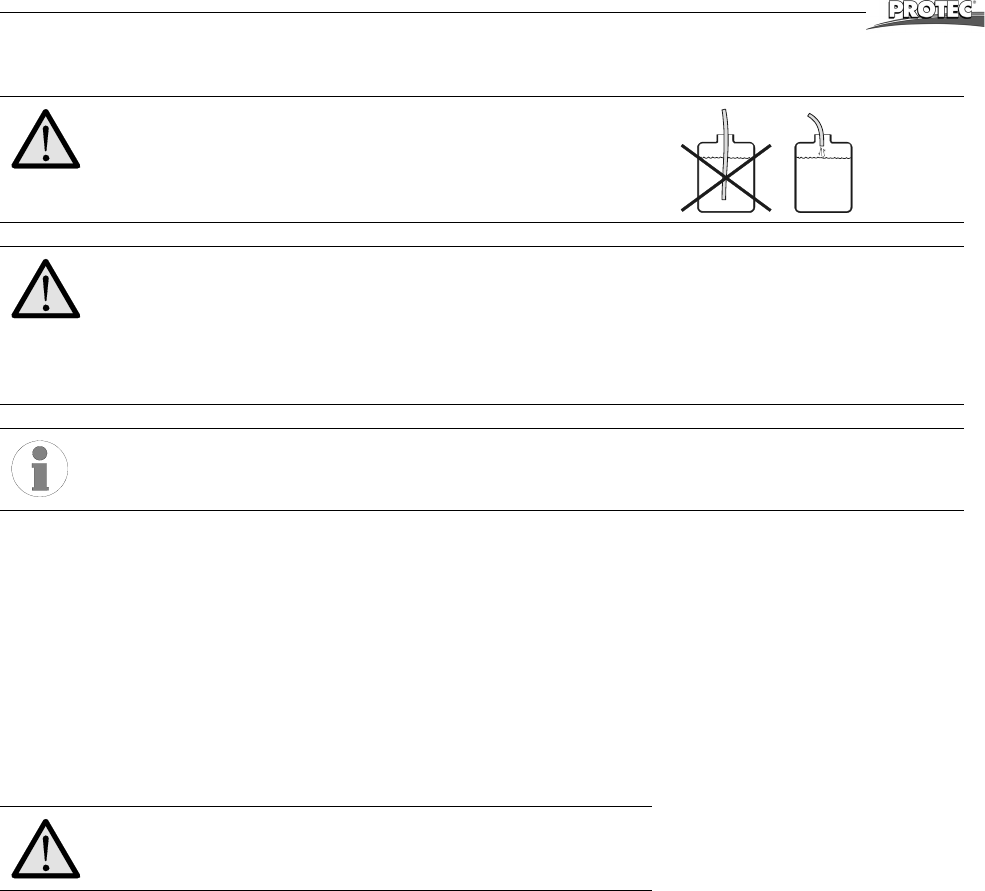

Danger of Overflow!

Use the included cable binders (accessory bag) to secure the

hoses. Fix all hose ends which guide into syphon or collecting

container, so that they do not drop into the liquid.

Very important:

The hose piping should be straight (without the hoses going

up and down) with a constant fall. The hoses should be as

short as possible and without bends and kinks. This is very

important for the water overflow hose. Bad piping work will

cause the machine to overflow!

Inform yourself of the local water board regulations regarding

drainage. These regulations may differ from information in

this manual, but they should be complied with.

Important!

Processor should not be run dry!
