Specifications

PS Engineering
PMA7000M-S Series Audio Selector Panel and Intercom System
Installation and Operator’s Manual for Civil Air Patrol
200-072-0004 Appendix B Rev. 4, Sept. 2000

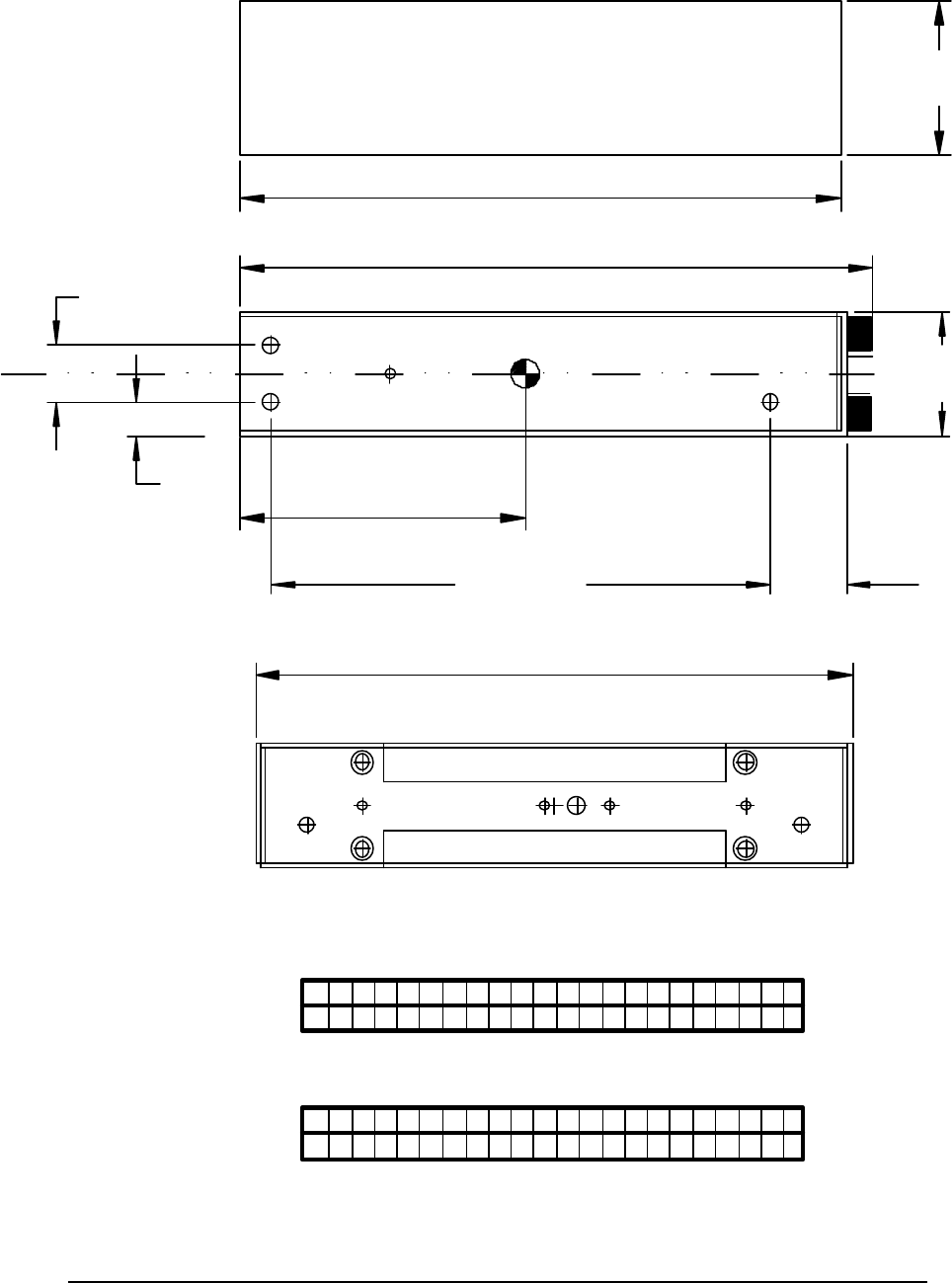

Appendix B Installation Drawing
1.31 in
(33.27 mm)
0.60 in (15.25 mm)
0.35 in
(8.9 mm)
5.25 in
(133.4 mm)
0.8 in
(20.3 mm)
6.31in (160.3 mm)
Cutout size for front mount installation
1.62 in
(41.15 mm)
6.28 in
(159.5 mm)
3.00 in (76.2 mm)
CG
Weight: 1.5 lb with tray and connectors ( .68 kg)
Side View
Rear View
6.65 in (167 mm)
J1 (bottom)
J2 (top)
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the rear
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
