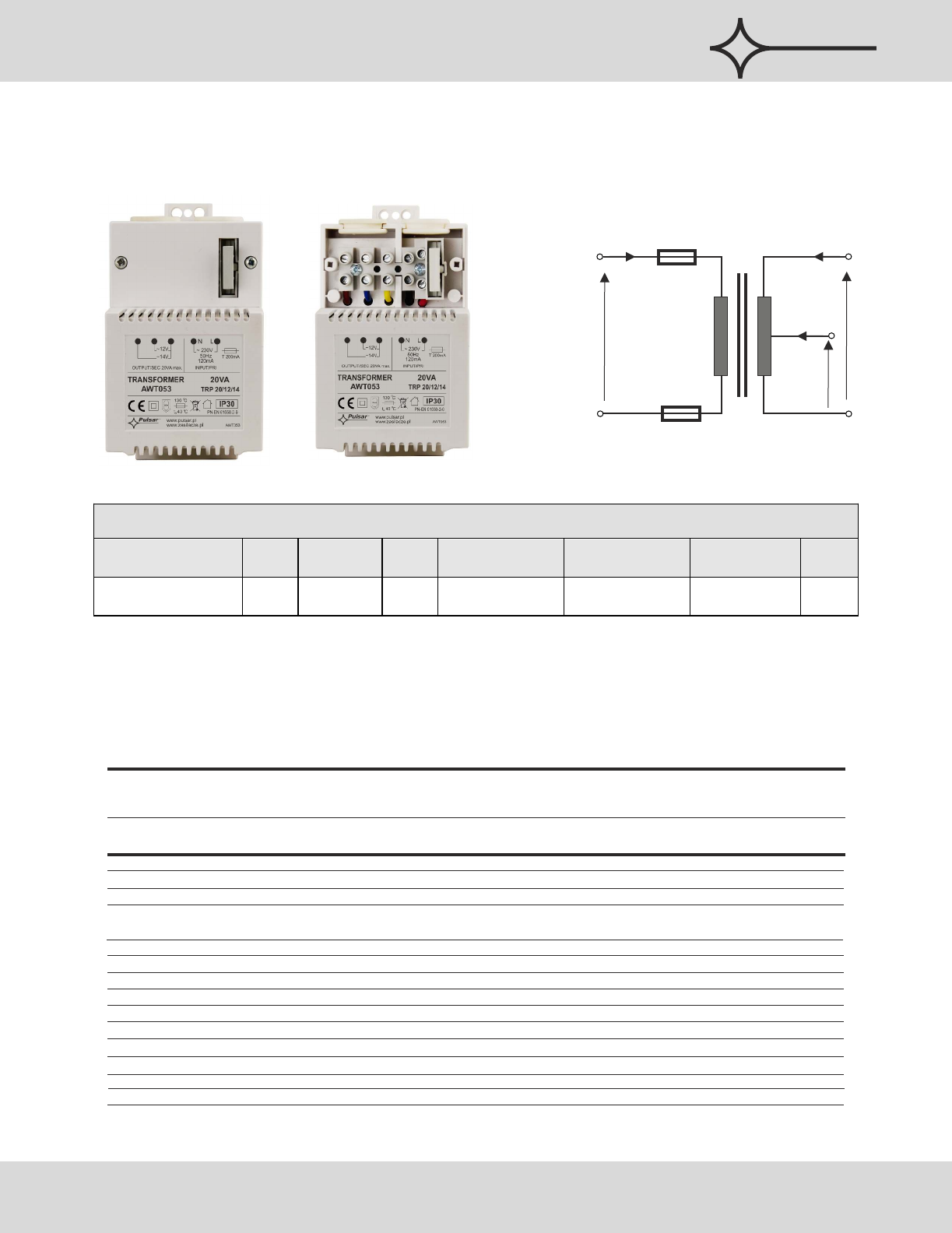

Data Sheet

Transformers

TRP series

USE

The transformers are destined for supplying devices requiring AC voltage U1 or U2.

TECHNICAL DATA

Casing: PC/ABS in class UL 94 V-0, IP30

Dimensions: Fig. 1 TRP 20VA

Net/ gross weight: 0,67kg / 0,72kg [+/-0,1kg] TRP 20VA

Installation: installation bus TH/TS35 (DIN) or cheese screw x 4 (flat surface),

Supply voltage: 230 V/AC (-15%÷10%), 50Hz

Current consumption I: tab.1.

Output voltage U1 or U2: tab.1.

Rated power S: tab.1.

Rated output current I1 or I2: tab.1.

Short-circuit protection F: fuse tab.1.

Over-load protection t: fuse tab.1. / temperature limit fuse 130°C-non resetable

Operating conditions: 2nd environmental class, -10°C÷ 40°C, Ta 40 B

Declarations, warranty: CE, RoHS, 2 year from the production date

Remarks: leads on connectors AWG 24-12 2,5mm²,

with the adaptors

. AWO466 for TRP20VA

screw 2,9 x 9,5 - 4pcs.

Pulsar

Technical parameters of transformers

CODE

NAME

S U I U1 or U2 I1 or I2 F t

AWT053

TRP 20/12/14

20VA 230V/AC 0,12A 12V or 14V 1,6A or 1,4A T 200mA/250V 130

CODE: AWT 053 v 1.3/VIII

NAME: TRANSFORMER TRP 20/12/14

COM

FUSE

[130°C]

Tab.1

Tel. +48-14-610-19-40, fax: +48-14- 610-19-50, www.pulsar.pl, www.zasilacze.pl e-mail:sales@pulsar.pl

PAGE 1
Pulsar Transformers ® TRP series CODE: AWT 053 v 1.3/VIII NAME: TRANSFORMER TRP 20/12/14 I L FUSE I2 U2 F I1 U1 U U2 U1 t COM N [130°C] Tab.1 Technical parameters of transformers CODE NAME S U I U1 or U2 I1 or I2 F t AWT053 TRP 20/12/14 20VA 230V/AC 0,12A 12V or 14V 1,6A or 1,4A T 200mA/250V 130OC USE: The transformers are destined for supplying devices requiring AC voltage U1 or U2. TECHNICAL DATA Casing: Dimensions: Net/ gross weight: Installation: .
PAGE 2
Transformers TRP series Dimensions of transformers series: TRP 20VA 4,00 mm U2 U1 N 0 OUTPUT/SEC 62,00 mm 115,00 mm 124,00 mm FUSE 40 mm L INPUT/PRI TRANSFORMER TRP ss/xx/yy 62,00 mm 70,00 mm 72,00 mm Fig.1 Tel. +48-14-610-19-40, fax: +48-14- 610-19-50, www.pulsar.pl, www.zasilacze.pl e-mail:sales@pulsar.
