DC/DC 2,5A module of converter
DC/DC48250 v.1.0/II

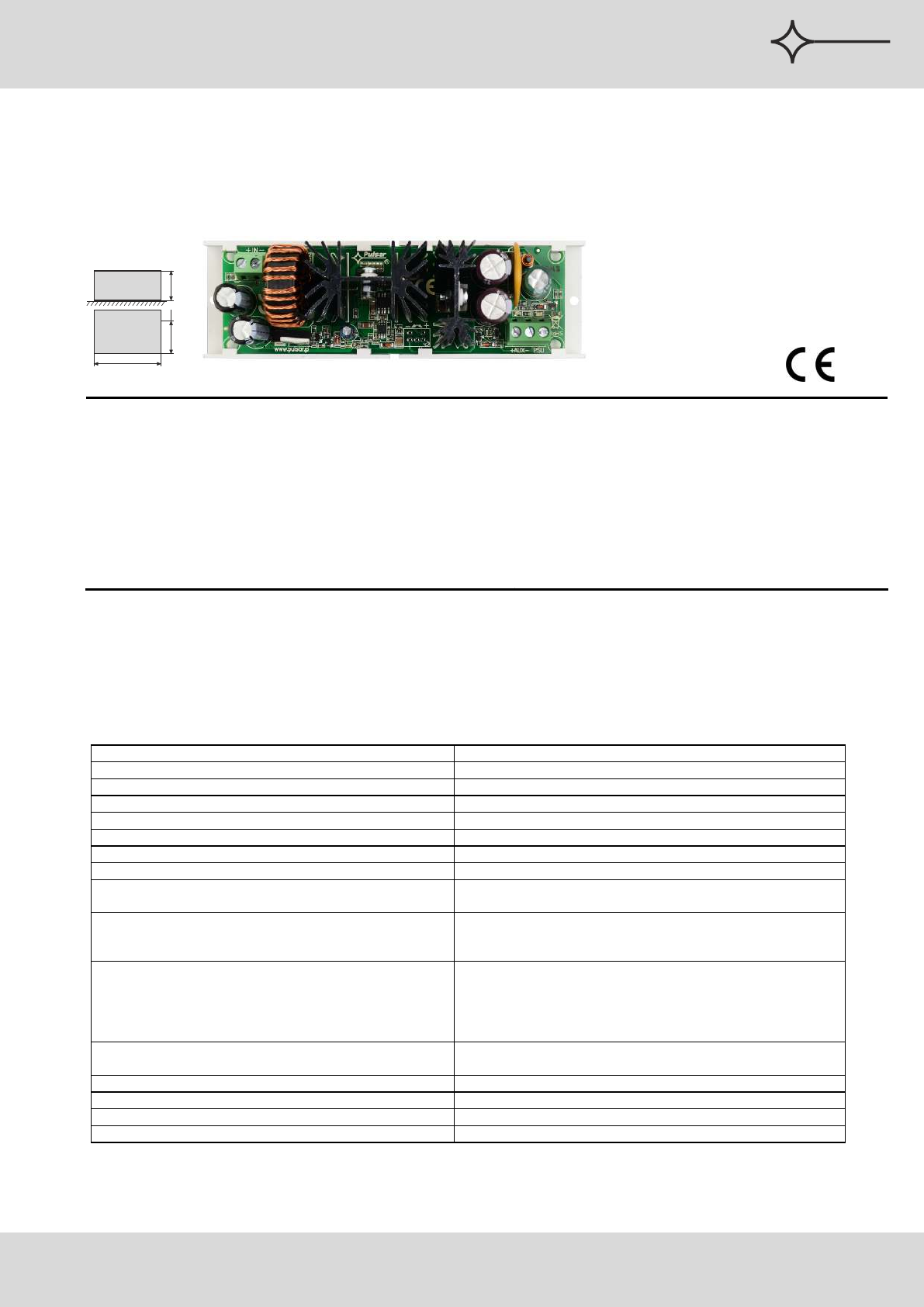

DC/DC 48V/2,5A Step up DC/DC converter
L
W
H
DESCRIPTION
The DC/DC 48V/2,5A (DC/DC48250) step up converter increasing the input voltage from the range between
18V÷28V DC to the voltage range of 48V DC at the output. The maximum load current is Imax=2,5A (Pmax =
120W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common
"ground" (0V) potential (IN- and AUX- terminals are galvanically connected = common terminal).
Pulsar
®
The module’s features:
· The step up DC/DC converter
· Example of use: increasing voltage from 24V to 48V DC
· The input voltage range: 18÷28V DC
· The output voltage range: 48V DC
· The maximum load current 2,5A (120W)
· The PSU technical output indicating converter failure
triggered by:
· Short-circuit of the output
· Output overload
· Protections:
· Short-circuit protection SCP
· Overload protection OLP
· High efficiency: 96%
· Optical LED indication
· Warranty – 2 years from the production date
· Mounting:
· Mounting strip with adhesive tape
· Mounting screws
The input voltage range (power supply)
18V÷28V DC
The output voltage range
48V DC +/- 1V
P module power
120W max.
Energy efficiency
94%÷ 96%
Output voltage range
48V DC +/- 1V
Ripple voltage
150mV p-p max
Output current
2,5A max.
Current consumption by module systems
25 mA max.
Short-circuit protection and overload OLP
110-150% of the module’s power, manual restart (the failure
requires disconnection of the DC output circuit)
Technical outputs
- PSU output indicating failure – overload or short-
circuit in the AUX output
- OC type, 50mA max. Failure status: hi-Z state (high
impedance), normal status: L level (0V)
Optical indication
- IN LED indicating DC power status
- AUX LED indicating DC supply status at the output
- PSU LED indicating failure - overload or short-
circuit in the AUX output
- red, normal status: is lit continuously
- green, normal status: is lit continuously
- red, normal status: does not lit, failure: is lit continuously
Operating conditions
II environmental class, -10°C ÷40°C, ensure air flow around
the unit for convection cooling
Dimensions
140 x 43 x 45 (L x W x H)
Net/gross weight
0,15/0,20 kg
Mounting
mounting tape or mounting screw x 2
Declarations, warranty
CE, 2 years from the production date
