PSA12005
PSA 12V/0,5A Plug-in type power supply for CCTV
PL
Edition: 9 from 22.01.2018
Supersedes edition: 8 from 01.04.2014
EN
Features of the power supply:
power output 0,5A/12VDC
*
universal AC input voltage range 90÷264V
high efficiency 74%
LED optical signalisation
standby power <0,3W
efficiency level: V
protections:
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
warranty – 2 year from the production date
1. Technical description.
1.1.General description.
Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12V DC.
The unit has a cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family,
the power supply unit can feed more cameras (max. 4 or 8). The unit is protected against short-circuit and overload.
1.2. Technical parameters.
Supply voltage
90 ÷ 264 V AC 50÷60Hz
Current consumption
0,07A@230VAC max.
Supply power
6W max.
Efficiency
74%
Output voltage
12V DC
Output current t
AMB
<30°C
0,5A – refer to graph 1.
Output current t
AMB
=40°C
0,3A - refer to graph 1.
Ripple voltage
100mV p-p max.
Short-circuit protection SCP
electronic, automatic recovery
Overload protection OLP
105-150% of power supply, automatic recovery
Optical signalisation
LED – presence of DC voltage
Operation conditions
temperature 0
o
C÷ +40
o
C
relative humidity 20%...90%, without condensation
Dimensions (LxWxH)
59 x 39 x 65 [mm]
Net/gross weight
0,07kg / 0,08kg
Protection class PN-EN 60950-1:2007
II (second)
Lenght of DC cable
1,45m + plug DC5,5/2,1 female
Storage temperature
-20ºC...+60ºC
* In order to extend the life of the power supply, the load current of 0,3A is recommended.

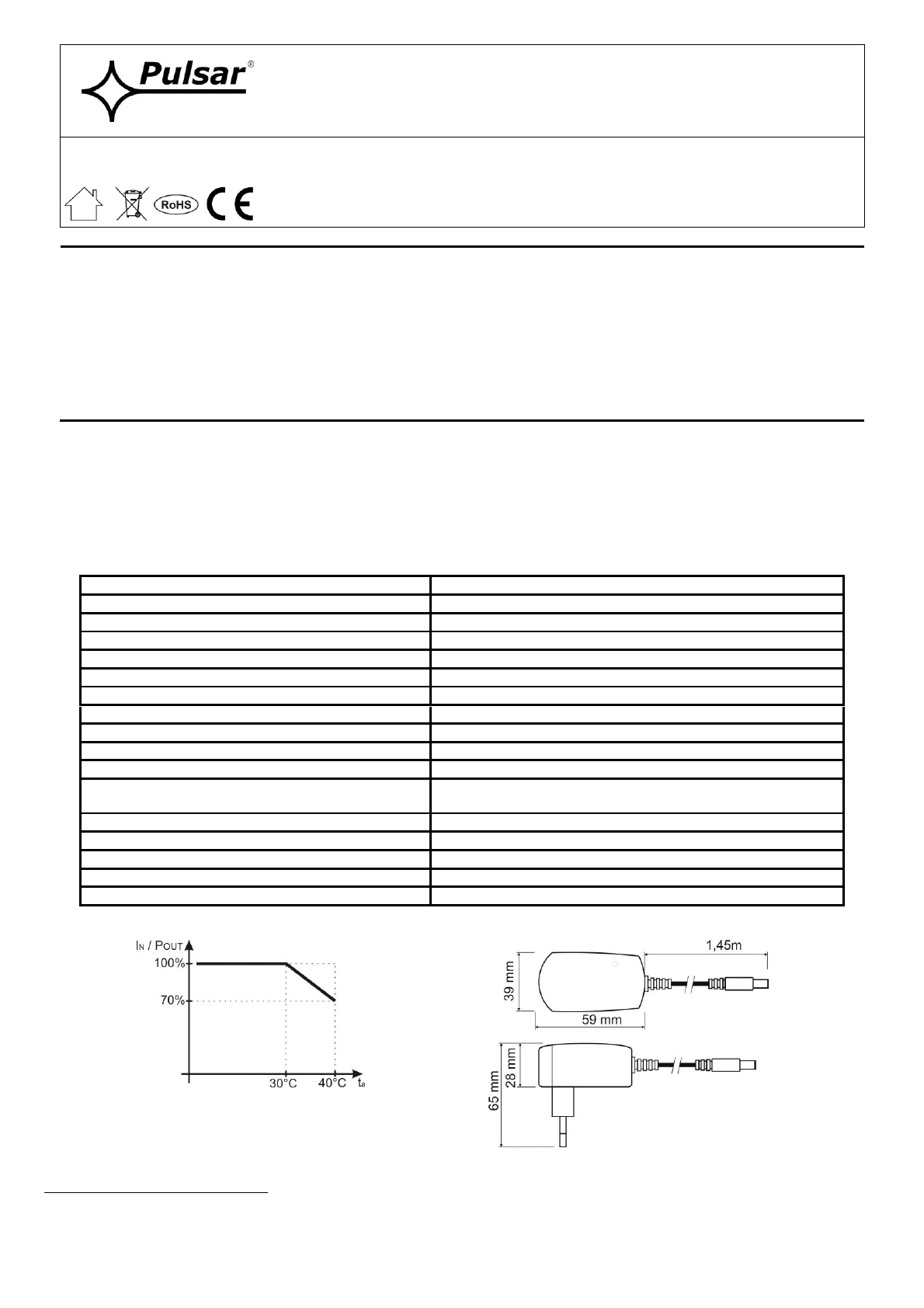

Graph 1. Relation between output current and
ambient temperature (instantaneous load).
Fig.1. Dimensions of power supply.
*
Refer to graph 1
