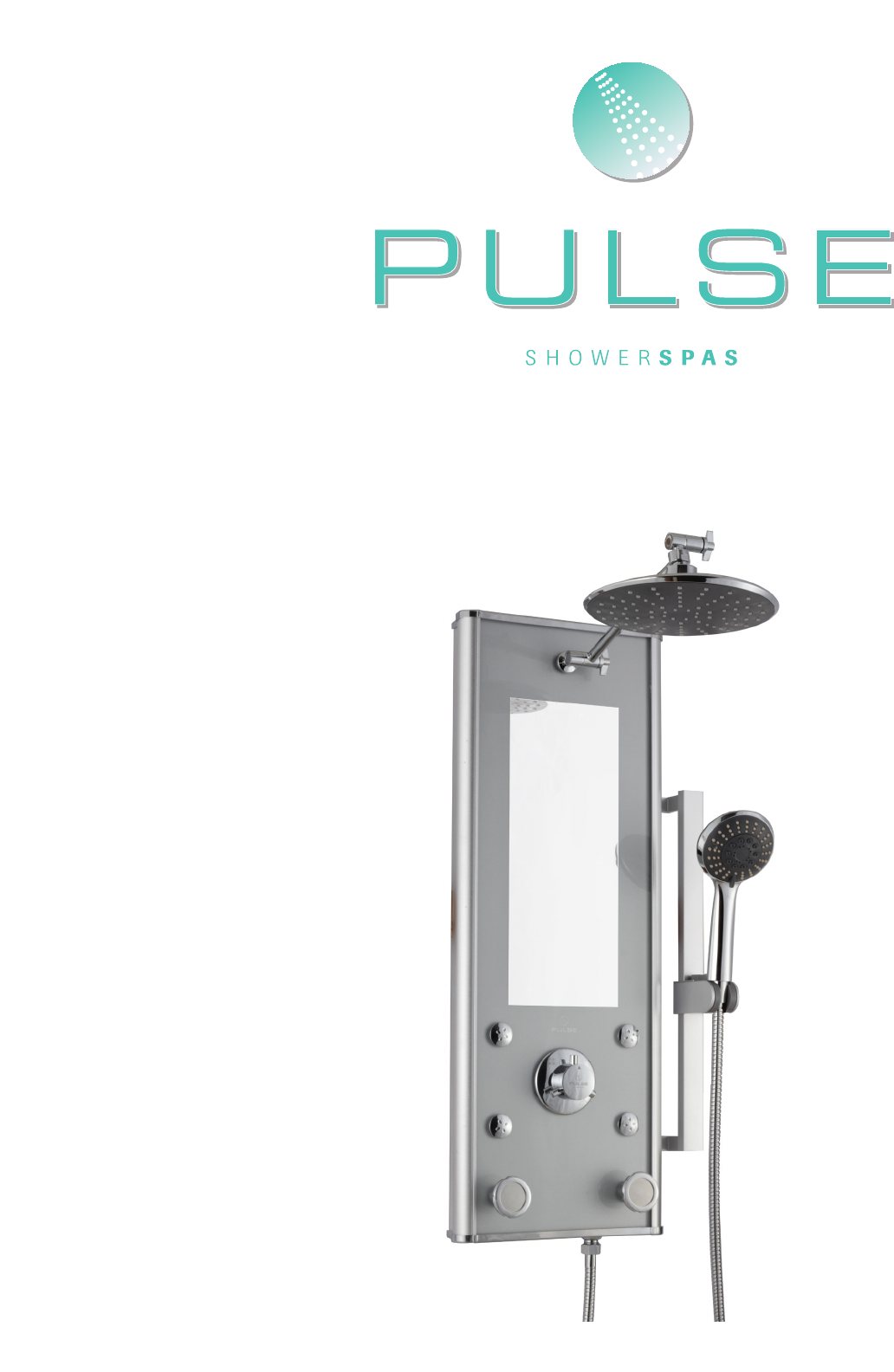

SHANGRI-LA Shangri-La ShowerSpa Model #1036 Owner's Manual
Shangri-La ShowerSpa Model #1036 Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
Product Dimensions 3
Parts Legend 1. 2. 3. 4. 5. 4 2"x1/2" NPT Brass Nipple Showerhead Shower Arm Slide Bar Bracket..................... (2) 6. 7. 8. 9. 10. Cap........................... (2) Hand Shower Hand Shower Holder Hand Shower Hose Machine Screw........ (4) 11. 12. 13. 14. 15. 16. Lock Washer............. (4) Rubber Washer........ (4) Wall Mounting Bracket Mounting Screw...... (2) Nylon Anchor...........
Assembly Some Assembly is Required Prior to Installation. Slide Bar Assembly Refer to exploded line drawing for reference. 1. Hold slide bar (4) with grooves facing away from you. Press button on hand shower holder (8) and place onto slide bar (4) with holder facing you and button on top. 2. With slide bar (4) facing you, align grooves on bracket (5) with grooves on back of slide bar (4). Screw holes on bracket (5) should extend to left side of bar. Insert bracket (5) until flush with opening.
Installation Retrofit – Existing Shower Replacement 1. TURN OFF WATER SUPPLY TO SHOWER. Ensure your hot/cold mixing valve is turned off. 2. Determine length of brass NPT nipple (1) needed: a. Place mark on existing shower arm at wall surface. Unscrew shower arm from elbow in wall. b. Measure distance from mark on shower arm to end of shower arm threads. Add ½" to this measurement, and then round to nearest ½".
Usage Brass Diverter The brass four-way Simple Select™ diverter allows you to easily select the function you desire. Simply rotate the diverter knob either direction to select desired function—showerhead, hand shower, top four misting jets, or bottom two Silk-Spray™ jets. Body Jets The Shangri-La ShowerSpa comes with six body jets . The top four are misting jets, designed to open facial pores with a unique stimulating sensation. The lower two Silk-Spray™ jets provide a soft and soothing saturation.
Manufacturer’s Limited Warranty PULSE ShowerSpas, Inc. warrants that all ShowerSpas are free from defect in workmanship and/or materials for a period of three years from the date of purchase. This warranty extends to the original purchaser only and is non-transferable.
