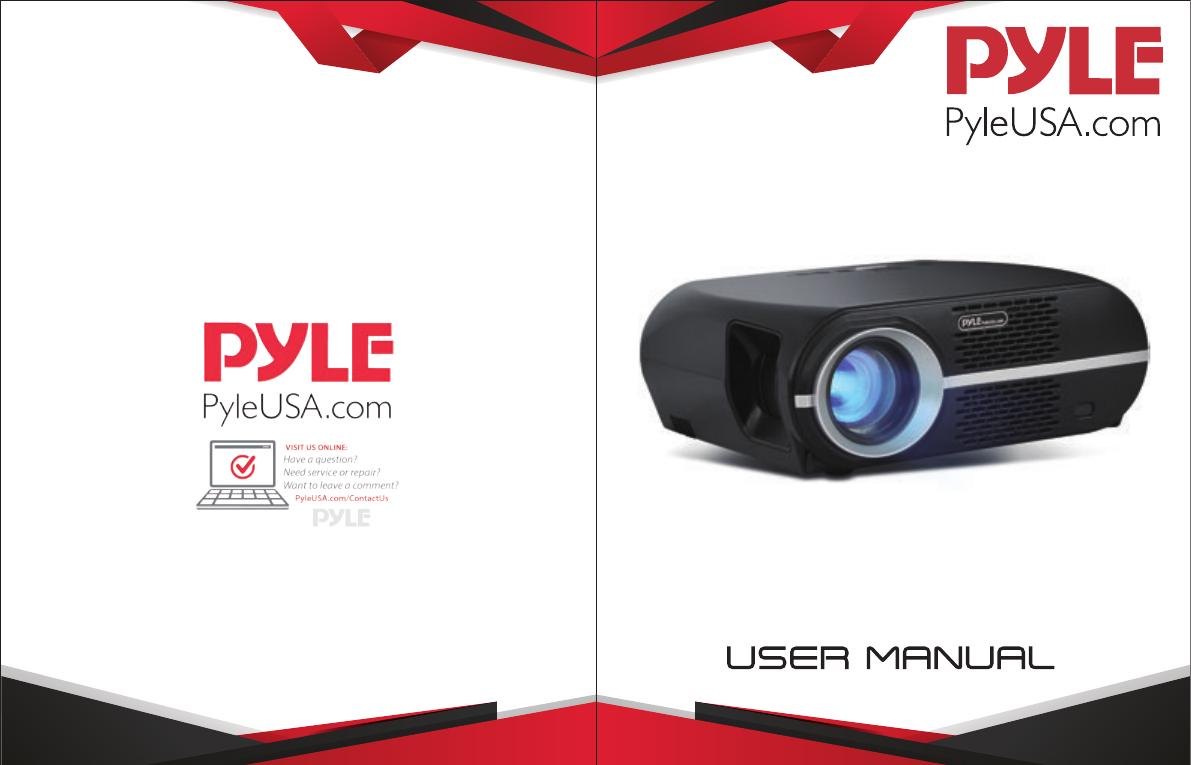

PRJLE67 Portable Home Theater Projector
PRJLE67 IMPORTANT Portable Home Theater Projector This Guide includes all the feature operations and troubleshooting necessary to install and operate your new PRJLE67 Portable Home Theater Projector. • Do not try to open Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference. There maybe differences due to updates.
HIGHLIGHTS 1. With this PRJLE67 Portable Home theater Projector, you can enjoy Movies, Sport, Videos, Pictures and more, like if you were watching a 120 inches dynamic image. 2. Plug your DVD or Blu-ray in one of the two available HDMI Digital inputs or send video from your computer via VGA port. You can use the AV input to plug another video player. 3. You can connect your USB Memory to the projector for your Multimedia Files. 4.
TOP PANEL B. HD IN Connection Left Volume - UP Return Menu Enter / OK C. VGA ( PC ) Connection Down Source ON / OFF Right Volume + INSTRUCTIONS CONNECTIONS Before making any connections, turn off all the input sources ( Blu-Ray, PC, video, game console ) and the projector. A. RCA ( AV ) Connection Use the 3.5mm cable to RCA ( included ) 6 www.PyleUSA.com D. USB Connection 7 www.PyleUSA.
E. Audio Connection Start Menu display when turned ON HOW TO USE ● This menu is only available for USB connection. Refer to the user manual to know the mode of use 1. How to turn on the device 2. Selecting the Input source Press the SOURCE button or press INPUT in the remote control and select with the navigation keys the desired input source. When turned on, the start menu will be shown ● Significant differences based on different versions. Different UI have different "Input Source" 6 www.PyleUSA.
3. Place the device into a stable surface and focus the image. Turn the lens until the image is clear. Some of the core product parameters will appear as icons as follows. For different models, different parameters are expressed. 4. Adjusting the volume using the portable projector. Using the remote control. 8 www.PyleUSA.com 9 www.PyleUSA.
