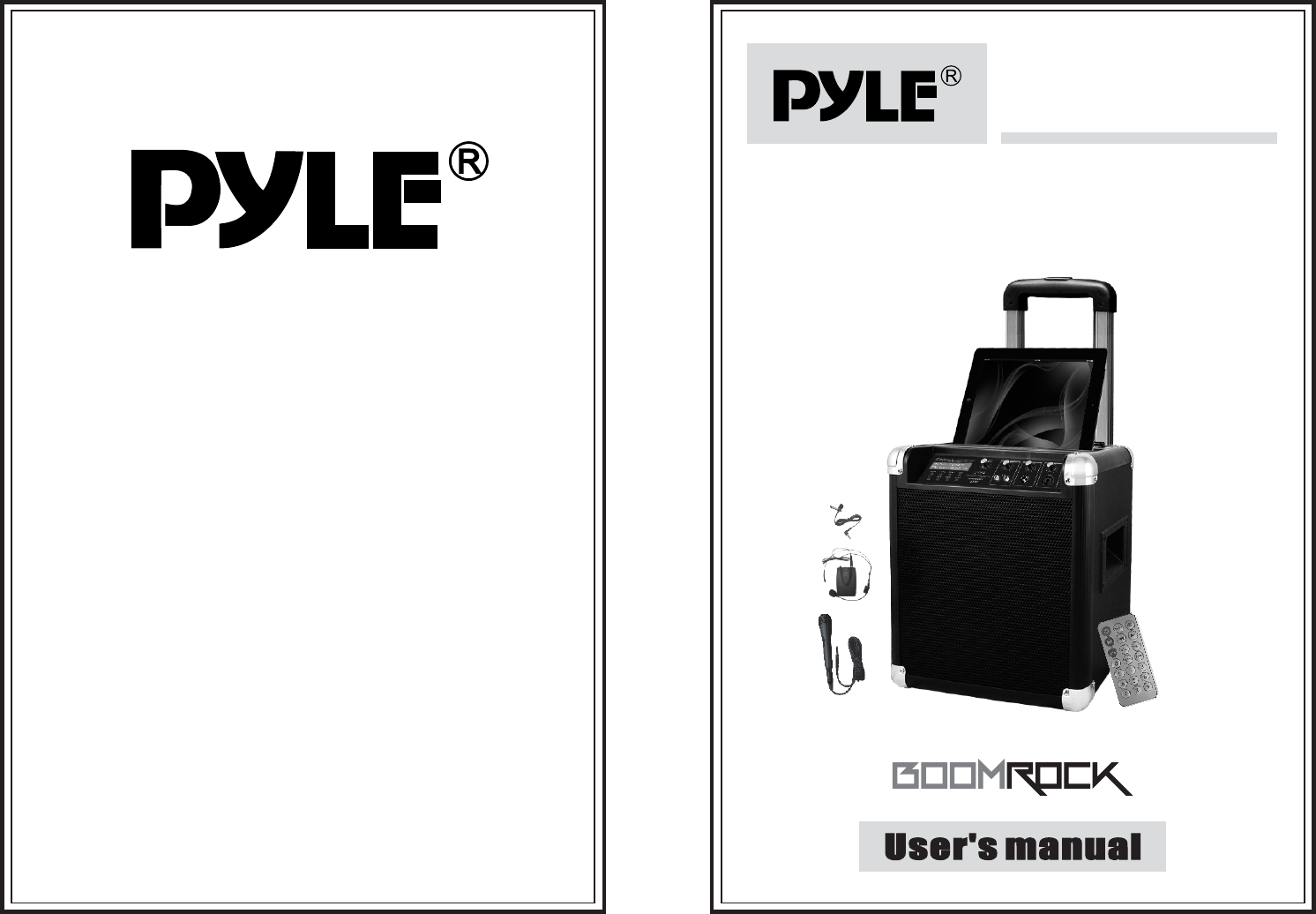

PCMX270B OPPERATING INSTRUCTIONS BOOM ROCK 10" Portable Speaker 400W w/AM/FM,BLUETOOTH,Ipad Holder, Three Mics,and Rechargeable Battery PyleAudio.com 718.535.1800 718.236.2400(fax) 1600 63rd Street, Brooklyn NY 11204 www.pyleaudio.
Panel design 1 Rear Panel design 2 3 4 5 1 2 3 4 6 7 8 9 5 AUDIO OUTPUT 6 10 7 11 8 12 9 13 1.Display screen 2.Master volume controller 3.Aux/USB/AM/FM/Bluetooth Volume Controller 4.Instrument/Microphone Volume 5.Microphone Volume 6.Input selectors 7.AM/FM selectors 8.Previous songs selector 14 15 16 9.Next song selector 10.Previous Radio Station 11.Next Radio Station 12.Play/pause For Usb/sd 13.Auto Scan For Radio Stations 14.Rca Input 15.1/4" Input 16.
Instructions Turning ON/OFF The PA speaker can be powered when connected to main power or using the internal 12V battery. 1.Connect the power cable to the top of the unit. 2.Connect the other end of power cable to main power. 3.Turn on the switch at the main power point. 4.The unit will automatically power on when connected to main power. Notes: If you wish to use the internal battery to power the unit, just simply turn on the Battery switch located on the top of unit to ON.
2. Insert your USB or SD card into the slot. 3. Once inserted the USB or SD card unit will automatically play. 4. You can use the PRE/NEXT/PLAY/PAUSE to control and play music. NOTES: The speaker system can play the following audio file formats: MP3,MP4,WMA.The USB/SD Card no more than 32GB. Operation may be slower when searching large memory files. It will need several seconds to respond when your USB/SD Card full of contents.
