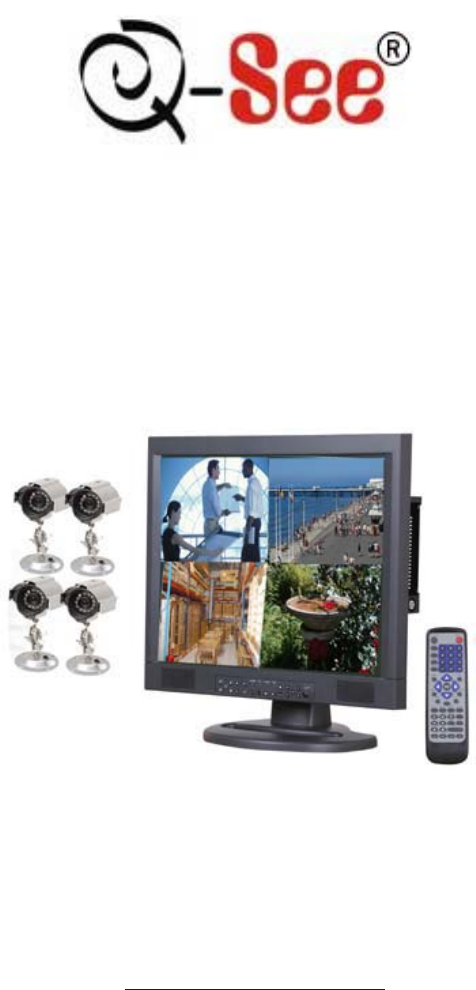

QT17D324SC User’s Manual Contact Us: Q-See Products 8015 E. Crystal Dr Anaheim, CA 92807 Website: http://www.q-see.com Customer Service: Phone: 877-998-3440 x 538 Email: cs@dpsi-usa.com Tech Support: Phone: 877-998-3440 x 539 Email: ts@dpsi-usa.
QT19D328SC User’s Manual Table of Contents Important Safeguards…………………….………………………………………………………..3 Chapter 1 Product Information……………………………………………………………………4 1.1 Product Description……………………………………………………………..……….4 1.2 Product Features…………………………………………………………………………4 Chapter 2 System Installation…………………………………………………………………..…5 2.1 Installing the Hard Drive……………………………………………………………..…..5 2.2 Rear Panel Layout………………………………………………………………………..5 Chapter 3 System Operation………………………………………………………………..……..7 3.
QT19D328SC User’s Manual IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECT RIC SHOCK,DO NOT REMOVE THE BACK. NO USER SERVICEABLE PARTS INSIDE.
QT19D328SC User’s Manual 10．Safety Check: Upon completion of any service or repair to this monitor, ask the service technician to perform safety checks to determine that the monitor is in proper operating condition. 11．Retain Instructions: The safety and operating instructions should be retained for future reference. Chapter 1 Product Information 1.1 Product Description This product is a four channel digital monitoring product that is specially designed for the security industry.
QT19D328SC User’s Manual RS-485 interface on the system can be used to control P.T.Z cameras with various communication protocols. VGA output supports 720×480, 1280×720 and 1920×1080 Resolution modes，better quality picture can be attained by using progressive scanning. Supports file backup to IDE hard drive. Equipped with USB2.0 port which can be used for backup to your PC or laptop directly from the DVR hard drive. Chapter 2 System Installation 2.
QT19D328SC User’s Manual AUDIO IN：One Channel left/ One Channel right audio input AUDIO OUT：One Channel left/ one Channel right audio output VGA：One Channel VGA terminal input 6
QT19D328SC User’s Manual Chapter 3 System Operation 3.1 Layout of Front Panel and Remote Control 3.1.1 Front Panel POWE R H.D. ALARM NET IR Buttons on front panel and their functions: ① Indicating light area NET：indicating light for network activity ALARM：indicating light for alarm activity The alarm light will be on once the alarm is started（no matter what kind of alarm it is for） H.D. ：Indicating light for Hard Drive activity The light turns on when Hard Drive reads and writes data.
QT19D328SC User’s Manual ：Right Directional button 【 】button：for confirmation，choose the menu items, and press this button to enter into the selected sub-menu；Pressing this button can display the real time of the system when playing back recordings. Functional Buttons Area 【 】Button：Main Menu, used for setting each function of the system. 【 】Button：Play the existing recordings on the hard drive. 【 】Button：Search button，used for checking recorded information on the hard drive.
QT19D328SC User’s Manual 3.1.
QT19D328SC User’s Manual LOGI N/ LOCK POW ER ON PLAYBACK 1 2 3 4 5 6 7 8 9 + 0 QUAD PARAMETER ANALOG ZOOM+ ZOOM- FOCUS- FOCUS+ EXI T AUTO RECALL PRESET SWI TCH PLAY SLOW CF FWD REV NET RECORD STOP F1 F2 SET UP F3 Buttons on Remote Control and Their Functions: 10 F4
QT19D328SC User’s Manual ① Digital Button Area 【0-9】Button：Digital buttons，used for digital input or video switch，when in quad mode, press 1,2, 3, 4 digit buttons to switch the picture output between the first, second, third and forth video channels.
QT19D328SC User’s Manual displayed frame by frame，press【Play】button to return to normal speed； 【FWD】Button：Play fast forward through the playback video，at the speed of 2x, 4x times，press【Play】 Button to return to normal speed； 【REV】Button：Play fast backward through the playback video，at speed of 2x, 4x times，press【Play】Button to return to normal speed； ⑤ Other function buttons 【POWER/ON】Button：for turning the machine on and off（Standby and start） ； 【LOG IN/LOCK】Button：get the operating rights，to type in t
QT19D328SC User’s Manual the system； 【F1】Button：For pick time play on the recorded pictures； 【F2】Button：Press this button to enter into the control menu for PTZ cameras when under the single channel mode.
QT19D328SC User’s Manual Note: If time recording has been setup on this machine，and power is connected during this period, then the machine will start and enter into quad mode directly without needing to press【on/off】button again to start the machine. If the channel numbers and time are not being displayed, please press【ENTER】 button on the remote control unit or panel, and the channel numbers and time will be displayed on the screen.
QT19D328SC User’s Manual want to turn off the system， the system will change into standby mode from running mode when it is off；If you want to restart the system, please press the 【on/off】button on the remote control. 3.3 Using the System When the system is running, press 【setup】 button to enter into the OSD main menu.
QT19D328SC User’s Manual b). Machine’s device number: Use can use numbers from “000” to “999”. Machine’s device number has been preset to “000” at the factory. You need to input this number when the system is running. c). Machine’s address: Manually enter the machine’s address here (optional). Machine address could be the address of the place being monitored thru this system. Move the cursor to the “address” line and press enter to enter the address and press enter again when finished.
QT19D328SC User’s Manual Blink the video from the camera will still be recorded. 3.3.3 Alarm Set Alarm/Timing Setup Port Alarm Mode Timing Setup 1 On Close Record Delay: 030 2 On Open Output Delay: 010 3 Off Close Buzzer Duration: 000 4 Off Close I/O Alarm Out: On Motion Alarm Out: On a). Terminal Port: 1,2, 3, 4 represent the 4 outer I/O alarm input ports. b). Alarm：Two choices are On or Off. Users have the option to turn on /off alarm for each channel c).
QT19D328SC User’s Manual I. Setting the recording time: Press Setup for each channel under “Schedule” to setup the day (Mon-Sun), Time of First Segment, recording mode (Time, Alarm or motion) Time of Second Segment, and type of recording mode. There are 2 segments of recording to accommodate recording overnite. For example, if you start recording at 11:30pm on Monday and stop at 11:00am on Tuesday, the first set will be 11:30pm to 11:59pm and the second set will be 12:00am to 11:00am. II.
QT19D328SC User’s Manual Troubleshooting: When Pan/Tilt/Zoom does not operate normally, Please check RS-485 connection and Pan/Tilt/Zoom setup. 3.3.6 Network Set Move the cursor to Network Set and press Enter to get into the system’s network setup menu. See picture below: Network Setup IP Address: 192.168.001.200 Subnet Mask: 255.255.255.000 Default Gateway: 192.168.001.001 Bandwidth: Setup Video Port: 08080 Web Port: 08100 Return a).
QT19D328SC User’s Manual Search Menu Playback All Record Log Record Status HDD Status Machine Info Exit a). Playback All Record: Use this option to search for recordings by record type (All, Timing, Alarm) and Date/Time. Date Time: Move cursor to this selection, and directly input the date and time, based on the recording date and time you want to playback; Now press [START] to see the available recording for that duration.
QT19D328SC User’s Manual Type: includes all events recording mode, alarm mode, motion detection and operation mode; select the type of event you want, or select All Events and click start, the screen below will be displayed: Log Search: All Events 06-17 12:20 Motion Detect 1 06-17 01:00 Parameter Set 5-01 06-17 02:15 Video Loss 2 Return PageUp PageDown c). Record Status: Current Recording Settings on the system.
QT19D328SC User’s Manual 2）Status: video status: Record/Idle 3）Image Quality: displays video record quality 4）Frame rate: displays video recording frame rate 5）Alarm: setting status alarm/disarm alarm two 6）Motion detection: turn on/ turn off. d). HDD Status: By moving cursor to [HDD Status] option, and pressing the [ENTER] key you will enter into the hard drive status information, this window will display current hard drive status, including total capacity and remaining space.
QT19D328SC User’s Manual 3.3.8 Basic Set By moving the cursor to [Basic Set] option and pressing the [ENTER] key will take you to the basic setup screen: Basic Setup Record Settings: Setup Buzz Settings: Off Language Settings: English Fastigium Settings: On Record Bag Settings: 30 minute USB Settings: Setup Video Spot Settings: 05 Second Return A).
QT19D328SC User’s Manual will start a new file. C) USB Settings: Select Setup and press the Enter button. You will have two options, Disable and Enable. Select Enable to active the USB port. After you select this option on press Enter the DVR will restart. After enabling the port you can connect the USB 2.0 port on the DVR to a USB 2.0 port on a PC you will be able to back up the files from the hard drive on the DVR to the hard drive on the PC.
QT19D328SC User’s Manual Video Display Single picture, built-in quad display PAL system: 25 frames/second CCIR625 lines 50 fields Video Standard NTSC system: 30 frames/second CCIR625 lines 50 fields Real time recording resources, one or four channels can play backward at the same System Resources time；one or four channel monitoring, network real time monitoring Audio Input Two channels independent input 600Ω RCA Audio Output Two channels independent output Basic Output Gain 1.0-2.
QT19D328SC User’s Manual Alarm input Four channels alarm in（On/off value）input independently Alarm Input options Open/ close circuit One channel linkage alarm output，one channel power trouble alarm output，one channel other trouble alarm output Alarm Output Relay on/off value：1A 120VAC/24VDC，longtime on/off optional Other Ports PTZ Port RS485 Serial Port RS232 universal serial interface Network Port RJ-45 10M/100M Ethernet interface Network Transport protocols Support TCP/IP Network Transport
QT19D328SC User’s Manual Effective Pixels 510x492 NTSC Field of View 42° for 6mm, 74° for 3.6mm Connectors BNC (F), 12VDC 2.1mm (F) Minimum Luminance 0 Lux Infrared LEDs/Distance 12/30ft IR LED Wavelength 850nm Video Output 1 Vp-p75 ohm Electronic Shutter Speed 1/50 (1/60)-1/100,000sec Audio Output None S/N Ratio >48dB Gamma Characteristic 0.45 Power Supply 12V DC Power Consumption 120mA (300mA Max with LEDs on) per camera Operating Temperature -4°F to 122°F Dimensions 2.
QT19D328SC User’s Manual (1) Equipment damage caused by improper operation (2) Improper environment and conditions in/on which the equipment operates, e.g., improper power, environment temperature, humidity and lightening strike etc. that cause equipment damage. (3) Damage caused by acts of nature: earthquake and fire etc. (4) Equipment damage caused by the maintenance of personnel not authorized by our company. (5) Product sold over 12 months ago.
Customer Information Card You’s Name Mr./Mrs. Company Name Postal Address Postal code Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor The material in this document is the intellectual property of our company. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our company’s prior written permission. 1.
