Installation manual

Page 8
All QHT BIASI B10 Series Boilers are shipped from the factory in assembled
boiler blocks. If, however, the block needs to be split into sections for ease of
delivery, please read the following:
To assemble split blocks, move sections into parallel and facing each other.
Sections may be slid along boards placed underneath the sections. Inspect nipple
ports for damage or burrs. Remove any burrs by scraping the port very lightly. Wipe
the push nipples and nipple ports with a clean cloth. Apply a film of nipple compound
to both the nipple and port. Install the nipple in the port and then seal by hitting with
a hammer cushioned with a block of wood. Apply section sealant to one section only
and slide sections together. Install the four draw rods and draw the sections together
evenly (measure with yardstick). Draw the sections together until sections make
iron-to-iron contact at a point around the top and bottom ports of each section.
DO NOT OVER TIGHTEN DRAW RODS
NOTE: When cutting off excess length of draw rods, allow enough length to install
boiler jacket on the draw rods.

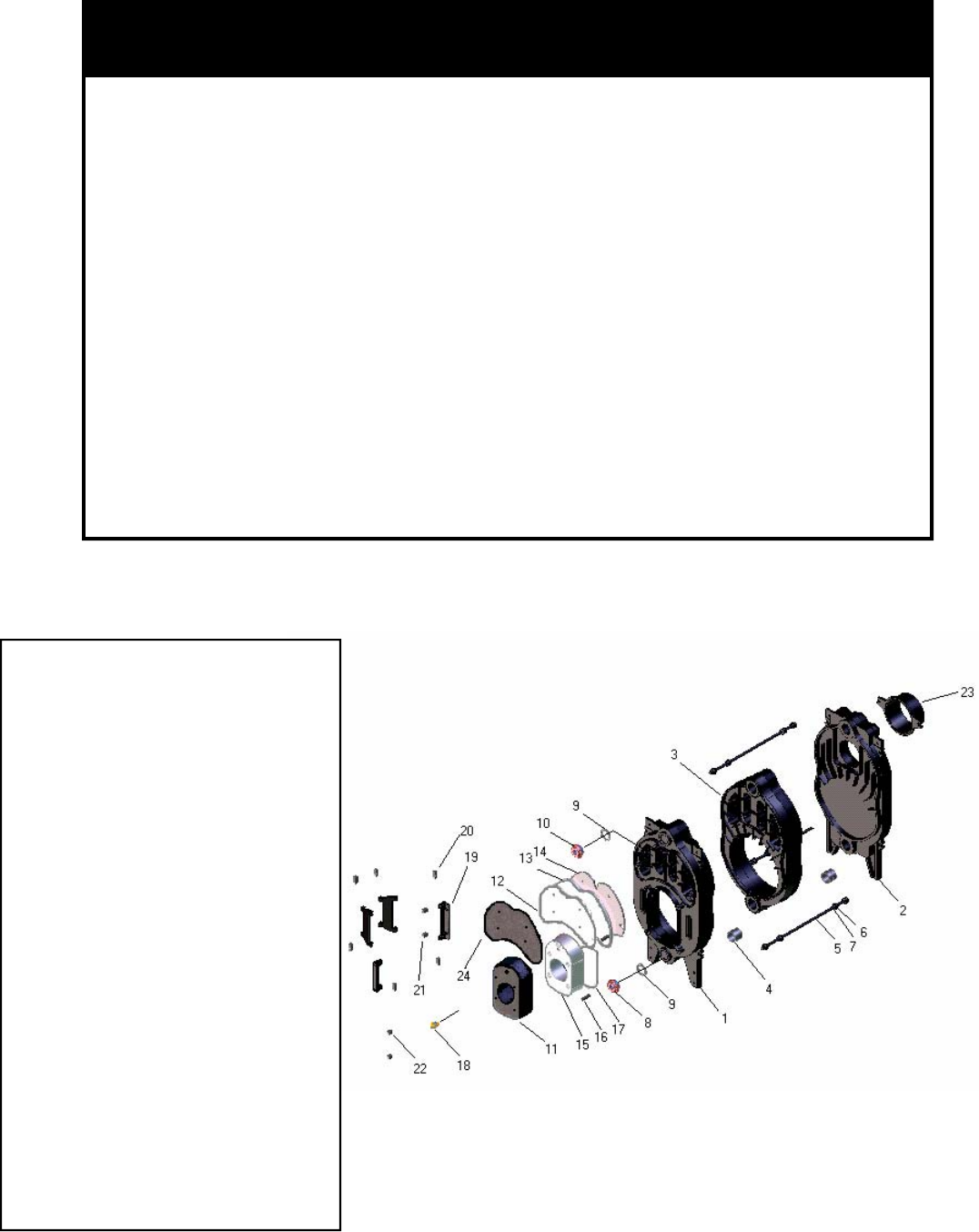

2. Boiler Block Assembly
Boiler Components & Parts
BIASI B - Series
Boiler Block Assembly:
1 Front Section
2 Rear Section
3 Intermediate Section
4 Steel Push Nipples
5 Tie Rod
6 Tie Rod Nut
7 Tie Rod Washer
8 1 1/2" X 3/4” Bushing
9 Plug gasket
10 1/2" X 1 1/2" Bushing
11 Boiler Swing Door
12 Front Door Upper Insulation
13 Front Door Upper Gasket
14 Front Door Upper Plate
15 Front Door Lower Insulation
16 Front Door Stud (Qty 7)
17 Front Door Lower Gasket
18 3/4" Plug (Sight Hole)
19 Boiler Door Hinge (4 pieces)
20 Hinge Pin (Qty 6)
21 Boiler Body Hinge Bolts (Qty 2)
22 Door Hinge Mounting Bolts (Qty 2)
23 6 inch Boiler Breeching
24 Upper Front Fixed Door
