A Marley Engineered Products Brand

ASSEMBLY INSTRUCTIONS & PARTS MANUAL

CEILING FAN GUARDS

MODELS: 2800-1 AND 2800-2

Description

The Leading Edge ceiling fan guards are designed to be

used with Leading Edge Commercial/Industrial ceiling

fans. This guard is strongly recommended for use on

fans located in any area where there is a possibility of

objects larger than 3” being thrown into the fan. This

ceiling fan guard is suited for school gymnasiums,

indoor arenas and other public areas. Each unit

consists of 8 (eight) sections, guard, clamp, brace, and

assembly hardware. The guard has a galvanized finish.

General Safety Information

NOTE: Ceiling fan guards to be used in conjunction

with specified fan models only: 52” guard - 3620-1,

4820-1, and 62” guard - 5600-1LC, 5631-1R, 5610-1,

5600-1, 5601-1, 5600-7, 6000-1, 6001-1, 6010-1.

1. Care should be taken to ensure that power source to

fan is locked off before guard is installed so that the

fan creates no hazard to installer.

2. Make sure hanger hooks are mounted securely to

structural ceiling members and must support 150

pound load limit.

3. Make sure guard is securely in place before placing

fan into operation.

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THE PRODUCT

DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO

COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Maintenance

WARNING: MAKE CERTAIN THAT THE POWER

SOURCE IS DISCONNECTED BEFORE ATTEMPTING

TO SERVICE OR DISASSEMBLE ANY COMPONENTS!

IF THE POWER DISCONNECT IS OUT OF SIGHT,

LOCK IT IN OPEN POSITION AND TAG TO PREVENT

APPLICATION OF POWER.

CLEANING

This fan guard may be wiped off with a damp cloth. If

already installed on ceiling fan, do not allow the fan

motor to get wet. Do not use solvents or harsh

detergents.

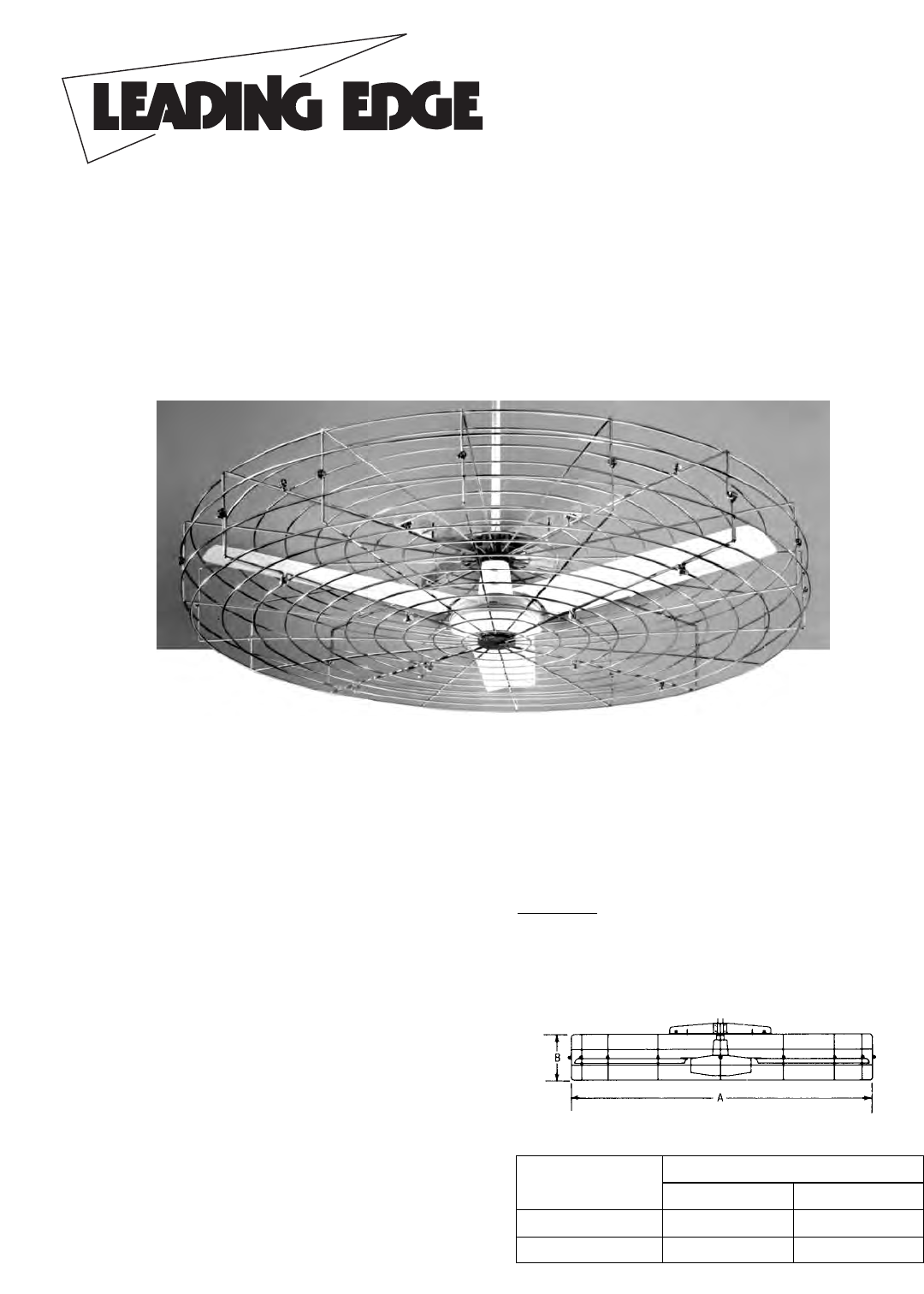

Figure 1

Dimensions

MODEL

NUMBER

DIMENSIONS

2800-1

2800-2

62”

52” 10

”

Figure 2

Summary of content (4 pages)

PAGE 1
® A Marley Engineered Products Brand ASSEMBLY INSTRUCTIONS & PARTS MANUAL CEILING FAN GUARDS MODELS: 2800-1 AND 2800-2 READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
PAGE 2
Installation 1. Place three guard bottom sections on flat surface (floor) and connect together in 3/4 circle using enclosed 11/8” bolts, washers, lockwashers and 5/16” nuts. (See Figure 3) 3. With three sections assembled, place 1/2 of guard clamp brace on top section and bolt to top of guard. Figure 3 - Assemble Bottom Section Figure 5 - Assemble Clamp Brace 2.
PAGE 3
5. Hang fan from factory supplied “J” hook at the beam. (See Figure 7) 7. IMPORTANT: After fan guard is completely assembled and mounted, securely attach the “secondary support” cable to or around any structural member that will support 300 pounds as indicated in Figure 9 Figure 7 - Hang Fan & Guard Figure 9 - Attach “Secondary Support Cable” 6. Install last quarter section of fan guard as in item two above and attach guard to clamp.
PAGE 4
Replacement parts List REF. NO. HOW TO OBTAIN WARRANTY SERVICE AND WARRANTY PARTS PLUS GENERAL INFORMATION 1. Warranty Service or Parts 2. Purchase Replacement Parts 3. General Product Information QTY. 8 8 28 56 28 28 4 8 4 4 2 2 2 2 2 2 2 2 2 4 1 4 1-800-642-4328 1-800-654-3545 www.marleymep.com 470 Beauty Spot Rd. East Bennettsville, SC 29512 USA Note: When obtaining service always have the following: 1. Model number of the product 2. Date of manufacture 3. Part number or description PPD021 Part No.
