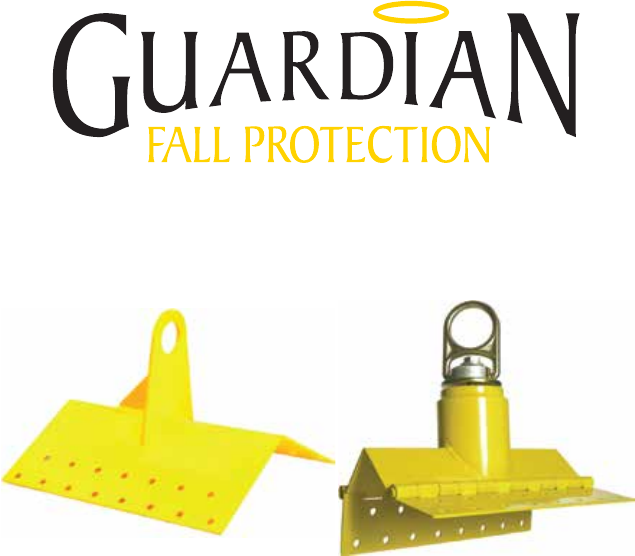

Product Name: Skyhook Anchor Part #: 00300; 00310; 00320; 00330; 00340; 00342 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 6305 S. 231st St.
Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection. Applicable standards and regulations depend on the type of work being done, and also might include state-specific regulations. Consult regulatory agencies for more information on personal fall arrest systems and associated components.
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 6305 S. 231st St., Kent, WA 98032 Guardian Fall Protection Safety Information ! WARNING Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. Do not misuse equipment.
Prior to EACH use, all equipment in a fall protection system must be inspected for any potential or existing deficiencies that may result in its failure or reduced functionality. IMMEDIATELY remove equipment from service if any deficiencies are found. Equipment must be inspected by a Competent Person at least every six months. These inspections must be documented in equipment instruction manual and on equipment inspection grid label.
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 Repairs to Skyhook Anchors can only be made by a Guardian Fall Protection representative or an entity authorized by Guardian. Contact Guardian for all maintenance and repair needs at: 1-800-466-6385. If a Skyhook Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Cleaning after use is important for maintaining the safety and longevity of Skyhook Anchors.
Personal Fall Arrest: Skyhook Anchors may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if used in combination with equipment explicitly certified for such use. Applicable D-ring: Dorsal. Restraint: Skyhook Anchors may be used in Restraint applications.
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 6305 S. 231st St., Kent, WA 98032 Guardian Fall Protection Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or an obstruction. When calculating fall clearance, account for a MINIMUM 3’ safety factor, deceleration distance, user height, length of lanyard/SRL, and all other applicable factors.
Two or more snap hooks or carabiners connected to each other. NO. Connector directly to webbing. NO. Two connectors to same D-ring. NO. Incompatible or irregular application, which may increase risk of roll-out. NO. 8 Application that places load on gate. NO. Connector directly to horizontal lifeline. NO. www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 Connector to integral lanyard. NO. 6305 S. 231st St., Kent, WA 98032 Connector closed and locked to D-ring. OK.
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 Correct Anchorage Positioning: This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart.
Materials: phone: (800) 466-6385 fax: (800) 670-7892 #00342: Powder-coated steel and Zinc-plated steel Connection Point Fastener Installation Holes (30 total, 15 per side) See the following for applicable roof pitches for Skyhook Anchors: #00310 #00300 28.00° 28.00° Pitch: Flat. Pitch: 1/12 - 3/12. #00320 #00330 54.00° Pitch 4/12 - 6/12. 6305 S. 231st St., Kent, WA 98032 #00300, 00310, 00320, 00330, 00340: Powder-coated steel www.guardianfall.com Components and Specifications #00340 90.
www.guardianfall.com phone: (800) 466-6385 fax: (800) 670-7892 6305 S. 231st St., Kent, WA 98032 Guardian Fall Protection Installation and Use MINIMUM substrate requirements: Wood: 3/4” CDX. Metal: 20g. Concrete: 6” (2,000 p.s.i. or greater). Skyhook Anchor MUST install flush against substrate. 1. Determine desired location for anchor; ensure location is free of debris, rot, decay, cracking, and hazardous materials.
If removing and reinstalling a Skyhook Anchor, fully inspect the anchor according to instruction inspection specifications. DO NOT reuse if any signs of damage or defects are found. ALWAYS use new fasteners for each new installation application. Skyhook Anchor Horizontal Lifeline Systems: 1. Skyhook Anchors may be used to facilitate a cable Horizontal Lifeline, for use by up to 4 workers in fall restraint, OR 1 worker in fall arrest. Restraint applications allowed only on pitches up to 4/12. 2.
#00300: Prior to use, read and understand all instructions provided with equipment at time of shipment from manufacturer. Prior to use, read and understand all instructions provided with equipment at time of shipment from manufacturer. Skyhook Anchor Part #: 00300 Date of manufacture: Capacity range: 130-310 lbs. (including all equipment) Materials: Powder-coated steel. 90045 (Rev. A) www.guardianfall.com Compatible roof pitch: flat. Compliant with all OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.
This inspection log must be specific to one Skyhook Anchor. Separate inspection logs must be used for each Skyhook Anchor. All inspection records must be made visible and available to all users at all times. If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE. Guardian Fall Protection Notes www.guardianfall.com Date of First Use: __________________. Product lifetime is indefinite as long as it passes pre-use and Competent Person inspections.
