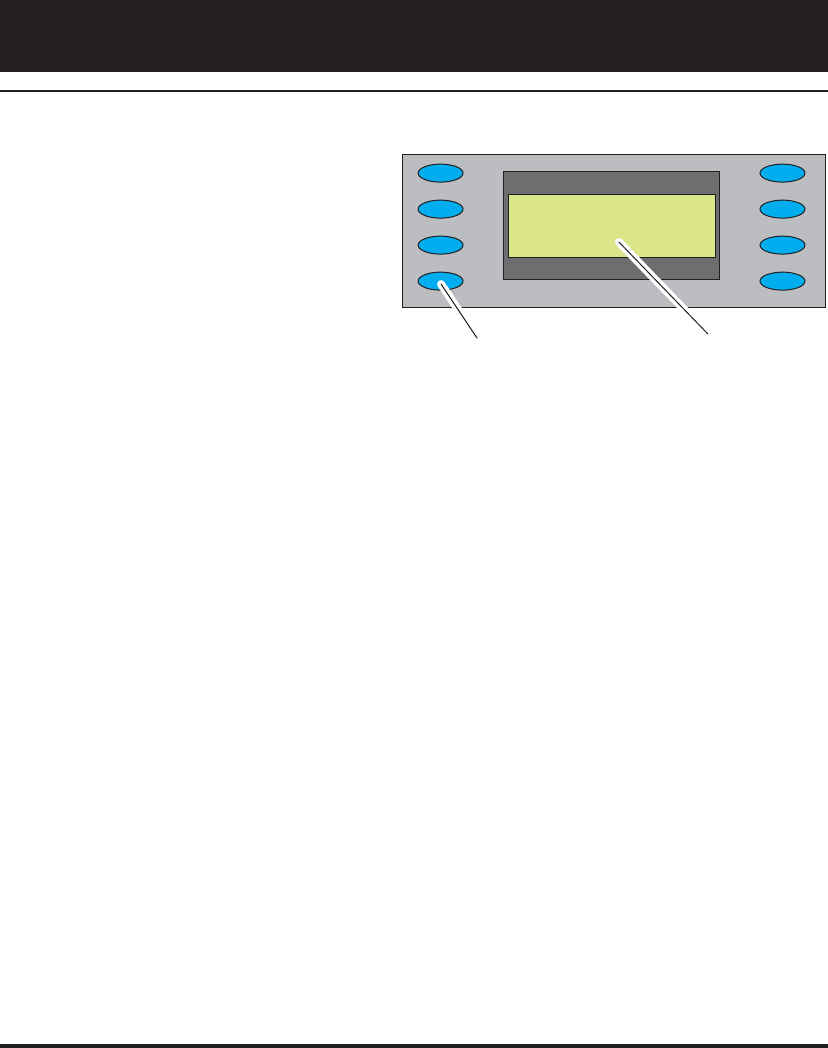

_______Reading
_____Monitor EDID
_______COMPLETE
Details
Show details of EDID
after successful read
back from display
under test
Complete indicates EDID
data was read back
correctly.
Failed indicates unable to
read back valid EDID data
Learn Monitor
If the generator is connected to a VESA DCC-
compliant display, press the Learn Monitor
button to view formats supported by both the
display and generator.
To view the format names, select the Details
option after the generator completes reading
the EDID (Extended Display Identification Data)
data. The display’s EDID data may include
non-VESA formats, which are not listed.
You cannot select formats from this list, but the
DDC Step feature can be used to test the listed
formats (page 13).
Detecting Formats Supported by a Monitor
