Quanum RC-216R FPV receiver

2.4GHz 16 Channel Diversity Receiver

User manual

- Operating frequency 2,370-2,510 GHz

- Total number of channels – 16 (2 bands x 8 channels)

- Sensitivity – better than -106 dBm

- Video format supported: NTSC/PAL

- Modulation – FM

- Number of independent receivers – 2

- Number of antenna inputs – 2

- Antenna connectors – SMA, jack

- Antenna impedance: 50Ω

- Display – OLED 64x128 dual color

- Video impedance: 75Ω

- Control – navigation Joystick

- Supply voltage – 6…18VDC, 1.3 x 3.5mm DC jack

- Power consumption – 150mA at 12VDC

- Dimensions – 75x62x17mm

- Operating temperature 0C…+40C

Frequency chart:

FR1(A band) 2410,2430, 2450,2470,2370,2390,2490,2510,

FR2(B band) 2414,2432,2450,2468,2411,2433,2453,2473

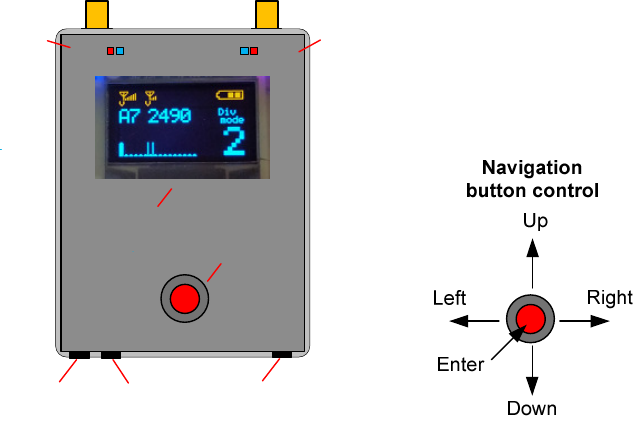

Connectors and controls:

AV1 AV2

Ant1 Ant2

Power IN

6..18VDC

Navigation

button

LED2LED1

RedRed Blue Blue

OLED

display

Ant1, Ant2 – SMA antenna connectors. The receiver can work with 50R 2.4GHz

antennas. Any type of antenna can be used – helical, clover leaf, dipole etc.

Summary of content (6 pages)

PAGE 1
Quanum RC-216R FPV receiver 2.4GHz 16 Channel Diversity Receiver User manual - Operating frequency 2,370-2,510 GHz Total number of channels – 16 (2 bands x 8 channels) Sensitivity – better than -106 dBm Video format supported: NTSC/PAL Modulation – FM Number of independent receivers – 2 Number of antenna inputs – 2 Antenna connectors – SMA, jack Antenna impedance: 50Ω Display – OLED 64x128 dual color Video impedance: 75Ω Control – navigation Joystick Supply voltage – 6…18VDC, 1.3 x 3.
PAGE 2
AV1, AV2 – AV outputs. Impedance – 75R, standard 1v p-p output. 3.5mm stereo audio jack. Power In – Power Jack 1.3X3.4mm. Supply voltage 6..18VDC Navigation button – 5 position navigation button (Up/Dn/Left/Right/Enter) – main control for choosing working mode, scanning frequencies, settings etc. LED1 (Blue and Red) – Blue LED is indicating video signal presence. Red LED indicating active receiver in Diversity mode. LED2 (Blue and Red) – Blue LED is indicating video signal presence.
PAGE 3
Menu and options: 1. Channel scan. During channel scan the receiver scans all 40 channels, collects RSSI data and shows it on display in graphical form. It shows 4 frequencies with highest RSSI. If it is a valid video signal it will show small letter “v” between channel number and corresponding frequency.
PAGE 4
antenna with one receiver and omnidirectional (dipole or clover leaf) with the other. The antenna which has better reception in particular situation will be selected. During active antenna change you will hear a beep. Controls in diversity mode: Up/Down – Changing channels up/down consequently (A1,A2…A8, B1,B2 etc. ) Left/Right – Jumping between channels that only have high RSSI level. Enter – enter the main menu 3.
PAGE 5
Radio module 1 is constantly sweeping channels and collects data with dynamic indication data on the display and radio module 2 works as a video receiver with video output to OUT1 and OUT2. Controls in Spektrum Analyzer mode: Up/Down – Changing channels can be consequently (A1, A2 etc.) or by jumping on the channels with high RSSI only. You can choose either option by selecting option Skip low RSSI in menu On or Off. Left/Right – Jumping between 4 channels that have highest RSSI level during current scan.
PAGE 6
Troubleshooting: Problem: Solution: 1 Receiver finds channels during scanning Blue LED is ON on active channel but no video on the monitor or goggles Check AV cable and monitor settings/Input selection 2 Receiver cannot find channels or picture quality is poor Check antenna/ antenna connector/transmitter 3 Receiver finds active channel and the picture is mixed with another picture Another transmitter works at the same channel. Coordinate channels with your fellow flyers.
