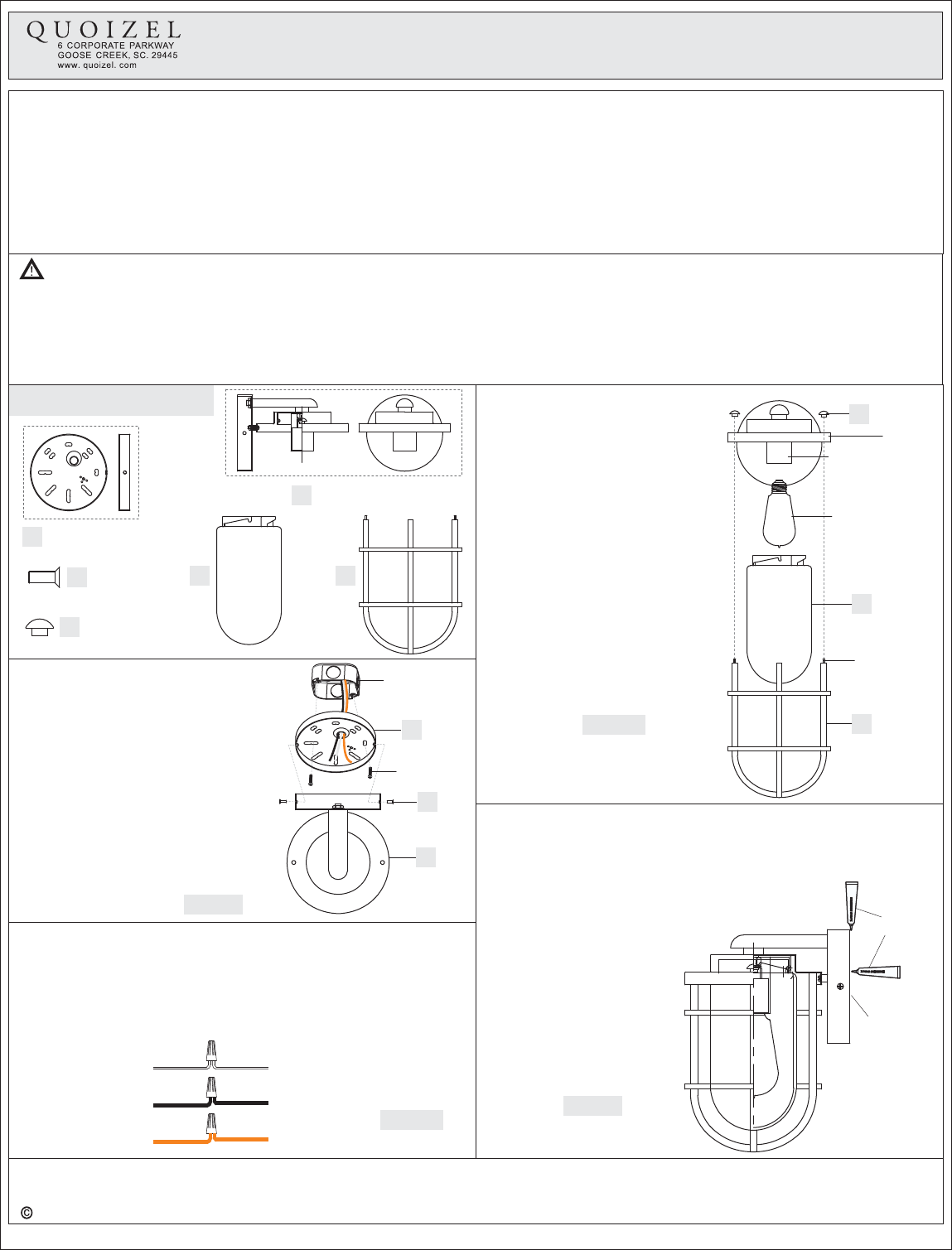

Installation Guide

Package Contents
1of2
Assembly Instruction Sheet #IS-BRD8406MB
For Style BRD8406MB
2016 QuoizelInc.
B
Lock
Screw
x2
Inner Backplate
x1
STEP 1 Install Inner Backplate and
Fixture Body
-
A. Pass the supply wires through Inner
Backplate (A). Attach Inner
Backplate (A) to Outlet Box with the
head of Green Ground Screw facing
you. Secure it with Outlet Box Screws
(not included). Tighten until snug
B.RefertoStep2forwiring
connections.
C. Attach Fixture Body (D) over Inner
Backplate (A) and secure with Lock
Screws (B). Tighten until snug with
screwdrivers.
.
A
Fixture Body
x1
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
D
Figure 1
STEP 3 - Install Bulb, Shade and
Cage
A. Insert bulb into socket and
screw snugly into place.
B. Thread the Shade (E) onto the
Fixture Hood of Fixture Body
(D). Hand tighten until sung.
C. Pass Bolts on the top end of the
Cage (F) through holes on the
Fixture Hood of Fixture Body
(D). Secure by threading Lock
Balls (C) onto Bolts. Hand
tighten until sung.
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires between Inner Backplate (A) and
Fixture Body (D).
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
ReleasedDate:2016-09-13
Figure 3
C
Lock Ball
x2
Glass
x1
E
Cage
x1
F
B
Outlet Box
A
Outlet Box
Screw
D
C
E
F
Socket
Fixture
Hood
Figure 4
STEP 4 - Apply Silicone Sealer
A. Make sure exterior wall surface and fixture backplate are free of dirt
before applying caulk. Using exterior grade caulk, caulk over top of
Exterior
Grade
Caulk
Backplate
Bolt
backplate and down other
side. Do not caulk bottom of
fixture backplate to ensure
proper moisture drainage.
Your fixture is now
assembled and ready to
use. Enjoy!
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A19MediumBasebulb100WMaximumor
(1)MediumBaseVintagebulbisrecommendedbutnotsupplied.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care+Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Vintage Bulb
(recommended
but not supplied)
