1of2

For Style BRS1909AGV

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

Pleasegoto forproductcleaningtips.Gotothe selection.

(3)B10CandelabraBaseBulbs60WMaximum,bulbsnotincluded.

MinimumHangingHeightis25.5”,MaximumHangingHeightis121.5”.

30-45minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.

www.quoizel.com Care+Maintenance

LightSource:

FixtureHangingHeight:

EstimatedAssemblyTime:

Preparation:

ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

Installation Guide #IS-BRS1909AGV

2018 QuoizelInc.

ReleasedDate:2018-09-18

visit us on-line at www.quoizel.com

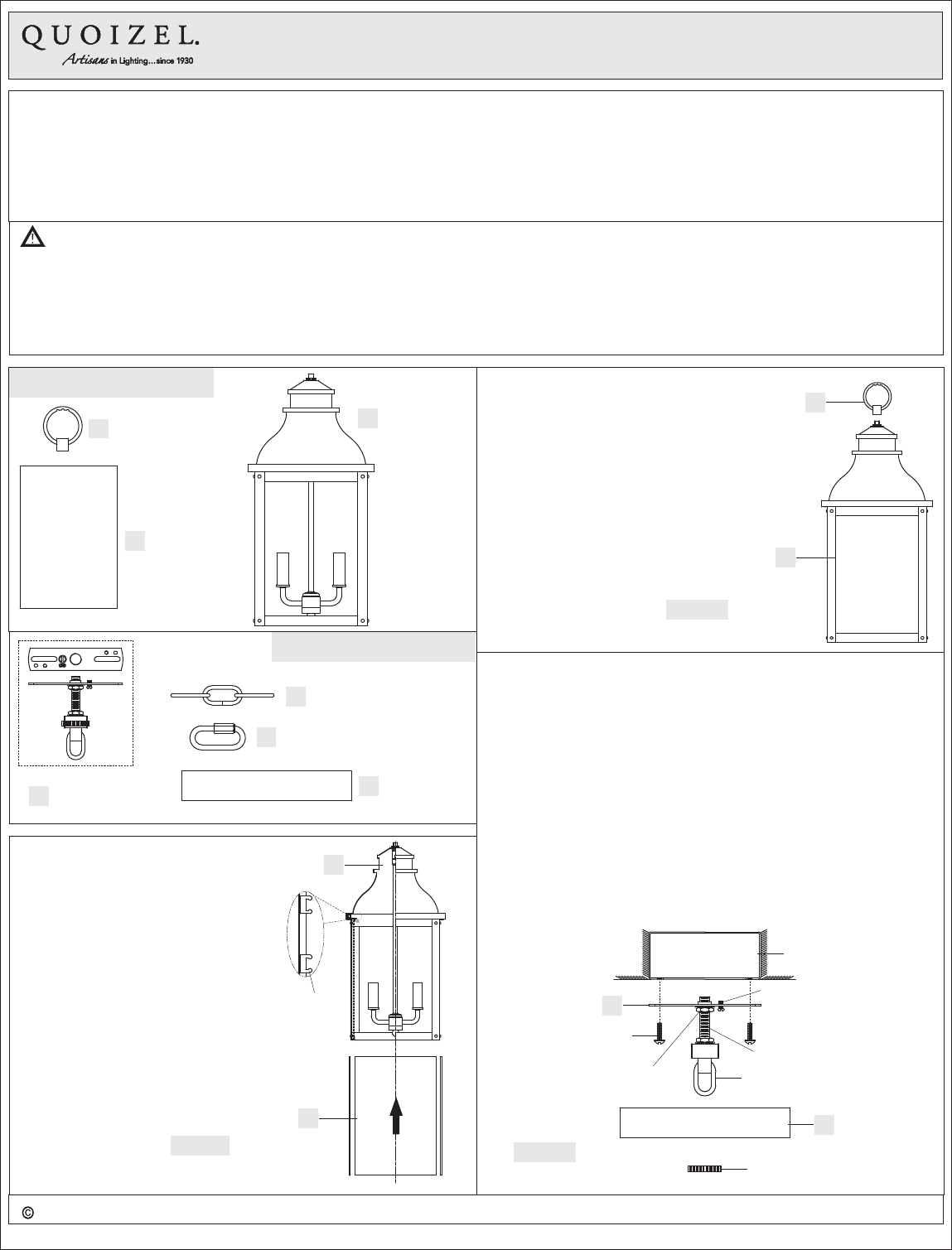

Package Contents

Fixture Loop

Hardware Contents

Crossbar

Assembly

Ceiling

Canopy

Fixture Chain

Quick Link

Glass

Panel

Fixture Body

STEP 1 - Install Glass Panels

A. Insert the Glass Panel (B) from the

bottom of the Fixture Body (C).

Place the bottom edge of the Glass

Panel (B) into the slot in the bottom

edge of the cage. Fold tabs in the

top edge of the cage to the top edge

of the Glass Panel (B) to secure it.

Figure 1

STEP 2 - Install Fixture Loop

A. Thread the Fixture Loop (A) onto

the top of the Fixture Body (C) and

hand tighten until snug.

Figure 2

STEP 3 - Install the Crossbar Assembly to Outlet Box and Adjust

the length of the Nipple

A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head

of the Green Ground Screw facing you. Secure it with Outlet Box

Screws (not included), tighten until snug

B. Adjust the hex nut and lock washer underside of the crossbar to the

middle of the nipple.

C. Remove the canopy lock ring from the canopy chain loop. Place the

Ceiling Canopy (DD) over the canopy chain loop against the ceiling

to determine the correct position of the nipple. Thread the canopy

lock ring onto the canopy chain loop. Adjust the nipple to allow the

Ceiling Canopy (DD) to rest against the ceiling when held in place by

the canopy lock ring.

D. Remove the canopy lock ring and the Ceiling Canopy (DD). Tighten

the lock washer and the hex nut against the crossbar to secure in

place.

Outlet Box Screw

(not included)

Hex Nut and

Lock Washer

Outlet Box

Green Ground Screw

Canopy Chain Loop

Canopy Lock Ring

Nipple

Figure 3

Tab

Summary of content (2 pages)

PAGE 1
Installation Guide #IS-BRS1909AGV For Style BRS1909AGV Please go to www.quoizel.com for product cleaning tips. Go to the Care + Maintenance selection. Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses. Light Source: (3) B10 Candelabra Base Bulbs 60W Maximum, bulbs not included. Fixture Hanging Height: Minimum Hanging Height is 25.5”, Maximum Hanging Height is 121.5”.
PAGE 2
STEP 4 - Install the Fixture Chain and Ceiling Canopy STEP 6 - Install Bulbs A. Adjust the Fixture Chain (BB) to your desired length by removing links if needed. Put a cloth over the Fixture Chain (BB) to protect the finish. B. Pull the supply wires through the Fixture Chain (BB) alternating links. After the wires are through the Fixture Chain (BB), pull the Supply Wires and the Ground Wire through the canopy lock ring and the Ceiling Canopy (DD) in order. C.
