Installation Guide

Package Contents
Pleasegoto forproductcleaningtips.Gotothe selection.
(4)G9XenonClearBulbs(supplied),40WMaximum
www.quoizel.com Care+Maintenance
LightSource:
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:
Preparation:
30-45minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
1of2

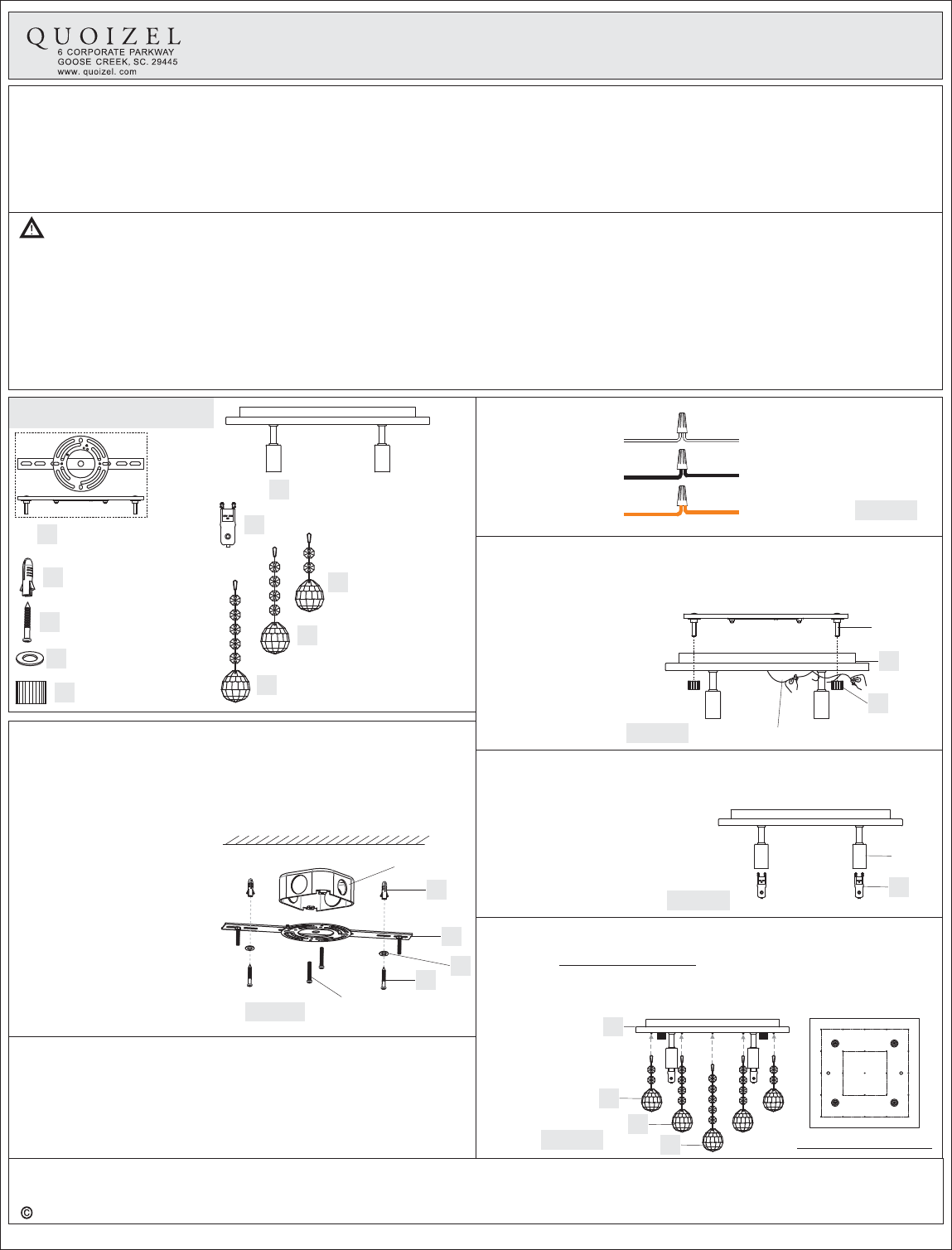

Assembly Instruction Sheet #IS-BRX1611C
For Style BRX1611C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Warnings and Cautions
Crossbar
x1
B
Fixture Body
x1
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Do not touch the bulb with bare hands use a cloth or glove.
C
Wall Anchor
x2
D
Self-tapping Screw
x2
Flat Washer
x2
Mounting Ball
x2
G9 Xenon Clear Bulb
x4
Clear Crystal
L:4-3/8"
x16
Clear Crystal
L:5-7/8"
x8
Clear Crystal
L:6-3/4"
x1
E
F
G
H
I
GN
D
2.4 mm
13 Ga
Q
U
O
I
Z
E
L
A
(Step 2 Continued)
July2015
J
Figure 1
STEP 1 Attach Crossbar Assembly to Outlet Box-
A. Place the Crossbar Assembly (A) onto the Ceiling surface and line
up one set of holes onto mounting holes on Outlet Box. Using a
pencil, mark the locations for Wall Anchors (B).
B. Remove the Crossbar Assembly (A) and drill holes from the marks
and then push the Wall Anchors (B) into the holes.
Ceiling
Outlet Box
Outlet Box Screw
(not included)
B
A
C
D
C. Position the Crossbar
Assembly (A) back onto the
Ceiling. Thread the Outlet
Box Screws (not supplied)
into the mounting holes on
the Outlet Box to secure it.
Hand tighten until snug.
D. Pass Flat Washers (D) over
Self-tapping screws (C) and
then thread self-tapping
screws (C) into Wall
Anchors (B). Hand tighten
until snug.
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 3 - Attach Ceiling Canopy to Mounting Screw
A. Remove Protective Film from Ceiling Canopy.
Note: Gloves are required to avoid leaving fingerprints or scratches
Mounting
Screw
Figure 3
F
Protective Film
E
on Ceiling Canopy.
B. Place the Ceiling
Canopy on the Fixture
Body (F) over the
Mounting Screws and
secure with Mounting
Balls (E). Hand tighten
until snug.
STEP 4 - Install Bulb
A. This fixture uses G9 Xenon Clear Bulbs (G). Maximum 40 watts.
Figure 4
Socket
G
Insert bulb and seat properly into
place.
Do not touch the
bulb with bare hands use a cloth
or glove.
IMPORTANT:
STEP 5 - Install Crystal to Fixture
A. (Refer to ) Attach Clear Crystal L6-3/4” (J) to
the location “C” on the Ceiling Canopy. Attach Clear Crystal L5-7/8”
(I) to locations “B” on the Ceiling Canopy. Attach Clear Crystal L4-
3/8” (H) to locations “A” on the Ceiling Canopy.
Crystal Distribution
A
F
H
I
Crystal Distribution
AAAA
A
A
A
A
AAAA
A
A
A
BBB
BB
BBB
C
J
Figure 5
Your fixture is
now assembled
and ready to
use. Enjoy!
