Installation Guide

ManualsBrandsQuoizel ManualsFlush Mount LightsBRX1619C

Part

Description

Quantity

A Crossbar

1pc.

6 pcs.

18 pcs.

5 pcs.

1pc.

4 pcs.

Crystal 3.63"L Part A

Bulb

Fixture Body

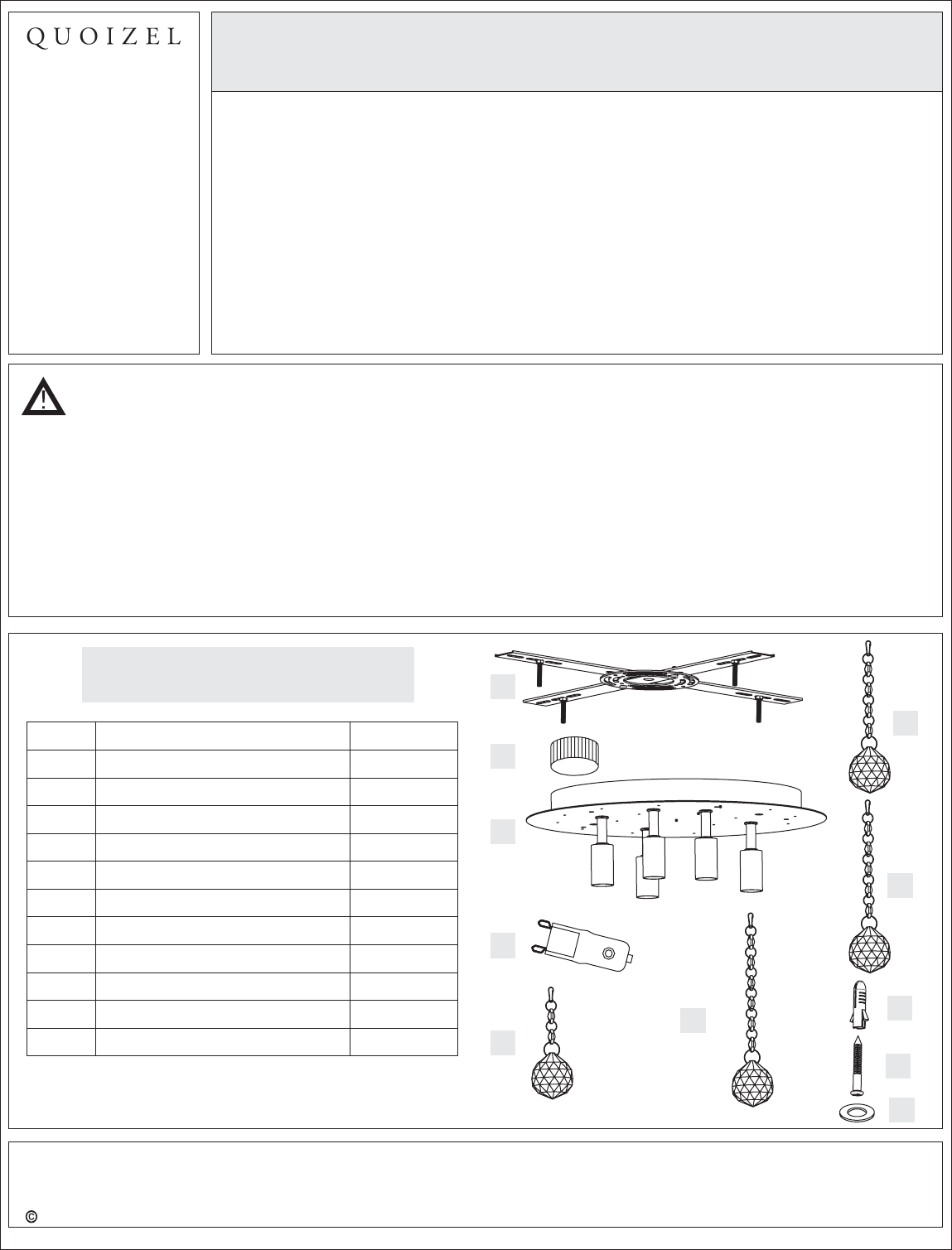

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

Mounting Ball

Assembly Instruction Sheet #IS-BRX1619C

For Style BRX1619C

Crystal 5"L Part B

1of4

12 pcs.

Crystal 5.63"L Part C

ToolsRequired:Flathead screwdriver,Phillips screwdriver, pliers,wire cutters,wire

strippers,electrical tape,safety glasses.

EstimatedAssemblyTime:20-30minutes

BulbRecommended: (5) G9Base G9Xenon bulb,40WMaximumclear

Preparation:Identify andinspect all partsbefore beginninginstallation. Check package

contentlist anddiagrams below tobe sureall parts arepresent. Ifany partsare missing

ordamaged, donot attempt toassemble, install,or operatethe fixture. Contactcustomer

servicefor replacementparts.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2013 Quoizel Inc.

November2013

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering June result.

Do not touch the bulb with bare hands use a cloth or glove.

1pc.

Crystal 6.25”L Part D

4 pcs.

Self-tapping Screw

Wall Anchor

4 pcs.

Washer

Summary of content (4 pages)

PAGE 1
Assembly Instruction Sheet #IS-BRX1619C For Style BRX1619C 6 CORPORATE PARKWAY GOOSE CREEK , SC . 29445 www . quoizel . com Quoizel, Inc. 6 Corporate Parkway Goose Creek, SC 29445 Customer Service Phone 631.273.2700 Fax 631.231.7102 www.quoizel.com Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
PAGE 2
BRX1619C FINISH: POLISHED CHROME 19.5” Dia. 17.5” Dia. 2 9” 3 4 5 A A A B A A B A B A D A B A C C B B C B A A NO. PART NUMBER B C C A A C B (5) 40W Maximum clear G9 Xenon (Supplied) B 1 A B A A 18PCS B 12PCS C 6PCS D 1PC A B A A NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2" REPLACEMENT PART DESCRIPTION REQ. 1 I1202SC BULB 40W XENON G9 CLEAR 5 2 G3772CR DECORATIVE CRYSTAL BALL 3.
PAGE 3
6 CORPORATE PARKWAY GOOSE CREEK , SC . 29445 www . quoizel . com Assembly Instruction Sheet #IS-BRX1619C For Style BRX1619C STEP 1 - Attach Inner Backplate to Outlet Box A. Place the Crossbar (A) onto the ceiling and line up one set of holes onto mounting holes on Outlet Box. Using a pencil, mark the locations for Wall Anchors (I). B. Remove the Crossbar (A) and drill holes from the marks and then push the Wall Anchors (I) into the holes. C. Position the Crossbar (A) back onto the Ceiling.
PAGE 4
6 CORPORATE PARKWAY GOOSE CREEK , SC . 29445 www . quoizel . com Assembly Instruction Sheet #IS-BRX1619C For Style BRX1619C STEP 4 - Attach Ceiling Canopy to Mounting Screw Figure 5 Crossbar Mounting Screw A. Place the Ceiling Canopy over the Mounting Screws and secure with Mounting Balls (B). Hand tighten until snug. Ceiling Canopy Mounting Ball STEP 5 - Install Bulb Figure 6 A. This fixture uses Frosted G9 Xenon Bulbs. Maximum 40 watts. B. Insert bulb and seat properly into place.
