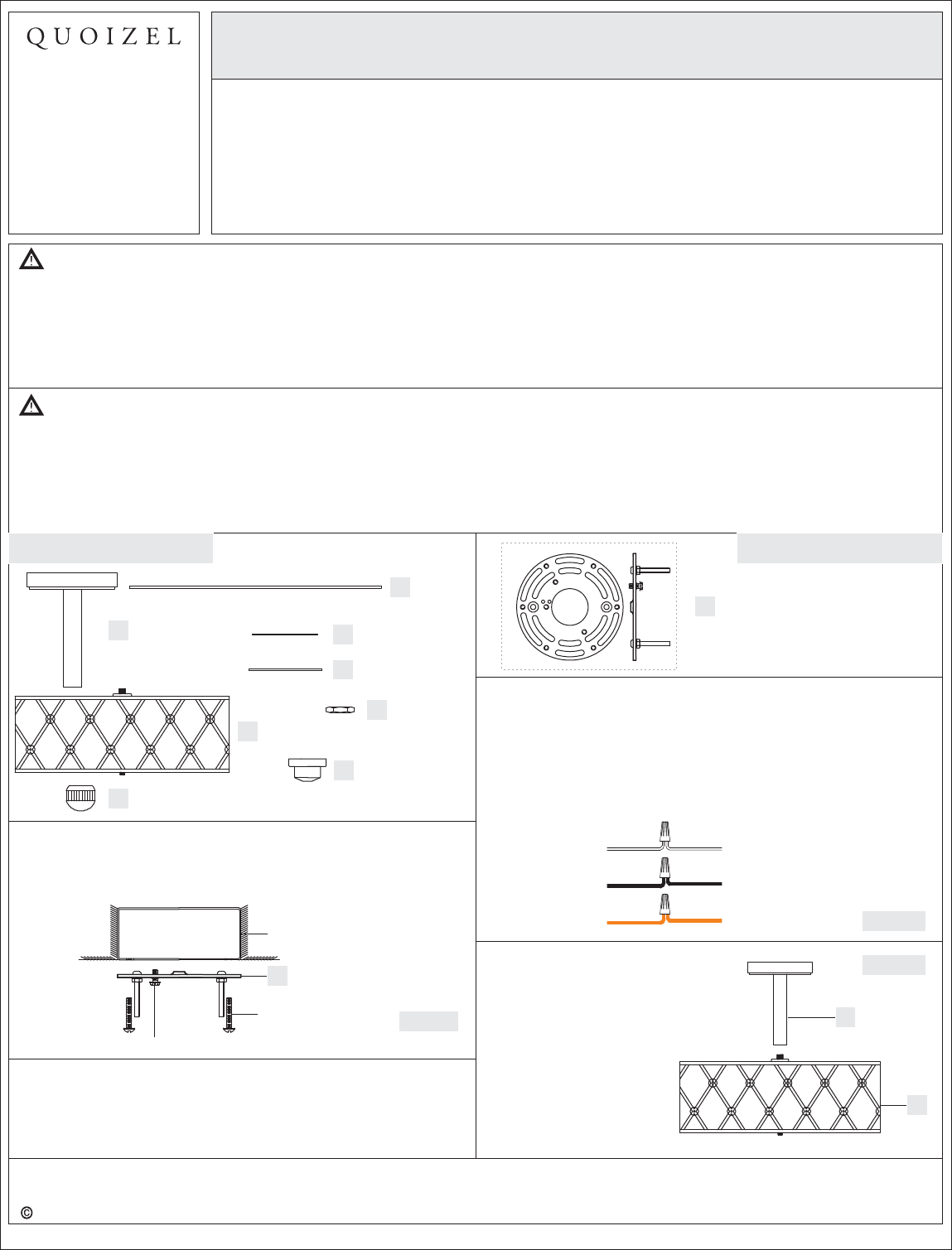

Installation Guide

G
ND
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone [phone]
Fax [phone]
www.quoizel.com
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver, pliers, wire cutters, wirestrippers,electrical tape,
safetyglasses.
EstimatedAssemblyTime:30-45 minutes
Preparation:Identifyand inspect all parts before beginning installation.Checkpackage content list and diagrams
belowtobe sure all parts are present.Ifany parts are missing or damaged, donotattempt to assemble, install, or
operatethefixture. Contact customer service for replacement parts.
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-BWL1717CC
For Style BWL1717CC
BulbRecommended: (3)Medium Base 100W Maximum,Alternatebulb (3) 23W CFL
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
February2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
Package Contents
A
B
C
Ceiling Canopy
x1
Lock Ball
x2
Shade
x1
STEP 1 Install Crossbar-
..
A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head
of the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included) Tighten until snug
Figure 1
Outlet Box
Outlet Box Screw
(not included)
Green Ground Screw
AA
Hardware Contents
AA
Crossbar Assembly
x1
B. Connect White Supply Wire from the Outlet Box to Ribbed side
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red)
Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
STEP 3 Attach Shade to Ceiling
Canopy
-
A. Thread Ceiling Canopy (A) onto
the Shade (B). Hand tighten
until snug.
Figure 3
A
F
G
H
D
Diffuser
x1
E
B
Hex Nut
x1
Finial
x1
Rubber Washer
x1
Flat Washer
x1
