Installation Guide

1of2
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
2016 QuoizelInc.
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)MediumBase150WbulbMaximum.
www.quoizel.com Care+Maintenance
LightSource:
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:
Preparation:
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Assembly Instruction Sheet #IS-LTE9009PN
For Styles LTE9009PN
Thank you forpurchasing a Quoizelproduct.
Need assistance withparts or assembly?Call Quoizel customerservice at 1-800-645-3184
or visit us on-line at www.quoizel.com

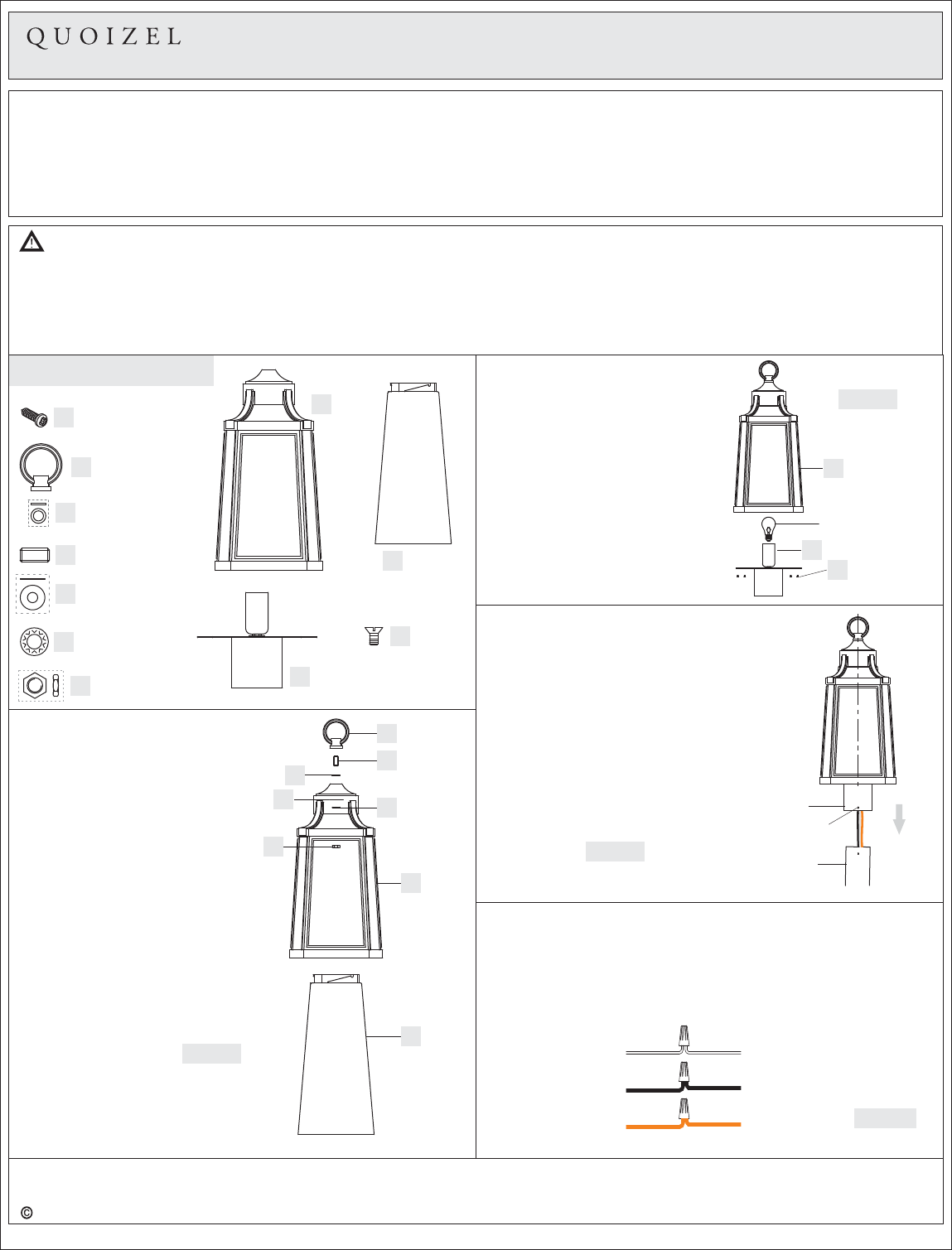

Package Contents
A
Mounting
Screw
x3
Fixture
Body
x1
J
Fixture Loop
x1
B
K
Lock
Screw
x4
Water Proof
Washer
x1
C
Nipple
x1
D
Flat Washer
x1
E
F
G
Lock
Washer
x1
Hex Nut
x1
Cage
x1
H
Shade
x1
I
Figure 1
STEP 1 Install Fixture
Loop to Cage
-
A. Thread Nipple (D) to
Fixture Loop (B).
B. Pass Water Proof Washer
(C), Cage (H), Flat Washer
(E), and Lock Washer (F)
over Fixture Loop with
Nipple, secure by threading
Hex Nut (G) onto Nipple
(D). Tighten until sung.
C. Thread Shade (I) onto the
Cage (H). Hand tighten
until sung.
B
C
D
E
F
G
H
I
Figure 2
STEP 3 Drill Pilot Holes on Post-
A. Carefully fit the Post Fitter over the
end of the Post (not supplied), making
sure the Post Fitter is fully seated.
B. Mark the drill point for the (3)
Mounting Screws, using (3) Mounting
Holes as reference. After marking hole
locations, remove fixture from post
and drill 1/16” pilot holes for screws.
Post
Post Fitter
Figure 3
Mounting Hole
J
H
K
Bulb (not
Supplied)
STEP 2 Install Bulb and
Cage to Fixture Body
-
A. Insert bulb and screw snugly
into place.
B. Place the Cage (H) onto the
top edge of the Fixture Body
(J) and secure with Lock
Screws (K). Hand tighten
until snug.
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 4
ReleasedDate:2016-09-26
