Specifications

PATTERN
GENERATOR
USER MANUAL V1.0
VPG-V
Package Contents-
 1 VGA Pattern Generator VPG-V
 1 power adapter DC 12V 1.25A
 1 user manual
 1 VGA 1.2M cable (HD-15 Male to Male)
Any thing missed, please contact with your vendor.
Introduction
Through the use of portable VGA pattern generator VPG-V,
you are able to use 38 timings and 34 patterns, and
operate it continuously for 6~8 hours after the battery has
been fully charged or it can be operated by connecting
with an external AC adaptor.
VPG-V is ideal for:
 TV / Monitor production line
 VGA image input devices
 Image transmission devices
Features
 Intelligent functionality.
 With 162 MHz pixel frequency.
 Support total 38 timings. (up to UXGA)
 Support Sync Type: H/V (TTL), SOG.
 Low cost.
 Single interface easily use.
 Portable design, working time up to 8 hours by inside
Re-chargeable battery.
 Auto Power-off on Battery mode.
 Provide total 34 patterns, Include: Color bar, Gray, Grid,
Block…
 By 16x2 Character LCD and key buttons, easily control.
Specifications
Function VPG-V
Video Output Connector 1 HD-15 Female
Select Switch 7
LCD Module:
16*2 Character Display
1
Max. Resolution 1600x1200 @ 60 Hz
Highest Pixel Frequency 162 MHz
Cable Distance 5M (Max.)
Power Adapter (Min.) DC 12V 1.25A
Housing Plastic
Weight 385 g
Dimensions (LxWxH) 190x95x35 mm
-1-
HD-15 Connector pin definition
Pin # Signal Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 NC
4 NC 12 NC
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 NC
8 Analog ground

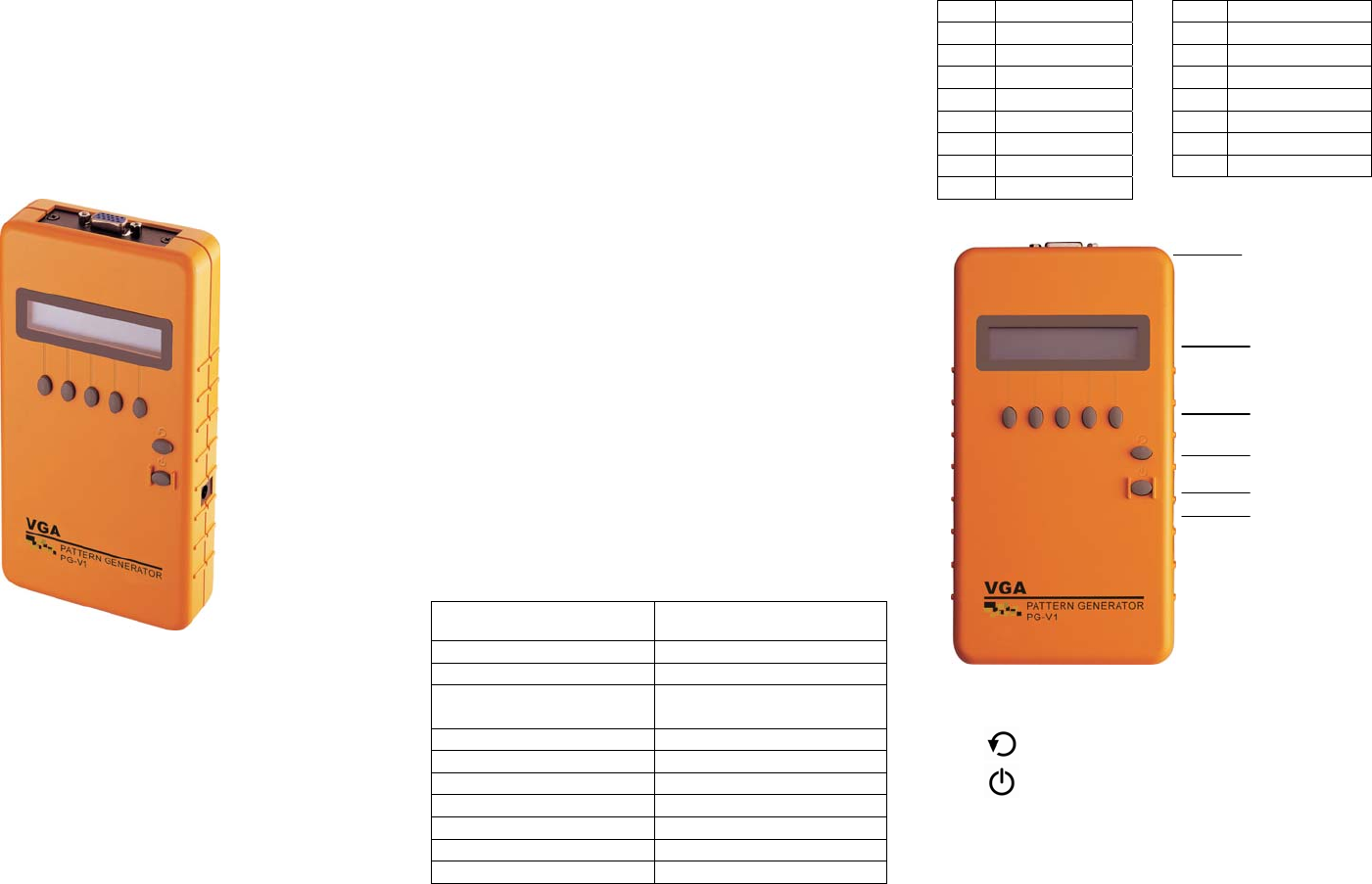

FRONT VIEW
1. Video Output
2. LCD Module: 16*2 Character Display
3. Function Keys
4. “
”: Return
5. “
”: Power On/Off
6. Power Jack
-2-
○
1
○
2
○
3
○
4
○
5
○
6
