input. When signal is sensed, the gate to the counter opens for
duration as pr
ogrammed with the Gate Time parameter processes
the result, displays and holds the reading until the next Reset/Arm
command.
To display and modify the gate time parameter, click on the Gate
Time LED and modify the gate time per your requirements. Gate
time rage is from 100 µs to 1 s. Normal counter/timer readings are
displayed when the Reading LED is selected.
Pulse Generator
The Pulse Generator panel (Figure 4-21) contains controls that
select the pulse function and adjusts the pulse parameters. The
puls
es are generated digitally suing the arbitrary waveform
memory and digital computation and therefore, there are some
limitations to the minimum to maximum range that must be
observed. The pulse design limitations are given in Appendix A.
The various parameters that control the digital pulse generator
features are described below.

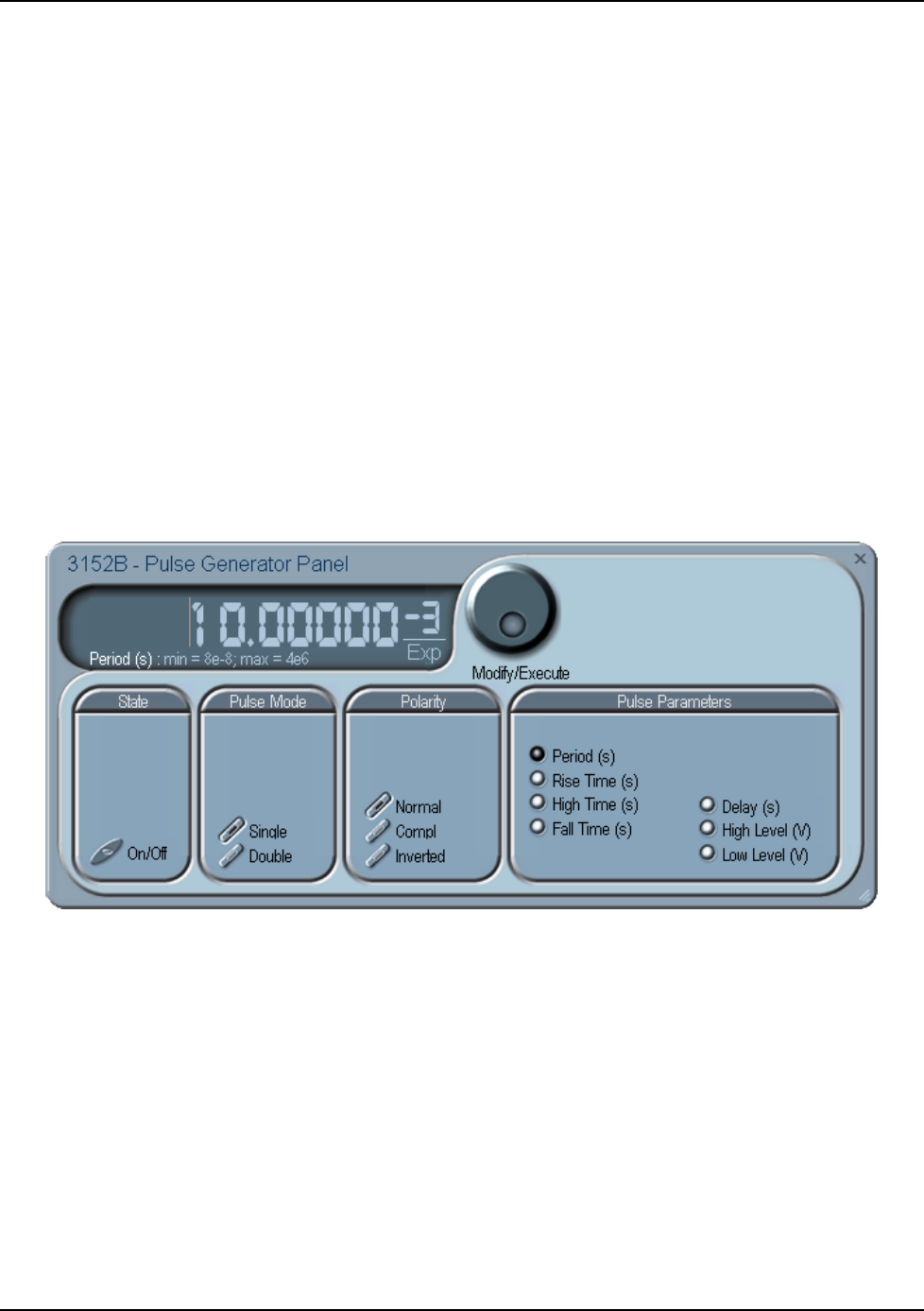

Figure 4-21, Digital Pulse Generator Panel
State
The State Group has a control to
enable or disable the pulse
generator function. Note that when the pulse generator function is
enabled
, all other waveform generation features of the 3152B are
disabled.
Pulse Mode
The Pulse Mode group has controls to toggle between single and
double pulse modes.
Polarity
The Polarity group has controls to select the pulse polarity from one
of the Normal, Complemented and Inverted options.
