3152B User Manual Publication No. 980935 Rev. M
4-58 ArbConnection Astronics Test Systems
Open…
The Open… (Ctrl+O) menu item lets you choose a previously saved
pulse file and load it to the Pulse Composer graph. The *.PLS file
extension, which is a text format, is supported by this operation.

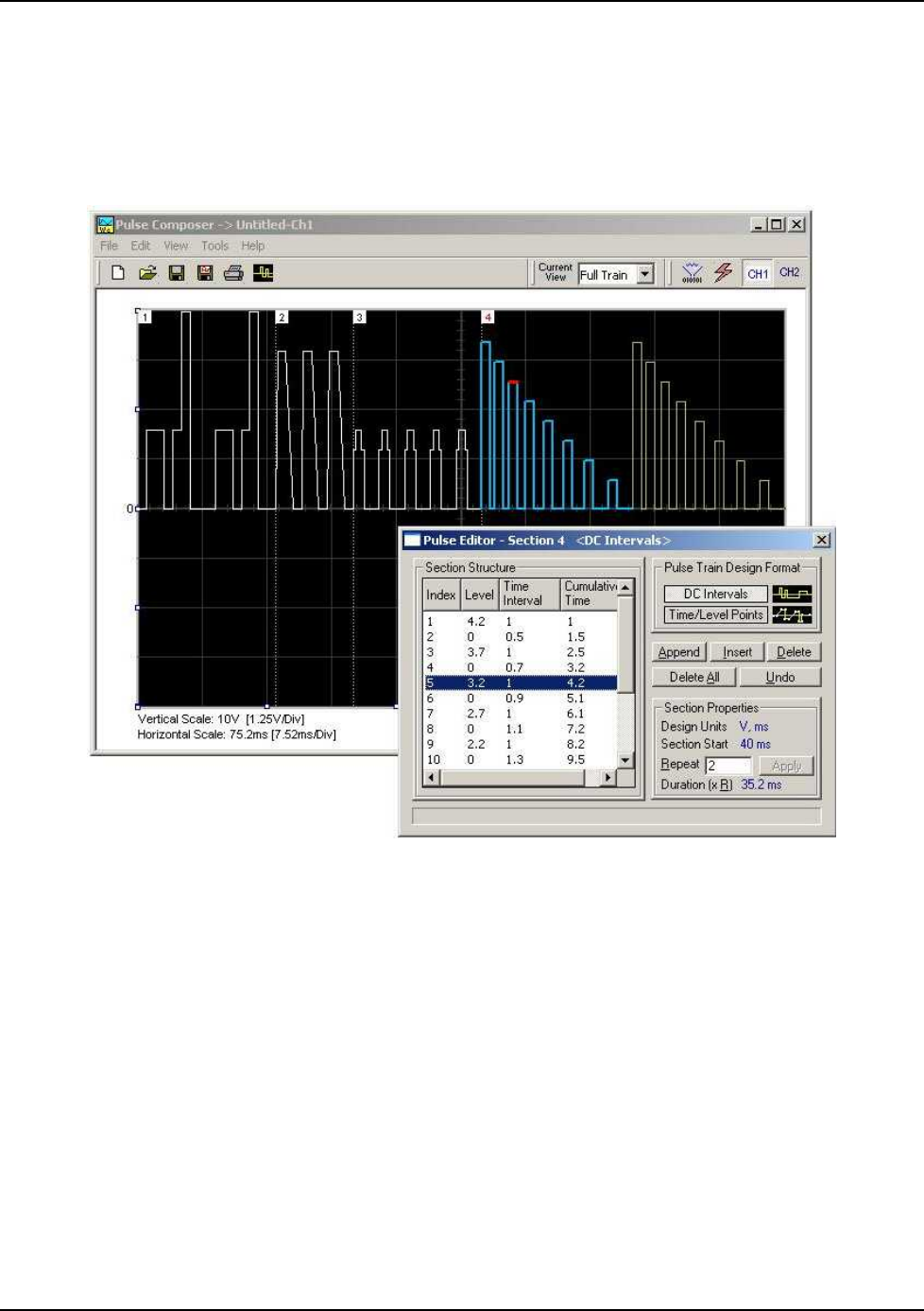

Figure 4-43, Pulse Composer Screen
Save
The Save (Ctrl+S
) menu item lets you store your active waveform
as a text file with a *.pls or *.wav extension. If this is
the first time
you save your pulse, the Save As… command will be invoked
automatically, letting you select name, path, and format (*.pls or
*.wav) for your pulse file.
Save As…
Use the Save As… menu item the first time you save your pulse
. It
will let you select name, location and format for your pulse file.
Print
With this men u selection
you may print the active Pulse Window.
The standard printer dialog box will appear and wi
ll let you select
printer setup or print the waveform page.
Exit
The Exit menu item ends the current Pulse Composer session and
