3152B User Manual Publication No. 980935 Rev. M
7-4 Adjustments and Firmware Update Astronics Test Systems

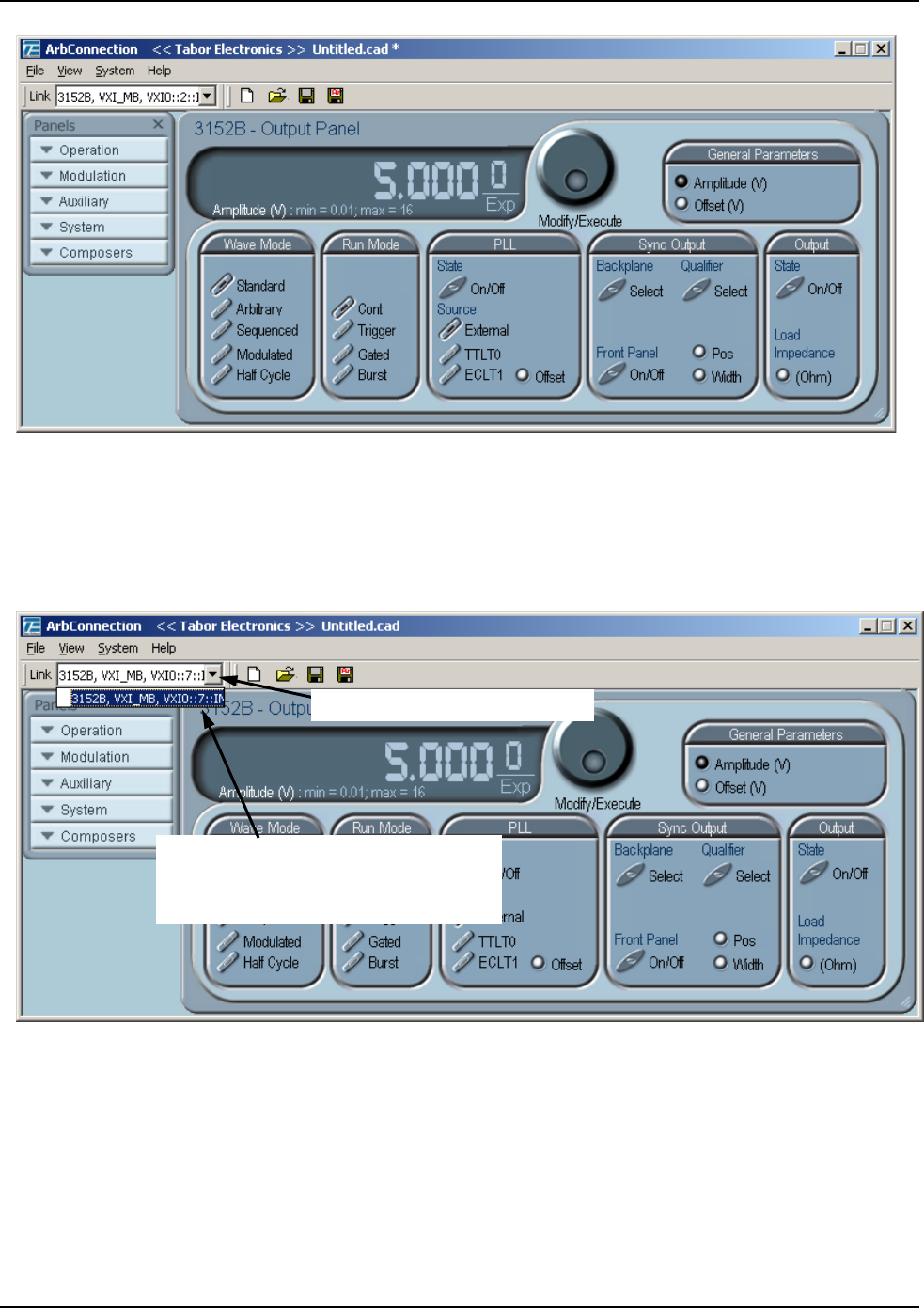

Figure 7-2, ArbConnection Main Window
6. If more than one instrument is installed, select the one you wish
to calibrate. Click the mouse where shown in Figure 7-
3 to drop
down a list of instruments. Then select one by logical address.
Figure 7-3, Selecting the Instrument to Calibrate
7. In the “Panels” group at the far left, select “System” (Figure 7-4).
Then in the drop-
down list, select “Calibration.” The Calibration
Panel will then open (Figure 7-5).
Click here for drop-down menu
Then select the module to calibrate. In
this case the
re is only one device: 3152B
having a
logical address of 7.
