FCD-IPM Installation and Operation Manual Chapter 5 Setup Menu
Host Parameters Menu 5-7
TFTP (Trivial File Transfer Protocol)
TFTP (Device name - FCD-IPM)
1. Retransmission timeout (seconds): 15
2. Total timeout (seconds) : 60
Press the number to edit value or ESC to return to the previous screen:
Figure 5-9. TFTP Menu
TFTP is a simple file transfer protocol running over IP that permits unsecured and
unauthorized file exchange over the Internet/Intranet. TFTP is widely used to
upgrade software and configuration parameters for various standalone units. TFTP
is a client-server type protocol; FCD-IPM operates as the TFTP client. In order to
use the TFTP-based features of FCD-IPM you need TFTP server software running
on some of your PCs.
This screen permits you to configure common TFTP session parameters that are
used for software upgrades and upload/download features.
Table 5-3. TFTP Parameters
Parameters Possible Values Description
Retransmission
Timeout
For example:
30 seconds
The amount of time that is allowed to pass before the last
non-acknowledged request is transmitted.
Total Timeout For example:
60 seconds.
The amount of time FCD-IPM should wait for an acknowledgment
from the TFTP server in case a frame is lost, or there are other
problems.
TFTP Client
File
Transfer
TFTP Server
IP Address: 192.168.10.11
Stores file at C:\booting\boot.exe
FCD-IPM

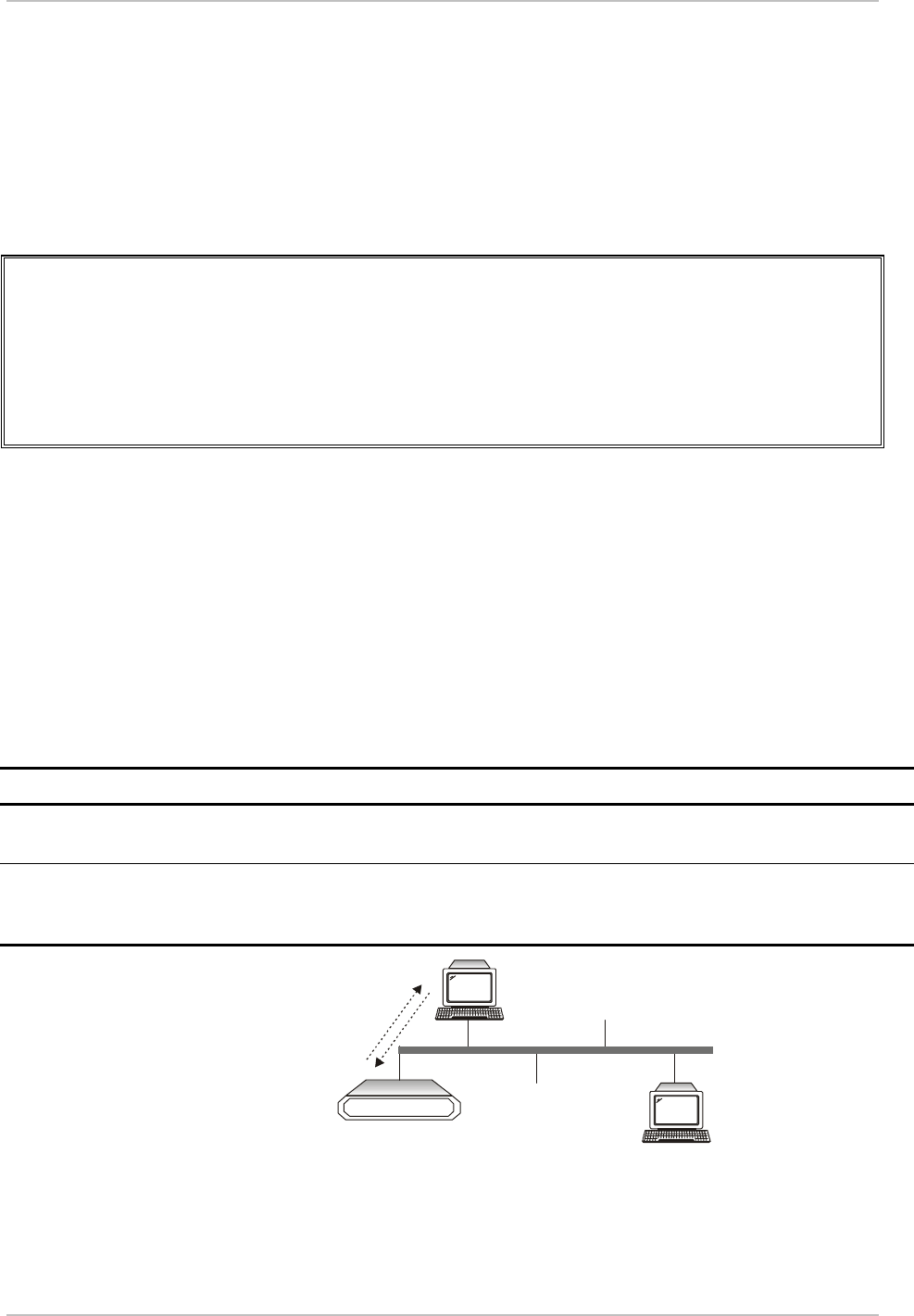

Figure 5-10. File Transfer to and from TFTP Server
Advanced Menu
↓1
Setup Menu
↓1
Host Parameters Menu
↓4
TFTP
