ADC1031/ADC1034/ADC1038 10-Bit Serial I/O A/D Converters

with Analog Multiplexer and Track/Hold Function

January 1995

ADC1031/ADC1034/ADC1038 10-Bit Serial

I/O A/D Converters with Analog Multiplexer

and Track/Hold Function

General Description

The ADC1031, ADC1034 and ADC1038 are 10-bit succes-

sive approximation A/D converters with serial I/O. The seri-

al input, for the ADC1034 and ADC1038, controls a single-

ended analog multiplexer that selects one of 4 input chan-

nels (ADC1034) or one of 8 input channels (ADC1038). The

ADC1034 and ADC1038 serial output data can be config-

ured into a left- or right-justified format.

An input track/hold is implemented by a capacitive refer-

ence ladder and sampled-data comparator. This allows the

analog input to vary during the A/D conversion cycle.

Separate serial I/O and conversion clock inputs are provid-

ed to facilitate the interface to various microprocessors.

Applications

Engine control

Process control

Instrumentation

Test equipment

Features

Serial I/O (MICROWIRE

compatible)

Separate asynchronous converter clock and serial data

I/O clock

Analog input track/hold function

Ratiometric or absolute voltage referencing

No zero or full scale adjustment required

0V to 5V analog input range with single 5V power

supply

TTL/MOS input/output compatible

No missing codes

Key Specifications

Resolution 10 bits

Total unadjusted error

1 LSB (max)

Single supply 5V

Power dissipation 20 mW (max)

Max. conversion time (f

3 MHz) 13.7 ms (max)

Serial data exchange time (f

1 MHz) 10 ms (max)

TRI-STATE

is a registered trademark of National Semiconductor Corporation.

MICROWIRE

is a trademark of National Semiconductor Corporation.

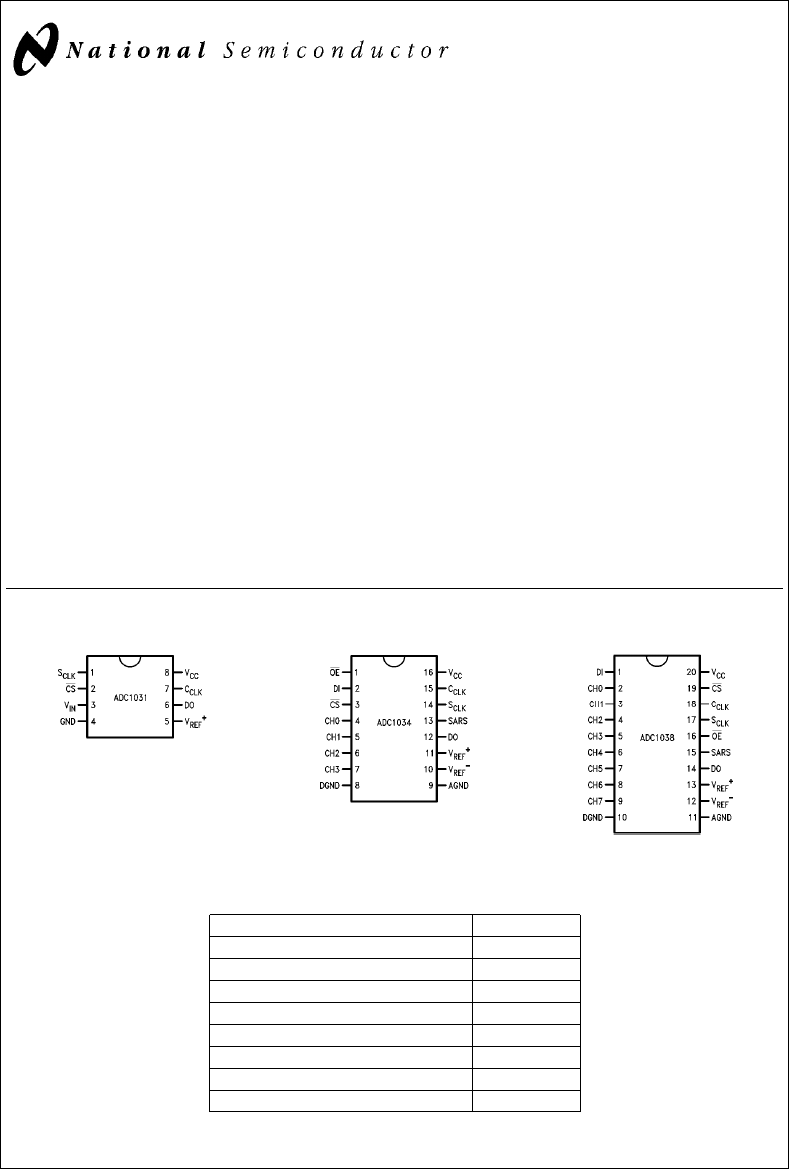

Connection Diagrams

Dual-In-Line and SO Packages

TL/H/10556– 4

Top View

ADC1031 In NS Package N08E

TL/H/10556– 3

Top View

ADC1034 In NS Packages

J16A, M16B or N16E

TL/H/10556– 2

Top View

ADC1038 In NS Packages

J20A, M20B or N20A

Ordering Information

Industrial

C Package

ADC1031CIN N08E

ADC1034CIN N16E

ADC1034CIWM M16B

ADC1038CIN N20A

ADC1038CIWM M20B

Military

125

C Package

ADC1034CMJ J16A

ADC1038CMJ J20A

1995 National Semiconductor Corporation RRD-B30M75/Printed in U. S. A.
