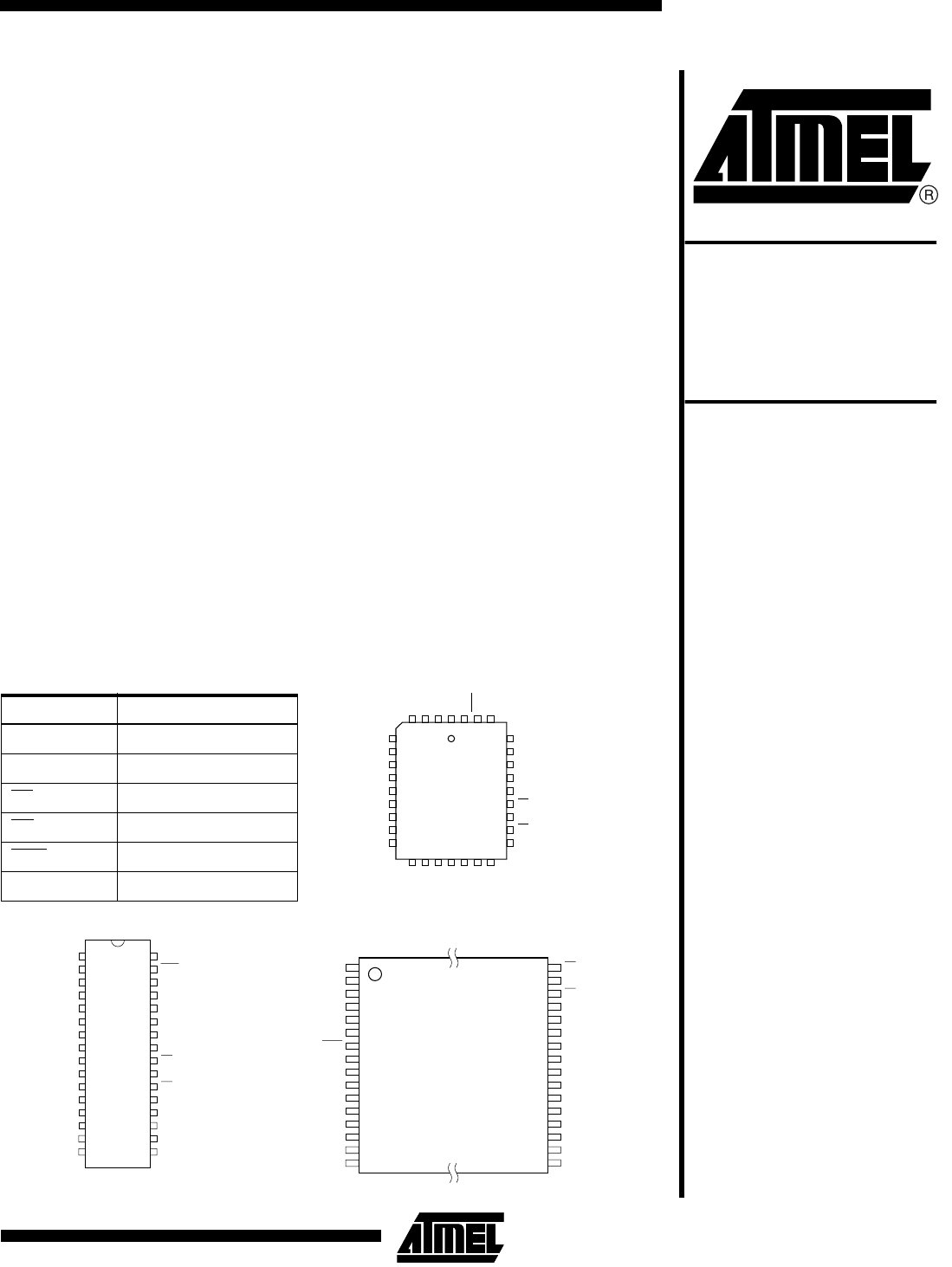

Features

•

Fast Read Access Time - 45 ns

•

Low-Power CMOS Operation

– 100 µA max. Standby

– 25 mA max. Active at 5 MHz (AT27C010L)

– 35 mA max. Active at 5 MHz (AT27C010)

•

JEDEC Standard Packages

– 32-Lead 600-mil PDIP

– 32-Lead PLCC

– 32-Lead TSOP

•

10% Supply

•

High Reliability CMOS Technology

– 2000V ESD Protection

– 200 mA Latchup Immunity

•

Rapid™ Programming Algorithm - 100 µs/byte (typical)

•

CMOS and TTL Compatible Inputs and Outputs

•

Integrated Product Identification Code

•

Commercial, Industrial and Automotive Temperature Ranges

Description

The AT27C010(L) is a low-power, high-performance 1,048,576-bit one-time program-

mable read only memory (OTP EPROM) organized as 128K by 8 bits. They require

only one 5V power supply in normal read mode operation. Any byte can be accessed

in less than 45 ns, eliminating the need for speed reducing WAIT states on high-per-

formance microprocessor systems.

Two power versions are offered. In read mode, the AT27C010 typically consumes 25

mA while the AT27C010L requires only 8 mA. Standby mode supply current for both

parts is typically less than 10 µA.

1-Megabit

(128K x 8)

OTP EPROM

AT27C010(L)

Rev. 0321J–07/98

1M bit EPROM

Pin Configurations

Pin Name Function

A0 - A16 Addresses

O0 - O7 Outputs

Chip Enable

OE Output Enable

PGM

Program Strobe

NC No Connect

TSOP Top View

Type 1

A11

A13

A14

PGM

VCC

VPP

A16

A15

A12

A10

GND

PLCC Top View

A14

A13

A11

A10

GND

A12

A15

A16

VPP

VCC

PGM

(continued)

PDIP Top View

VPP

A16

A15

A12

GND

VCC

PGM

A14

A13

A11

A10

Summary of content (16 pages)

PAGE 1
Features • Fast Read Access Time - 45 ns • Low-Power CMOS Operation • • • • • • • – 100 µA max. Standby – 25 mA max. Active at 5 MHz (AT27C010L) – 35 mA max.
PAGE 2
The AT27C010(L) in available in a choice of industry standard JEDEC-approved one-time programmable (OTP) plastic PDIP, PLCC, and TSOP packages. All devices feature two line control (CE, OE) to give designers the flexibility to prevent bus contention. With 128K byte storage capability, the AT27C010(L) allows firmware to be stored reliably and to be accessed by the system without the delays of mass storage media. Atmel’s 27C010(L) have additional features to ensure high quality and efficient production use.
PAGE 3
AT27C010(L) Absolute Maximum Ratings* Temperature Under Bias ................................ -55°C to +125°C *NOTICE: Storage Temperature ..................................... -65°C to +150°C Voltage on Any Pin with Respect to Ground .........................................-2.0V to +7.0V(1) Voltage on A9 with Respect to Ground ......................................-2.0V to +14.0V(1) Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
PAGE 4
DC and AC Operating Conditions for Read Operation AT27C010/AT27C010L -45 -55 -70 -90 -12 -15 0°C - 70°C 0°C - 70°C 0°C - 70°C 0°C - 70°C 0°C - 70°C 0°C - 70°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 125°C -40°C - 125°C -40°C - 125°C 5V ± 10% 5V ± 10% 5V ± 10% Com. Operating Temp. (Case) Ind. Auto.
PAGE 5
AT27C010(L) AC Waveforms for Read Operation(1) Notes: 1. Timing measurement reference level is 1.5V for -45 and -55 devices. Input AC drive levels are VIL = 0.0V and VIH = 3.0V. Timing measurement reference levels for all other speed grades are V OL = 0.8V and VOH = 2.0V. Input AC drive levels are VIL = 0.45V and VIH = 2.4V. 2. OE may be delayed up to tCE - tOE after the falling edge of CE without impact on tCE. 3. OE may be delayed up to tACC - tOE after the address is valid without impact on tACC.
PAGE 6
Programming Waveforms(1) Notes: 1. The Input Timing Reference is 0.8V for VIL and 2.0V for VIH. 2. tOE and tDFP are characteristics of the device but must be accommodated by the programmer. 3. When programming the AT27C010(L) at 0.1 µF capacitor is required across VPP and ground to suppress spurious voltage transients. DC Programming Characteristics TA = 25 ± 5°C, VCC = 6.5 ± 0.25V, VPP = 13.0 ± 0.
PAGE 7
AT27C010(L) AC Programming Characteristics TA = 25 ± 5°C, VCC = 6.5 ± 0.25 V, VPP = 13.0 ± 0.
PAGE 8
Rapid Programming Algorithm A 100 µs PGM pulse width is used to program. The address is set to the first location. VCC is raised to 6.5V and VPP is raised to 13.0V. Each address is first programmed with one 100 µs PGM pulse without verification. Then a verification / reprogramming loop is executed for each address. In the event a byte fails to pass verification, up to 10 successive 100 µs pulses are applied with a verification 8 AT27C010(L) after each pulse.
PAGE 9
AT27C010(L) AT27C010 Ordering Information ICC (mA) tACC (ns) Active Standby Ordering Code Package 45 35 0.1 AT27C010-45JC AT27C010-45PC AT27C010-45TC 32J 32P6 32T Commercial (0°C to 70°C) 35 0.1 AT27C010-45JI AT27C010-45PI AT27C010-45TI 32J 32P6 32T Industrial (-40°C to 85°C) 35 0.1 AT27C010-55JC AT27C010-55PC AT27C010-55TC 32J 32P6 32T Commercial (0°C to 70°C) 35 0.1 AT27C010-55JI AT27C010-55PI AT27C010-55TI 32J 32P6 32T Industrial (-40°C to 85°C) 35 0.
PAGE 10
AT27C010 Ordering Information (Continued) ICC (mA) tACC (ns) Active Standby Ordering Code Package 90 35 0.1 AT27C010-90JC AT27C010-90PC AT27C010-90TC 32J 32P6 32T Commercial (0°C to 70°C) 35 0.1 AT27C010-90JI AT27C010-90PI AT27C010-90TI 32J 32P6 32T Industrial (-40°C to 85°C) 35 0.1 AT27C010-90JA AT27C010-90PA 32J 32P6 Automotive (-40°C to 125°C) 35 0.1 AT27C010-12JC AT27C010-12PC AT27C010-12TC 32J 32P6 32T Commercial (0°C to 70°C) 35 0.
PAGE 11
AT27C010(L) AT27C010L Ordering Information ICC (mA) tACC (ns) Active Standby Ordering Code Package 45 25 0.1 AT27C010L-45JC AT27C010L-45PC AT27C010L-45TC 32J 32P6 32T Commercial (0°C to 70°C) 25 0.1 AT27C010L-45JI AT27C010L-45PI AT27C010L-45TI 32J 32P6 32T Industrial (-40°C to 85°C) 25 0.1 AT27C010L-55JC AT27C010L-55PC AT27C010L-55TC 32J 32P6 32T Commercial (0°C to 70°C) 25 0.1 AT27C010L-55JI AT27C010L-55PI AT27C010L-55TI 32J 32P6 32T Industrial (-40°C to 85°C) 25 0.
PAGE 12
Packaging Information 32J, 32-Lead, Plastic J-Leaded Chip Carrier (PLCC) Dimensions in Inches and (Millimeters) JEDEC STANDARD MS-016 AE .045(1.14) X 45˚ PIN NO. 1 IDENTIFY 1.67(42.4) 1.64(41.7) .025(.635) X 30˚ - 45˚ .012(.305) .008(.203) .553(14.0) .547(13.9) .595(15.1) .585(14.9) .032(.813) .026(.660) 32P6, 32-Lead, 0.600" Wide, Plastic Dual Inline Package (PDIP) Dimensions in Inches and (Millimeters) PIN 1 .566(14.4) .530(13.5) .530(13.5) .490(12.4) .021(.533) .013(.330) .090(2.29) MAX 1.
PAGE 13
AT27C010(L) 13
PAGE 14
AT27C010(L)
PAGE 15
AT27C010(L) 15
PAGE 16
Atmel Headquarters Atmel Operations Corporate Headquarters Atmel Colorado Springs 2325 Orchard Parkway San Jose, CA 95131 TEL (408) 441-0311 FAX (408) 487-2600 Europe 1150 E. Cheyenne Mtn. Blvd. Colorado Springs, CO 80906 TEL (719) 576-3300 FAX (719) 540-1759 Atmel Rousset Atmel U.K., Ltd.
