DS1248Y

1024K NV SRAM with Phantom Clock

DS1248Y

032697 1/12

FEATURES

• Real time clock keeps track of hundredths of seconds,

minutes, hours, days, date of the month, months, and

years

• 128K x 8 NV SRAM directly replaces volatile static

RAM or EEPROM

• Embedded lithium energy cell maintains calendar op-

eration and retains RAM data

• Watch function is transparent to RAM operation

• Month and year determine the number of days in each

month; valid up to 2100

• Standard 28–pin JEDEC pinout

• Full 10% operating range

• Operating temperature range 0°C to 70°C

• Accuracy is better than ±1 minute/month @ 25°C

• Over 10 years of data retention in the absence of

power

• Available in 120, 150 and 200 ns access time

ORDERING INFORMATION

DS1248Y–XXX

–120 120 ns access

–150 150 ns access

–200 200 ns access

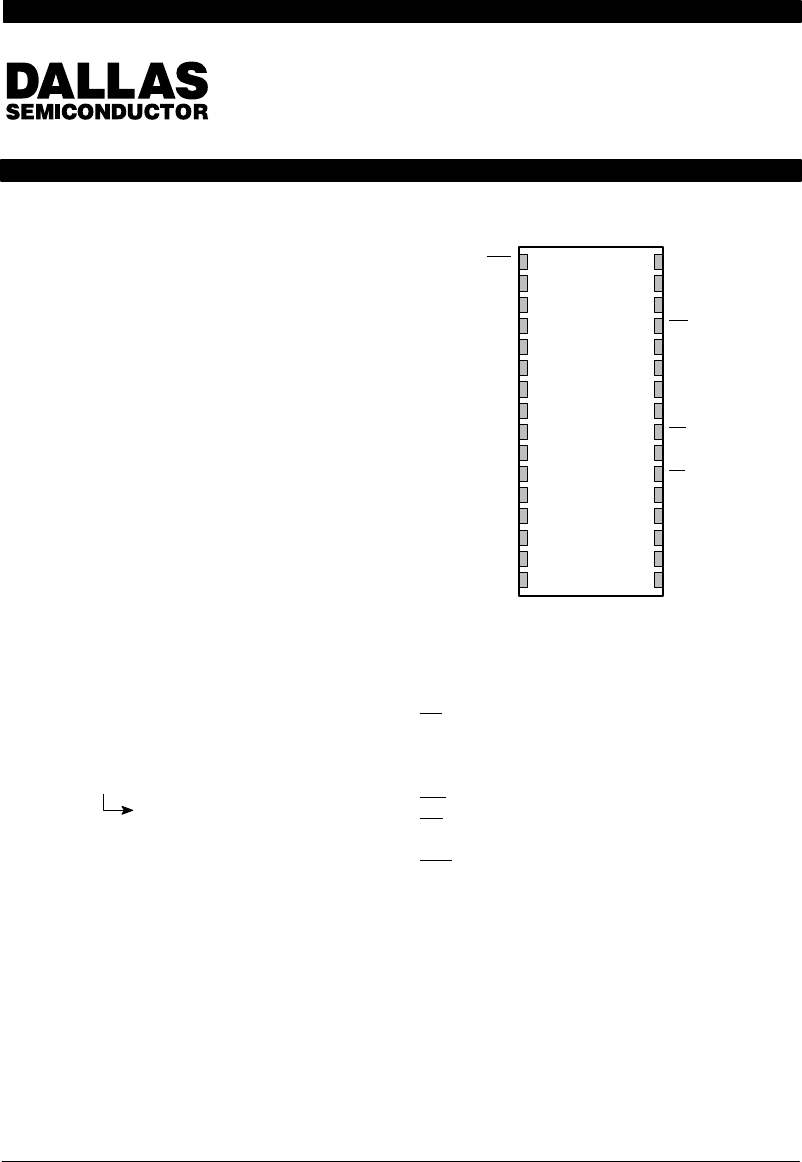

PIN ASSIGNMENT

32–PIN ENCAPSULATED PACKAGE

740 MIL FLUSH

A15

A13

A11

A10

DQ7

DQ6

DQ5

DQ4

DQ3

RST

A16

A14

A12

DQ0

DQ1

DQ2

GND

PIN DESCRIPTION

–A

– Address Inputs

CE – Chip Enable

GND – Ground

–DQ

– Data In/Data Out

– Power (+5V)

WE – Write Enable

OE – Output Enable

NC – No Connect

RST

– Reset

DESCRIPTION

The DS1248Y 1024K NV SRAM with Phantom Clock is

a fully static nonvolatile RAM (organized as 128K words

by 8 bits) with a built–in real time clock. The DS1248Y

has a self–contained lithium energy source and control

circuitry which constantly monitors V

for an out–of–

tolerance condition. When such a condition occurs, the

lithium energy source is automatically switched on and

write protection is unconditionally enabled to prevent

garbled data in both the memory and real time clock.

The Phantom Clock provides timekeeping information

including hundredths of seconds, seconds, minutes,

hours, day, date, month, and year information. The date

at the end of the month is automatically adjusted for

months with less than 31 days, including correction for

leap years. The Phantom Clock operates in either

24–hour or 12–hour format with an AM/PM indicator.
