Features
Single Package Fully-integrated 4-bit Microcontroller with RF Transmitter
Low Power Consumption in Sleep Mode (< 1 µA Typically)
Flash Controller for Application Program Available
Maximum Output Power (10 dBm) with Low Supply Current (9.5 mA Typically)
2.0 V to 4.0 V Operation Voltage for Single Li-cell Power Supply
-40°C to +125°C Operation Temperature
SSO24 Package
About Seven External Components
Description
The T48C862-R8 is a single package dual-chip circuit. It combines a UHF ASK/FSK
transmitter with a 4-bit microcontroller. It supports highly integrated solutions in car
access and tire pressure monitoring applications, as well as manifold applications in
the industrial and consumer segment. It is available for the frequency range of
429 MHz to 439 MHz with data rates up to 32 kbaud.
For further frequency ranges 310 MHz to 330 MHz and 868 MHz to 928 MHz separate
data sheets are available.
The device contains a flash microcontroller.

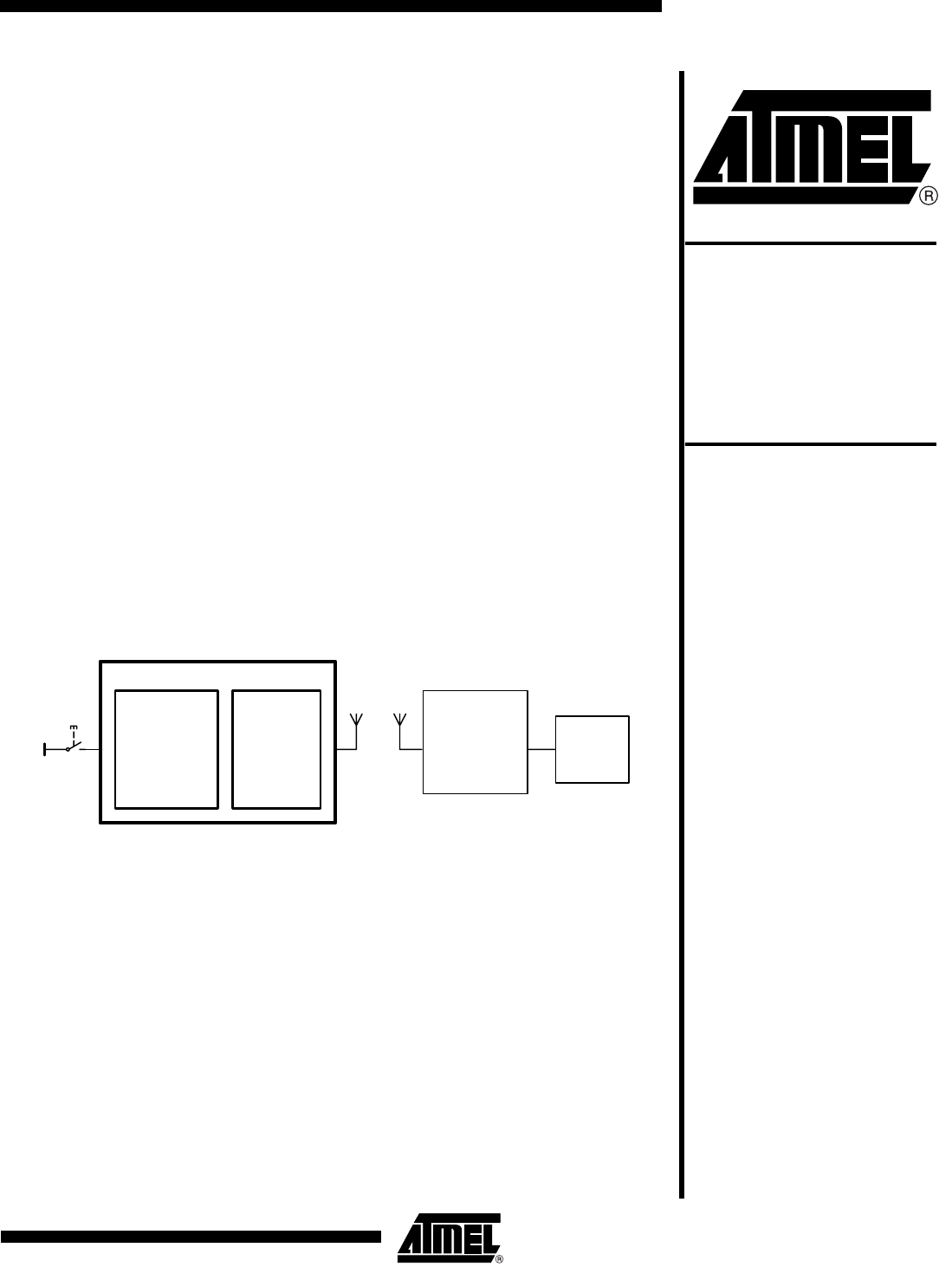

Figure 1. Application Diagram
Antenna
Micro-
controller
PLL-
Transmitter
T48C862
Keys
UHF ASK/FSK
Receiver
Micro-
controller
Microcontroller
with UHF
ASK/FSK
Transmitter
T48C862-R8
Preliminary
Rev. 4590B–4BMCU–02/03
