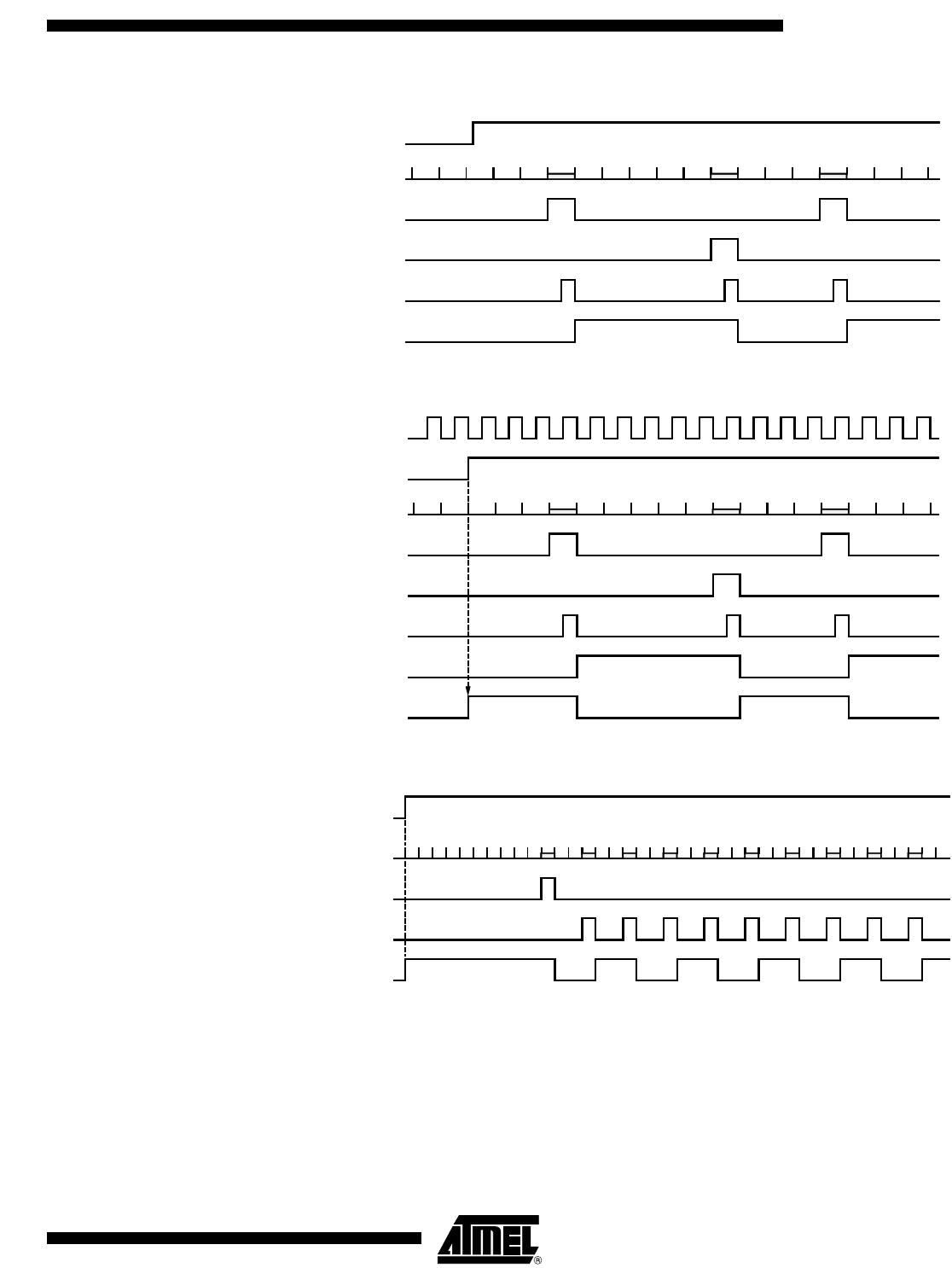

Figure 51. Counter Reset with Each Compare Match
Figure 52. Counter Reset with Compare Register 2 and Toggle with Start
Figure 53. Single Action of Compare Register 1
Timer 3 – Mode 2:
Timer/Counter, External
Trigger Restart and External
Capture (with T3I Input)
The counter is driven by an internal clock source. After starting with T3R, the first edge
from the external input T3I starts the counter. The following edges at T3I load the cur-
rent counter value into the capture register, reset the counter and restart it. The edge
can be selected by the programmable edge decoder of the timer input stage. If single-
action mode is activated for one or both compare registers the trigger signal restarts the
single action.
0000123 51234 00123 12
T3R
Counter 3
CM31
INT5
T3O
3
CM32
4000123 567 40123 56
T3R
Counter 3
CM31
INT5
T3O
Toggle
by start
T3O
89
CL3
CM32
0 012345678910012
Counter 3
CM31
CM32
T3O
01201201201201201201201201
Toggle by start
T3R
