Features

• Minimal External Circuitry Requirements, no RF Components on the PC Board Except

Matching to the Receiver Antenna

• High Sensitivity, Especially at Low Data Rates

• SSO20 and SO20 package

• Fully Integrated VCO

• Supply Voltage 4.5 V to 5.5 V, Operating Temperature Range -40°C to 105°C

• Single-ended RF Input for Easy Adaptation to l/4 Antenna or Printed Antenna on PCB

• Low-cost Solution Due to High Integration Level

• Various Types of Protocols Supported (i.e., PWM, Manchester and Biphase)

• Distinguishes the Signal Strength of Several Transmitters via RSSI (Received Signal

Strength Indicator)

• ESD Protection According to MIL-STD. 883 (4KV HBM)

• High Image Frequency Suppression Due to 1 MHz IF in Conjunction with a SAW Front-

end Filter, up to 40 dB is thereby Achievable with Newer SAWs

• Power Management (Polling) is Possible by Means of a Separate Pin via the

Microcontroller

• Receiving Bandwidth BIF = 600 kHz

Description

The T5744 is a PLL receiver device for the receiving range of f

= 300 MHz to

450 MHz. It is developed for the demands of RF low-cost data communication sys-

tems with low data rates and fits for most types of modulation schemes including

Manchester, Biphase and most PWM protocols. Its main applications are in the areas

of telemetering, security technology and keyless-entry systems.

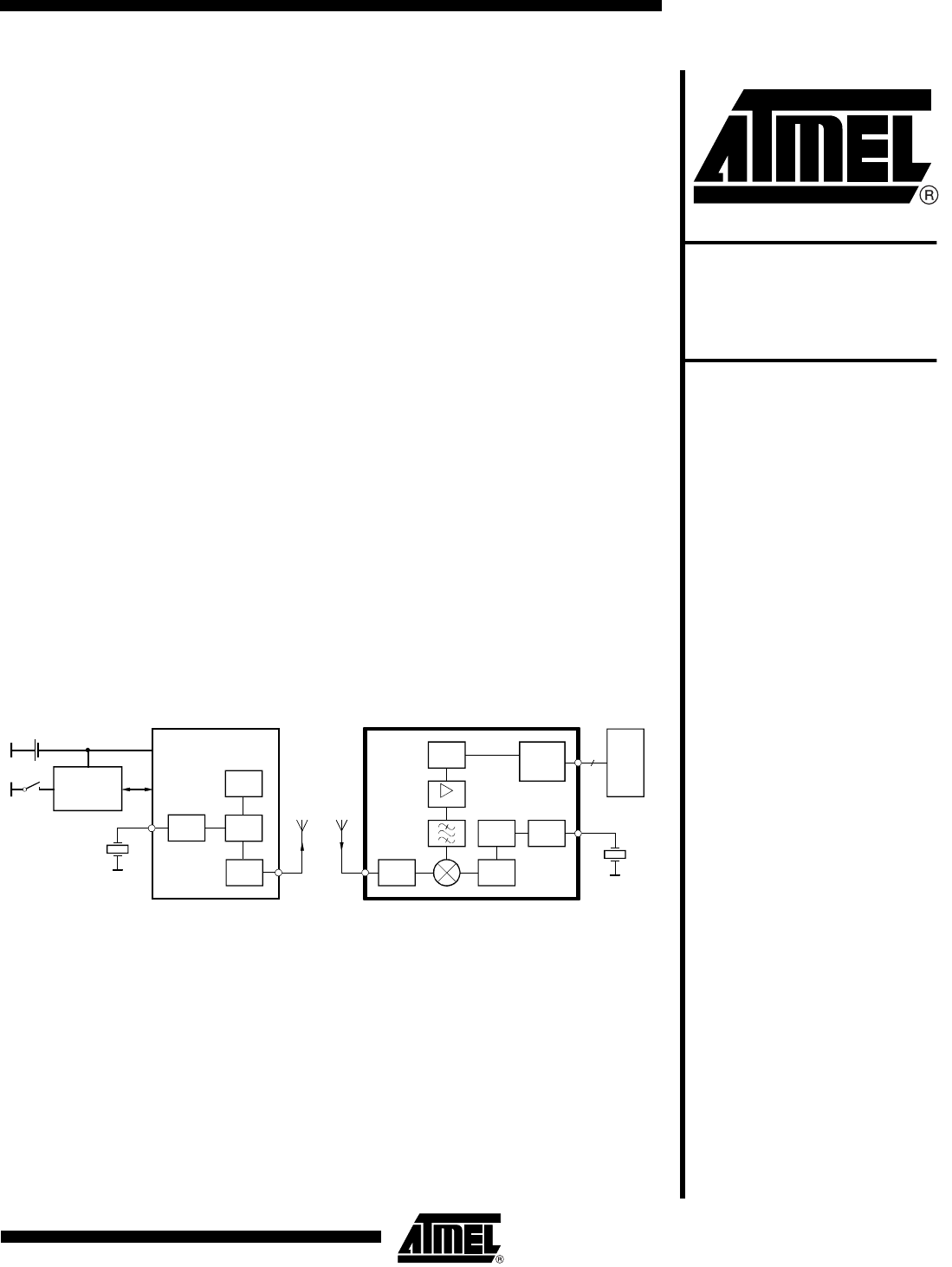

Figure 1. System Block Diagram

Demod.

IF Amp

LNA VCO

PLL XTO

Data

interface

T5744

1...3

µC

Power

amp.

XTO

VCO

PLL

U2741B

Antenna Antenna

UHF ASK/FSK

Remote control transmitter

UHF ASK

Remote control receiver

Encoder

M44Cx9x

1 Li cell

Keys

UHF ASK

Receiver

T5744

Preliminary

Rev. 4521A–RKE–02/02
