Manual

7
Item
No.
Qty. Part No. Description
Item
No.
Qty. Part No. Description
1 1 247004 Gear Carrier Assembly - Input 19 6 414861 Capscrew - 1/4-20NC x 3/4 Flat Soc Hd Nylok
2 1 247005 Gear Carrier Assembly - Intermediate 12v 20 6 416273 Screw - #6-32NC x 3/8
1 247007 Gear Carrier Assembly - Intermediate 24v 21 4 418018 Nut - 1/4-20NC Hx Elastic Stop
3 1 247006 Gear Carrier Assembly - Output 22 4 418035 Nut - 3/8-16NC Hx reg Z/P
4 1 251110 Switch Assembly - 12 ft 23 4 418177 Lockwasher - 3/8 Med Sect Z/P
5 1 251169 Cable Assembly - 80' x 1/4" (6mm) Dia. 24 4 418181 Washer - 3/8 ID SAE Flat Z/P
6 1 278039 Solenoid Assembly - 12v 25 1 442207 Gasket - Gear Housing Cover
1 278040 Solenoid Assembly - 24v 26 1 444048 Gear - Output Sun
7 1 296285 Brake Assembly 27 2 448061 Tie Bar
8 1 332143 Drum - Cable 28 1 448071 Cable Anchor
9 1 334143 Gear - Ring 29 1 458131 Motor/End Bearing Assembly - 12v
10 1 334145 Gear - Intermediate Sun - 12v 1 458132 Motor/End Bearing Assembly - 24v
1 334147 Gear - Intermediate Sun - 24v 30 1 470050 Roll Pin - 1/8 Dia x 5/8 Lg
11 1 334153 Gear - Input Sun 31 1 470053 Roll Pin - 1/8 Dia x 3/8 Lg
12 1 338249 End Bearing 32 1 477002 Locking Ring
13 2 412056 Bushing - Drum 33 1 477013 Cam Ring
14 1 412061 Bushing - Shaft 34 2 477004 Ring - Half
15 1 413018 Cover - Gear Housing 35 1 479007 Retainer - Ring Gear
16 4 414316 Capscrew - 3/8-16NC x 1-1/4 Hx Hd GR5 Z/P 36 6 494077 Spring
17 4 414829 Capscrew - 1/4-20NC x 1 Soc Button Hd F/B 37 3 518020 Thrust Washer
18 1 414830 Capscrew - 1/4-20NC x 3/8 Button Hd 38 1 518027 Thrust Disc
39 1 452005 Shifter Lever

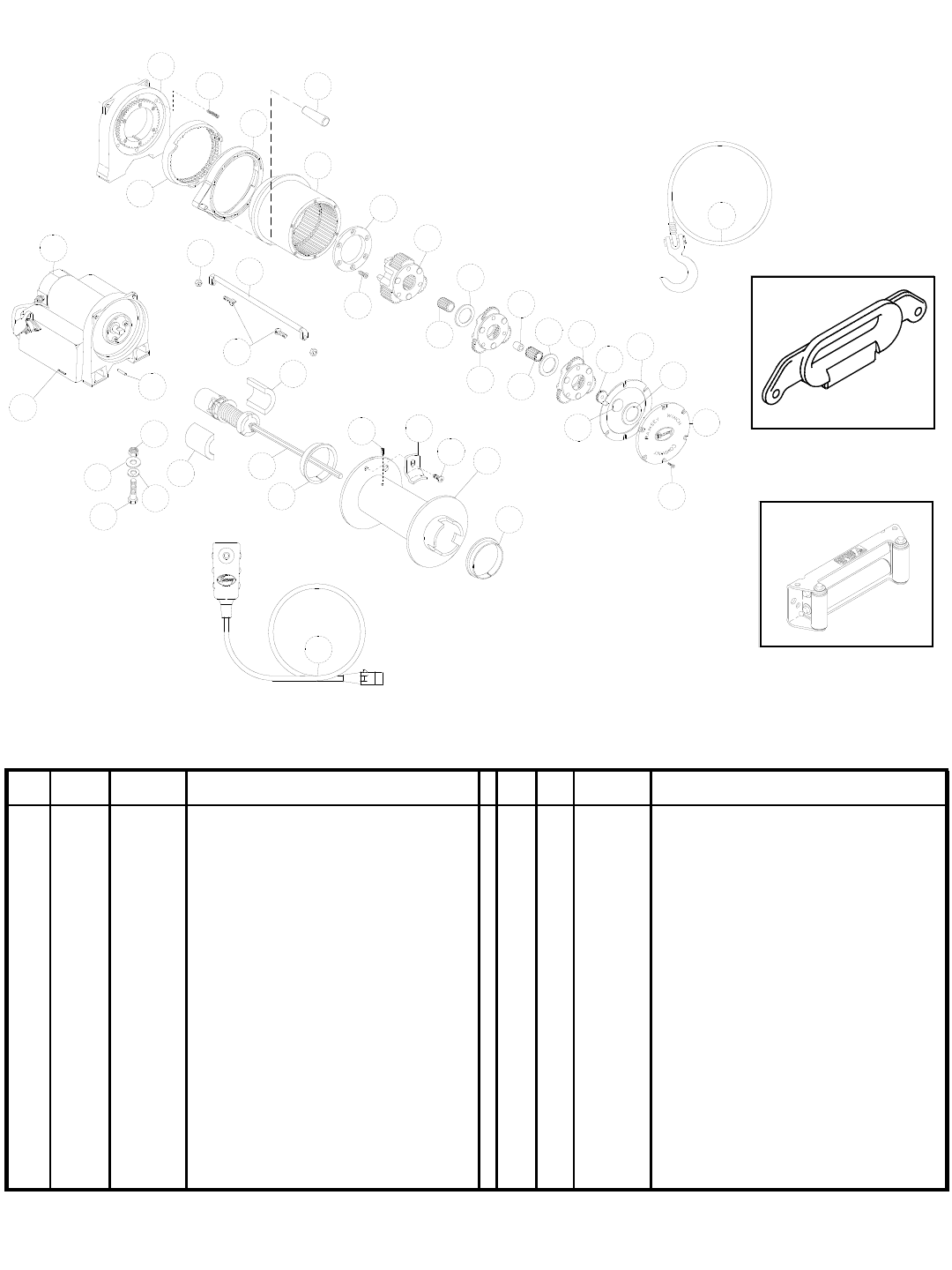

REP 5000 Parts List
14
3
15
25
11
21
34
17
22
34
13
23
24
16
8
33
37
37
37
27
7
4
20
1
26
39
12
38
2
10
13
36
35
19
32
9
31
28
18
29
30
6
5
REP 5000
Included with REP 5000R
Mounting hardware included with winch.
Roller Fairlead
#251151
Included with REP 5000H
Mounting hardware included with winch.
Hawse Fairlead
#251150
