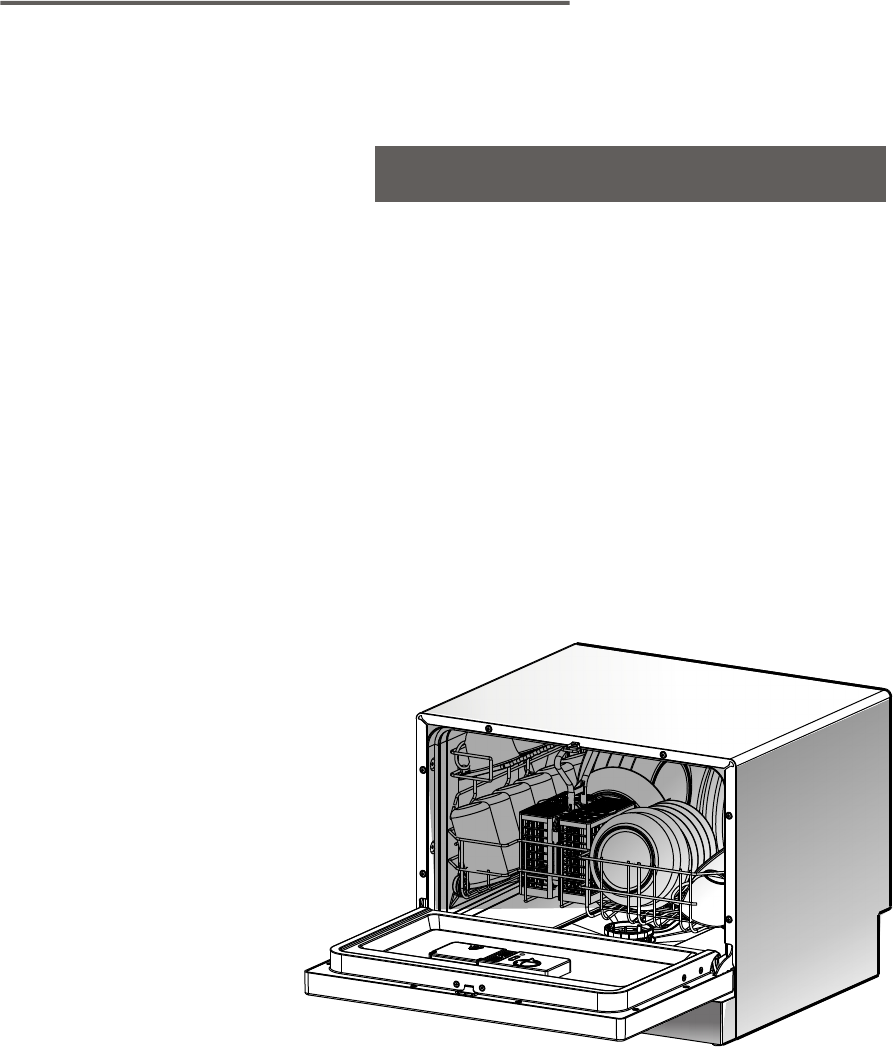

Dishwasher Instruction Manual WQP6-3208-US
Read this Manual Dear Customer, Please carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly. Keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. This manual contains sections of Safety Instructions, Operating Instructions,Installation Instructions and Troubleshooting Tips, etc. 1) Safety Information..........................................1 2) Operating Instructions.....................................
1.IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the precautions listed below: GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug.
2.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 4 3 1 ON/OFF 2 5 1 Power on light: To come on when Power ON/OFF button is pressed down. 2 ON/OFF Button: To turn on/off the power supply. 3 Rinse Aid Warning Light : To be on when the rinse aid dispenser needs to be refilled. 4 Program indicator light: when you select washing program, the correspond light will display.
3.Prior using for the first time A. Fill the Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
Adjusting Rinse Aid Dispenser The rinse aid dispenser has four settings.The recommended setting is on "3". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number on "4". Adjust lever (Rinse) MAX NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades. B.
Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table . Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.
4.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further information from detergent manufacturers. For particular items, select a programme with as low a temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.
Loading the Basket Position the dishes and cookware so that they will not get moved by the spray of water. 6 5 IN 8 4 1 1 7 1 2 Cups Serving bowl 3 4 Glasses Saucers 5 6 Oval platter Fruit bowl 8 7 2 Bread and butter plates Dinner plates 9 Cutlery basket 3 9 Plate racks of Basket The basket is fitted with plate racks which can be stowed horizontal if required.
Teaspoons 14 12 , Cutlery Basket Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown.
5.Starting a washing programme Wash Cycle Table NOTE: ( ) Means: need to fill rinse into the Rinse-Aid Dispenser. *AHAM DW-1-2005 : This program is the test cycle, the rinse-aid dispenser setting is recommended to Position 3. Program Heavy Normal (*AHAM DW-1-2005 Speed Cycle Selection Information Description of Cycle For the heaviest soiled loads, such as pots,pans,casserole dishes and dishes that have been sitting with dried food on them for a while.
Change the Programme... Premise: You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent " ).
6.Maintenance and Cleaning Filtering System The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter). Main filter 3 1 Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
Remarks: - Inspect the filters for blocking every time the dishwasher has been used. - By unscrewing the coarse filter.you can remove the filter system.Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush.
Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray arms turn freely.
Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. About Power Connection n For personal safety: n DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
Water Connection Back View Your dishwasher comes equipped with a 'quick connect' assembly (includes inlet and drain hose). The faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is included inside your dishwasher. The faucet adapter is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections. WARNING! In order to avoid that there is more water staying in the inlet hose, please close the faucet after using.
1 Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use Teflon tape to eliminate if necessary). 2. Connect the six-sided connection of the drain hose to the drain port connection on the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads). 3.Connect the star-shaped connection of the inlet hose to the inlet port on the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads). 4.
8.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes Dishwasher doesn't Fuse blown, or the circuit breaker tripped. start Technical problems Water not pumped form dishwasher Suds in the tub Stained tub interior White film on General inside surface problems There are rust stains on cutlery Noise What To Do Replace fuse or reset circuit breaker.
Problem Possible Causes What To Do The dishes are not clean The dishes were not loaded correctly. See notes in " Loading the Dishwasher Baskets ". The programme was not powerful enough. Select a more intensive programme. See" Wash Cycle Table ". Not enough detergent was dispensed. Use more detergent, or change your detergent. Item are blocking the path of spray arms. Rearrange the items so that the spray can rotate freely.
Technical Information 550mm 438mm 50 80 Height : Width : Depth : Voltage connected Load : Water pressure: Hot water connection : Power supply: Capacity: 19 0m m 438mm 550mm 500mm see rating label 0.04-1.
