redi DOOR ® INSTALLATION MANUAL SERIES: 5400 CONFIGURATION: Panel RDQCI5400-07292019 Rev.
Safety Notes • • • • This unit is best installed by two people. Handle the glass panels carefully and protect the edges. Safety tempered glass is very resistant to breakage, but the sharp corners of the panels can damage tile and flooring surfaces. The glass can break if unequal pressure is applied during installation. Please wear safety glasses whenever drilling or cutting.
TOOLS REQUIRED PENCIL DRILL BIT (Ø3MM, Ø6MM) FLAT & PHILLIPS HEAD SCREWDRIVERS TAPE MEASURE ELECTRIC DRILL RUBBER HAMMER SILICONE & GUN LEVEL PACKING LIST A B C D E F 3 RDQCI5400-07292019 Rev.

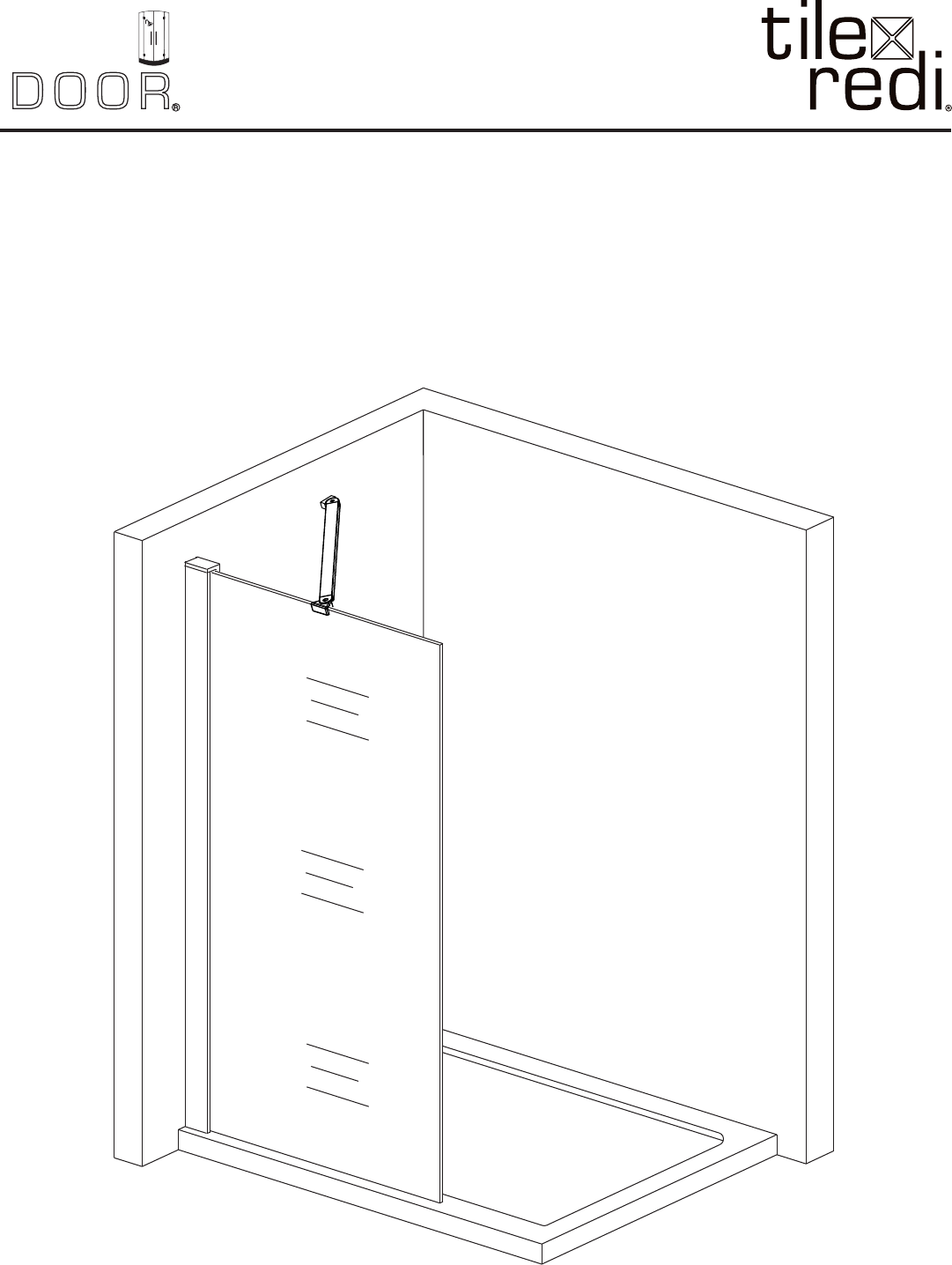

PRODUCT SCHEMATIC DIAGRAM 4 RDQCI5400-07292019 Rev.
1 2 A D 3 4 5 insid e C E To protect the glass please make sure to leave the corner protectors until after the item has been installed. 5 RDQCI5400-07292019 Rev.
7 Apply some silicone to the outside edge of the shower enclosure (between the wall profiles and wall, and between the frame and the shower pan) to ensure a waterproof seal. After installation, allow 24 hours for silicone to cure before being used. 6 RDQCI5400-07292019 Rev.
