Hose Reel Operations Manual
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
PERSONAL SAFETY
Personal injury and/or equipment damage may result
if proper safety precautions are not observed.
ORDER #:
MODEL #:
SERIAL #:
WARNING: Even low pressure can cause irreparable damage or death.
Exercise extreme caution while operating or servicing this equipment.
3100 SERIES
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: [phone]
Customer Service: 855-634-9109 • [e-mail] • www.reelcraft.com

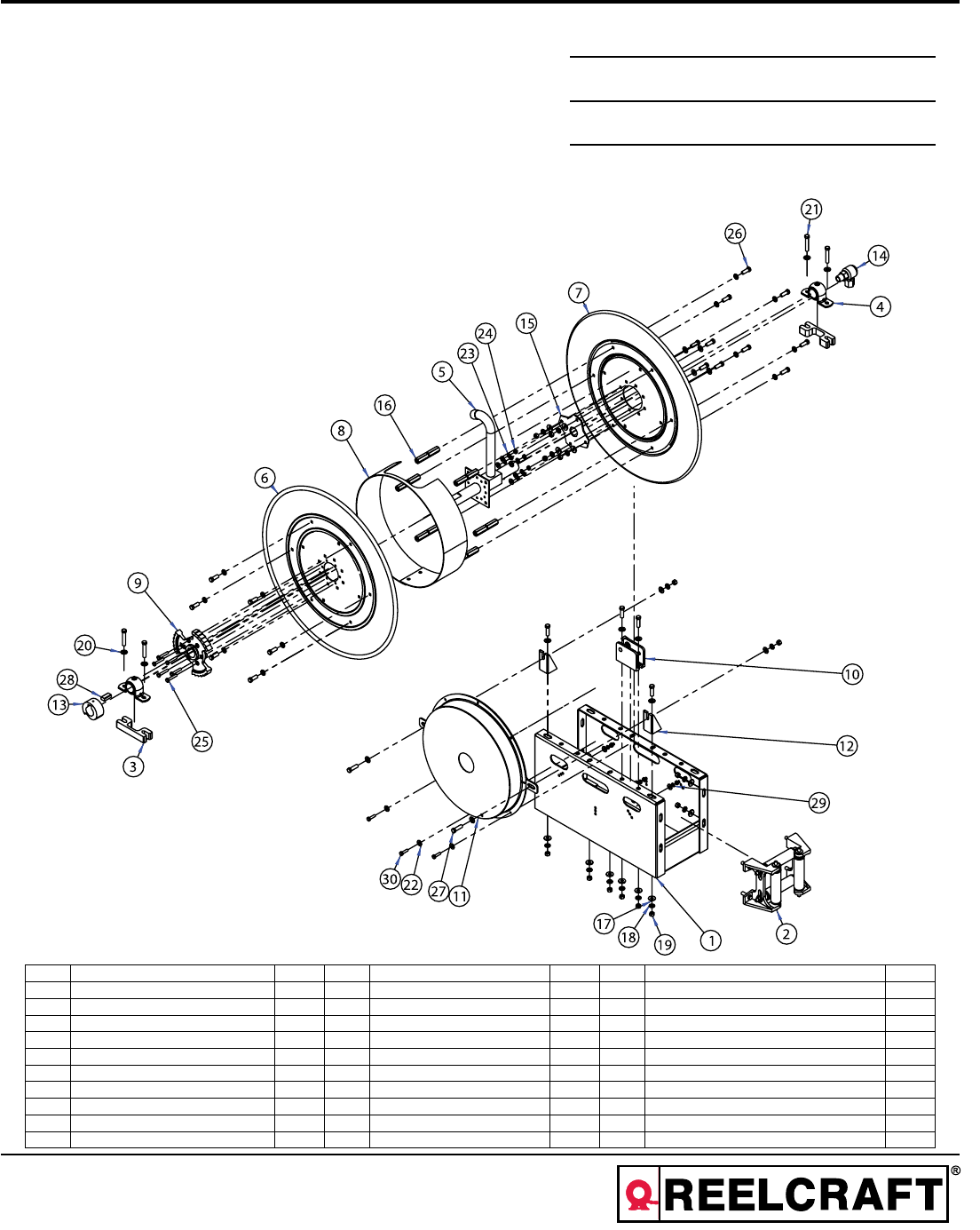

Item # Title Quantity Item # Title Quantity Item # Title Quantity
1 FRAME WELDMENT ASSY 1 11 SPRING CASE ASSY 1 21 S347-69 HEX CAP SCREW 3/8”-16 UNC X 2” 4
2 GUIDE ASSY BOX 1 12 327279 MOUNTING BRACKET 2 22 S350-4 WASHER 1/4” 12
3 PAT888AL CASTING BEARING SPACER 2 13 390171 ARBOR SPRING 1 23 S339-516 LOCK WASHER 5/16” 6
4 310212 BEARING 1.312” ID 2 14 SWIVEL 1 24 S338-4 HEX NUT 1/4”-20 9
5 FLUID PATH 1 15 HEAD INSERT 1 25 S347-47 HEX CAP SCREW 1/4-20 X 1.5” 6
6 HEAD DRIVE SIDE 1 16 TIE ROD 6 26 S347-65 HEX CAP SCREW 3/8”-16 UNC X 1” 16
7 HEAD FLUID PATH SIDE 1 17 S350-6 WASHER 3/8” 16 27 S347-66 HEX CAP SCREW 3/8”-16 UNC X 1.25” 6
8 DRUM 1 18 S339-616 LOCK WASHER 3/8” 30 28 261275 KEY ARBOR 1
9 327258 RATCHET 1 19 S338-6 HEX NUT 3/8”-16 UNC 18 29 S339-416 LOCK WASHER 1/4” 3
10 S360100 PAWL BRACKET ASSY 1 20 S350-41 WASHER SMALL 3/8” 16 30 S347-45 HEX CAP SCREW 1/4”-20 X 1” 3
To order replacement parts pleas provide the
following information:
∙ Model number
∙ Serial number
∙ Part description and/or balloon number listed
below. *Some parts may not be shown, in this
case a detailed part description will be required.
