User manual

4
It also has a low drop out regulator, which regulates up to 12V DC input voltage and
gives 5V output and is capable of supplying output currents up to 300mA, 24C02
EEPROM for RAM backup at low voltage detection and MAX232 for serial
communication.
3.3 Development Tools
E7 Emulator is used as a development tool to execute and debug the user programs on the
SKP.

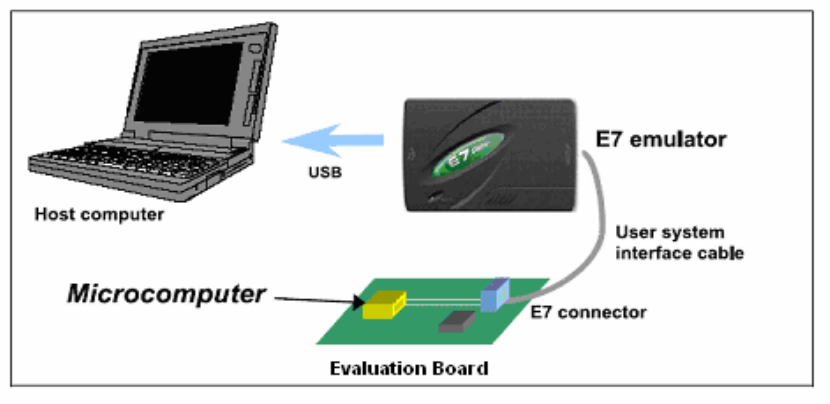

The diagram below shows how to connect the SKP to a PC using E7 Emulator.
Please see the quick start guide on how to run the SKP using E7 Emulator.
System Configuration with Emulator
3.4 Power Supply
The SKP hardware requires a power supply of +5V DC. Since total power
consumption can vary widely due to external connections, a micro power Low Drop
out Voltage Regulator (LDO) is used with a maximum current rating of 300mA at 5V
DC power supply.
3.5 Software Tools
The High-performance Embedded Workshop (HEW) provides an Integrated
Development Environment (IDE) and Graphical User Interface (GUI) that integrates the
software development tools and provides project management features.
