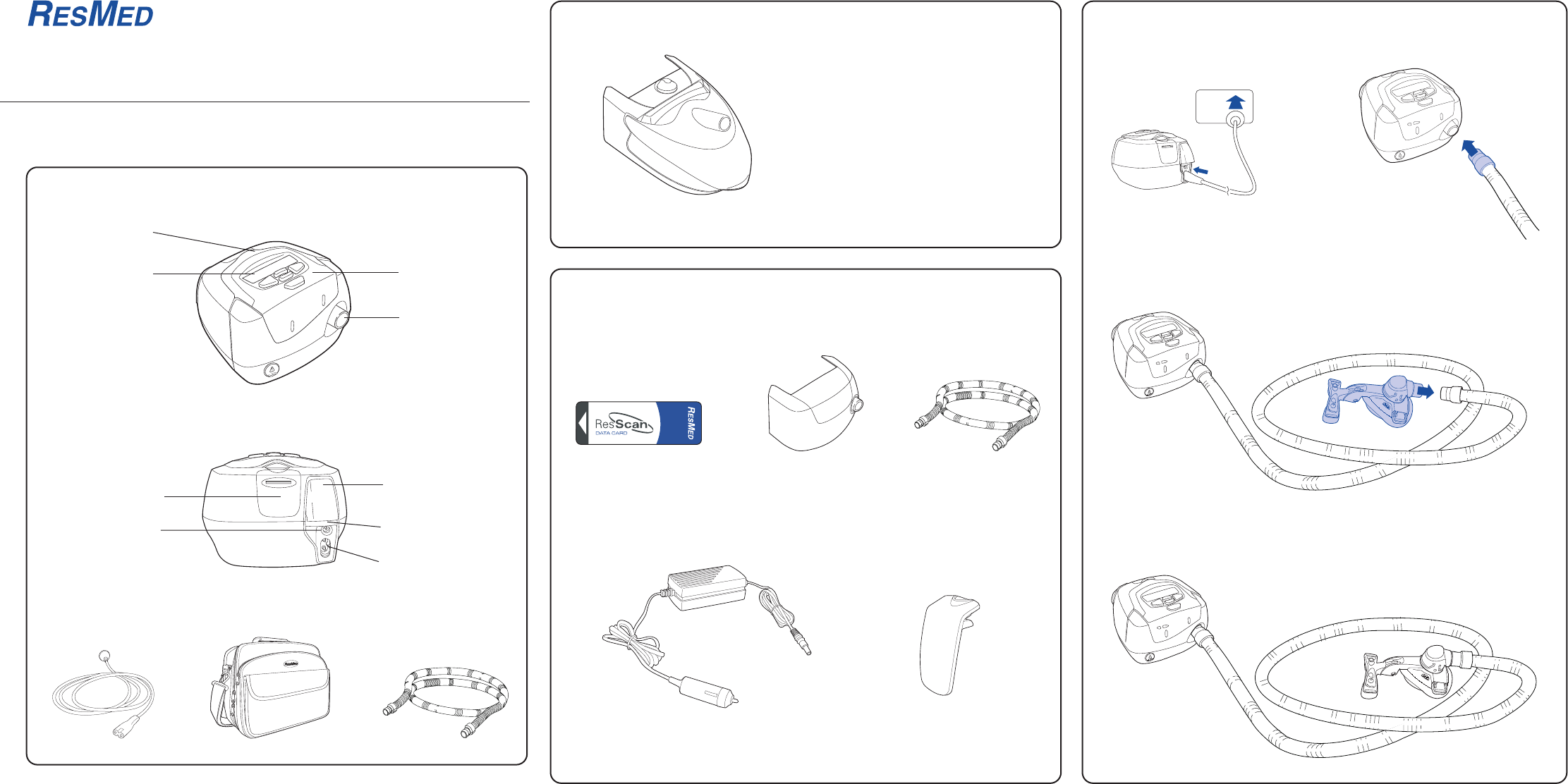

B D INTEGRATED HUMIDIFIER SETTING UP THE S8™ S8 AutoSet Spirit™ System A © 2005 ResMed Ltd. ILLUSTRATIONS Component of 338193/1 SYSTEM COMPONENTS HumidAire 3i™ Carry handle LCD screen Keypad C Air outlet 1 2 OTHER ACCESSORIES 1 3m Module Air filter cover DC input Air inlet 1 2 3 3 AC input 4 5 5 4 © 2005 ResMed Ltd. 3 Note: Some products not available in all regions 4 © 2005 ResMed Ltd. 2m © 2005 ResMed Ltd.
E H © 2005 ResMed Ltd. HUMIDAIRE 3i AND S8 HumidAire 3i F USING THE DATA CARD 1 2 BLANK MODULE Data communications port DATA CARD MODULE 1 Note: Some products not available in all regions 2 © 2005 ResMed Ltd. G © 2005 ResMed Ltd. 2 1 © 2005 ResMed Ltd.
S8 AutoSet Spirit™ System Reorder number: 338193/1 05 05 USER’S MANUAL English
Manufactured by: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia Tel: +61 (2) 8884 1000 or 1 800 658 189 (toll free) Fax: +61 (2) 8883 3114 Email: reception@resmed.com.au Distributed by: ResMed Corp 14040 Danielson Street Poway CA 92064-6857 USA Tel: +1 (858) 746-2400 or 1-800-424-0737 (toll free) Fax: +1 (858) 746-2900 Email: reception@resmed.
CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 YOUR RESPONSIBILITY 1 MEDICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABOUT THE S8 AUTOSET SPIRIT CONTRAINDICATIONS WARNINGS CAUTIONS ADVERSE EFFECTS 1 1 2 3 3 THE S8 AUTOSET SPIRIT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 DAILY CLEANING WEEKLY CLEANING PERIODIC CLEANING REPLACING THE AIR FILTER SERVICING 27 27 27 28 28 FREQUENTLY ASKED QUESTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 SYSTEM SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION Thank you for choosing the S8 AUTOSET SPIRIT™ flow generator. The S8 AUTOSET SPIRIT is a compact, all-in-one package with an inbuilt power supply and the option of integrated data management and humidification. This user manual contains the information you need for the correct use of your S8 AUTOSET SPIRIT.
• cerebrospinal fluid leak, recent cranial surgery, or trauma. WARNINGS The entire manual should be read before using the S8 AUTOSET SPIRIT. Advice contained in this manual should not supersede instructions given by the prescribing physician. • A patient should not connect a device to the data communication port unless instructed to do so by their health care provider or physician. Only ResMed products are designed to be connected to the data communication port.
will vary, depending on where the oxygen is introduced, the pressure settings, patient breathing pattern, mask selection, and leak rate. • Do not use the S8 AUTOSET SPIRIT if there are obvious external defects or unexplained changes in performance. • Do not open the S8 AUTOSET SPIRIT case. There are no user serviceable parts inside. Repairs and internal servicing should only be performed by an authorised service agent. • Explosion hazard—do not use in the vicinity of flammable anaesthetics.
4
THE S8 AUTOSET SPIRIT SYSTEM The S8 AUTOSET SPIRIT device is part of a system that consists of five elements: • S8 AUTOSET SPIRIT self-adjusting flow generator • Mask • Humidifier • Data management products • Accessories. S8 AUTOSET SPIRIT Please refer to the illustrations in section A of the illustration sheet. FRONT VIEW (A-1) Shows the keypad and LCD screen, and the air outlet. REAR VIEW (A-2) Shows where the module attaches, and the location of the air filter and power sockets.
• ULTRA MIRAGE™ FULL FACE MASK. Note: Not all masks are available in all regions. ! WARNING In AutoSet mode, only ResMed mask systems are compatible for use with the S8 AutoSet Spirit. Please refer to “Warnings” on page 2. HUMIDIFIER Please refer to the illustration in section B of the illustration sheet. A humidifier may be required if you are experiencing dryness of the nose, throat, or mouth. The S8 AUTOSET SPIRIT is compatible for use with the HUMIDAIRE 3i™ integrated heated humidifier.
HOW TO USE THE S8 AUTOSET SPIRIT Please refer to the illustrations in section D of the illustration sheet. SET UP THE S8 AUTOSET SPIRIT 1 Place the S8 AUTOSET SPIRIT on a table near the head of your bed. ! CAUTION Be careful not to place the device where it can be bumped or where someone is likely to trip over the power cord. Note: You can also place your S8 AutoSet Spirit on the floor beside or underneath your bed.
START TREATMENT 1 Make sure the power is on. A welcome message is displayed briefly on the LCD screen, then the standby screen appears. In CPAP mode, the standby screen displays the word “RAMP”. In AutoSet mode, the standby screen displays the word “SETTLING”. The key and LCD backlights also turn on. 2 Lie down and arrange the air tubing so that it is free to move if you turn in your sleep. ! CAUTION Do not leave long lengths of air tubing around the top of your bed.
STOPPING TREATMENT To stop treatment at any time, remove your mask and press the Start/Stop key or if your clinician has enabled SmartStart, simply remove your mask and treatment will end. USING THE MASK-FITTING FEATURE You can use the S8 AUTOSET SPIRIT mask-fitting feature to help you fit your mask properly. This feature delivers air pressure for a three-minute period, prior to starting treatment, during which you can check and adjust your mask fit to minimise leaks.
4 After three minutes, the pressure reverts to the set pressure and treatment will begin. If you do not wish to wait three minutes, hold down the Start/Stop key for at least three seconds to start treatment immediately. • If you press the Start/Stop key for less than three seconds, the unit will return to standby mode (the RAMP or SETTLING screen is displayed).
HOW TO ATTACH A HUMIDIFIER ATTACH A HUMIDAIRE 3i HUMIDIFIER Please refer to the illustration in section E of the illustration sheet, and your HumidAire 3i manual. The HUMIDAIRE 3i attaches to the front of the S8 AUTOSET SPIRIT to provide heated humidification. No other accessories are required for its use. Notes: a. Make sure the water chamber of the HumidAire 3i is empty before you attach or detach the humidifier. b. Remove the connector plug on the S8 AutoSet Spirit before you attach the HumidAire 3i.
12
HOW TO USE THE KEYPAD The control panel of the S8 AUTOSET SPIRIT includes an LCD screen and keypad for navigating through the menus and delivering treatment. LCD screen Up key Right key Left key Start/Stop key Down key LCD SCREEN The LCD screen displays the menus and treatment screens. The LCD backlight turns off after two minutes of inactivity. It turns back on when you press a key.
When the S8 device is in standby mode all keys remain lit. During therapy, the keypad backlight turns off after two minutes of inactivity and the Start/Stop key dims. HOW TO CHANGE THE SETTINGS You can change settings on the S8 AUTOSET SPIRIT by using the keypad and LCD. When the S8 AUTOSET SPIRIT is in standby mode you can display a series of screens (a menu) on the LCD screen in order to view and change the settings for a particular function.
Table 2: Ramp and Settling Functions Screen Function Description Setting Options Ramp (CPAP Mode only) Selects the ramp time. Ramp time is the period during which the S8 AutoSet Spirit increases from a low pressure to the prescribed treatment pressure. OFF–45 min; 5-minute increments Settling (AutoSet Mode only) Selects the settling time. Settling time is the period during which the S8 AutoSet Spirit maintains a minimum pressure before it starts to adjust pressure in response to respiratory events.
16
HOW TO USE THE STANDARD MENU Figure 1 shows the standard menu.
The following table shows the setting that should be selected for each mask type.
HOW TO USE THE DETAILED MENU Figure 2 shows the detailed menu.
HOW TO CHANGE THE EXPIRATORY PRESSURE RELIEF SETTING Note: EPR may not be available in all regions. In CPAP mode, your clinician may have set up your device to deliver expiratory pressure relief (EPR). This can be used to help ease any discomfort you may experience when breathing out during treatment. There are four settings: • OFF (no EPR) • 1 (lowest EPR) • 2 • 3 (highest EPR). If you have access and want to change the EPR setting, scroll to EPR SETTING and select Change (Left key).
to change the option to ON or OFF. HOW TO CHANGE THE LEAK ALERT SETTING Leak alert indicates when a high mask leak is present. Scroll to LEAK ALERT and select Change (Left key). Press the Up or Down keys to change the option to ON or OFF. RESULTS MENU Select Enter (Left key) on the Results menu to access the options in this menu. Note: Your clinician may have customised your device to display Smart Data. Contact your clinician for further details about Smart Data.
Your clinician can set any of the following reminders on your LCD: Message Description Action INSERT CARD May appear if your device is Data Card enabled. Insert your Data Card (see Section H of the illustrations sheet) and follow any instructions that your clinician has given you. When you have done this, the message will disappear from the LCD. Pressing the Left (Ok) key will also remove the message. REPLACE MASK May appear when your mask is due for replacement.
S8 MODULES Note: Do not remove modules while power is connected to the S8 AutoSet Spirit. Your S8 AUTOSET SPIRIT will have one of two modules fitted to the back: a blank module or a RESSCAN Data Card module. USING A BLANK MODULE Please refer to the illustrations in section F of the illustration sheet. The blank module is a protective cover on your S8 AUTOSET SPIRIT. At times, you may wish to remove or attach the module, for example to use another module.
1 INSERT THE DATA CARD • Switch on the S8 AUTOSET SPIRIT and wait until you see the standby (RAMP or SETTLING) screen. • Hold the Data Card with the arrow facing up and insert it into the slot in the Data Card module (H-1). • Push the card in smoothly until it stops moving (H-2) and messages start appearing on the LCD. 2 COPY DATA ONTO THE DATA CARD • Data copying starts automatically when the Data Card is inserted into the Data Card module.
! WARNING If your clinician has told you to use this Data Card to update the settings on your device and the “Settings Success” message does not appear, contact your clinician immediately.
26
CLEANING AND MAINTENANCE You should regularly carry out the cleaning and maintenance described in this section. Refer to your mask manual for detailed instructions. DAILY CLEANING MASK Clean the mask according to the instructions supplied with the mask. AIR TUBING Disconnect the air tubing from the S8 AUTOSET SPIRIT (and humidifier, if used) and hang the tubing and mask in a clean, dry place until next use.
REPLACING THE AIR FILTER To replace the air filter: 1. Remove the air filter cover at the back of the S8 AUTOSET SPIRIT. Air filter cover 2. Remove and discard the old air filter. 3. Insert a new filter with the blue tinted side facing out from the device. 4. Replace the air filter cover. Inspect the air filter every month to check if it is blocked by dirt or contains holes.
FREQUENTLY ASKED QUESTIONS HOW WILL IT FEEL WHEN I AM BREATHING WITH THE S8 AUTOSET SPIRIT? When you first use your S8 AUTOSET SPIRIT, you may feel uncomfortable breathing against the airflow. This is normal. You will continue to breathe normally while you sleep. Take time to adjust to this new sensation. WHAT DO I DO WHEN I WANT TO GET UP IN THE NIGHT? If you need to get up during the night, remove your mask and stop therapy. Always remember to restart therapy and put your mask on when you return to bed.
ALTITUDE CHANGES Your S8 AUTOSET SPIRIT automatically adjusts to changes in altitude up to 2591 m. ON AN AIRCRAFT Please consult the medical services department of your carrier if you intend to use your S8 AUTOSET SPIRIT on an aircraft. The S8 AUTOSET SPIRIT complies with US FCC Part 15, Class B requirements if no external data cables are used. Note: Do not use your S8 AUTOSET SPIRIT while the aircraft is taking off or landing.
TROUBLESHOOTING If there is a problem, try the following suggestions. If the problem cannot be solved, contact your equipment supplier or ResMed. Do not attempt to open the device. Problem Possible Cause Solution No display. Power not connected. Ensure the appropriate power cord is connected to your S8 AutoSet Spirit and the power switch (if available) is on. Insufficient air delivered from S8 AutoSet Spirit. Ramp or settling time is in use.
Problem Possible Cause Solution There is excessive leak. Adjust position of mask and headgear. Caps may be missing from ports on mask. Replace them. Air tubing not connected properly. Connect firmly at both ends. Air tubing kinked or punctured. Straighten or replace. 32 S8 AutoSet Spirit unit does not stop when you remove your mask. SmartStart/Stop is disabled. Enable SmartStart/Stop. SmartStart is enabled but the flow generator does not stop automatically when you remove your mask.
Problem Possible Cause Solution Display error message: Check tube!! Key if done The air tubing is loose or blocked. Check that the air tubing is connected securely to your mask and the air outlet on the front of the S8 AutoSet Spirit. When you have checked the air tubing, press the Start/Stop key to restart the device. If this does not clear the message, disconnect the power cord and then reconnect it to restart the device. Display error message: SYSTEM ERROR Call service! Component failure.
Problem Possible Cause Solution You may have removed the Data Card before settings were copied to the S8 AutoSet Spirit. Reinsert the Data Card and wait for the Settings Success Remove Card message to appear on the LCD. The card is not a ResScan Data Card. Only use a ResScan Data Card. The Data Card is not inserted correctly. Ensure that the Data Card is inserted with the arrow facing up and pointing toward the device. The card is not a ResScan Data Card.
SYSTEM SPECIFICATIONS S8 AUTOSET SPIRIT (NO ACCESSORIES) Performance: Operating pressure range: 4 to 20 cmH2O Dimensions (H x W x D): 112 mm x 164 mm x 145 mm Weight: 1.3 kg Power Supply Input range for S8 AUTOSET SPIRIT with HUMIDAIRE 3i: 100–240 V, 50/60 Hz; 110 V, 400 Hz; 2.5A <140 VA (110 W) (maximum power consumption). Instantaneous peak power consumption <340 VA. • Refer to the DC-12 converter instructions for DC ratings. Only use the ResMed DC-12 converter for DC input.
DATA CARD MODULE Dimensions (H x W x D): 49.7 mm x 42.
GUIDANCE AND MANUFACTURER’S DECLARATION - ELECTROMAGNETIC EMISSIONS AND IMMUNITY Guidance and manufacturer’s declaration—electromagnetic emissions The S8 series of devices is intended for use in the electromagnetic environment specified below. The customer or the user of the S8 device should assure that the device is used in such an environment. Electromagnetic environment— guidance Emissions test Compliance RF emissions CISPR11 Group 1 The S8 device uses RF energy only for its internal function.
Guidance and manufacturer’s declaration—electromagnetic immunity The S8 series of devices is intended for use in the electromagnetic environment specified below. The customer or the user of the S8 device should assure that the device is used in such an environment.
Guidance and manufacturer’s declaration—electromagnetic immunity The S8 series of devices is intended for use in the electromagnetic environment specified below. The customer or the user of the S8 device should assure that the device is used in such an environment.
Recommended separation distances between portable and mobile RF communications equipment and the S8 series of devices The S8 series of devices is intended for use in an environment in which radiated RF disturbances are controlled.
LIMITED WARRANTY ResMed warrants that your ResMed product shall be free from defects in material and workmanship for the period specified below from the date of purchase by the initial consumer. This warranty is not transferable. Product Warranty Period ResMed humidifiers, ResControl™, ResLink™ 1 Year ResMed flow generators 2 Years Accessories, mask systems (including mask frame, cushion, headgear and tubing). Excludes single-use devices. 90 Days Note: Some models are not available in all regions.
42
INDEX A accessories 6 air filter 5, 31 replacing 28 air pressure 31 air tubing 5 cleaning 27 connect to air outlet 7 kinked 31 positioning 8 aircraft 30 airflow breathing with 29 H headgear position 31 HumidAire 3i 6 attaching 11 storage 5, 11 humidifiers alleviating dryness 29 cleaning 27 HumidAire 3i 6 type 20 B blank module 23 K keypad 5 key functions 13 C carry bag 5 cleaning daily 27 periodic 27 weekly 27 contraindications 1 D daily cleaning 27 Data Card 23, 33 copying data 24 inserting 24 mailback
access 14 change 14 exit 14 scrolling 14 modules attaching 5 blank 23 Data Card 23 N nasal irritation 29 O Options Menu 21 P PCB serial number 21 periodic cleaning 27 power cord 5, 31 connecting 7 power sockets 5 power sources 30 power supply 35 printed circuit board 21 R Ramp screen 14 ramp time 8, 31 reminders 22 call provider 22 customised messages 22 insert card 22 replace air filter 22 replace mask 22 service due 22 ResScan Data Card module 6 Results Menu 21 right key 13 S S8 AutoSet Spirit dimensions
