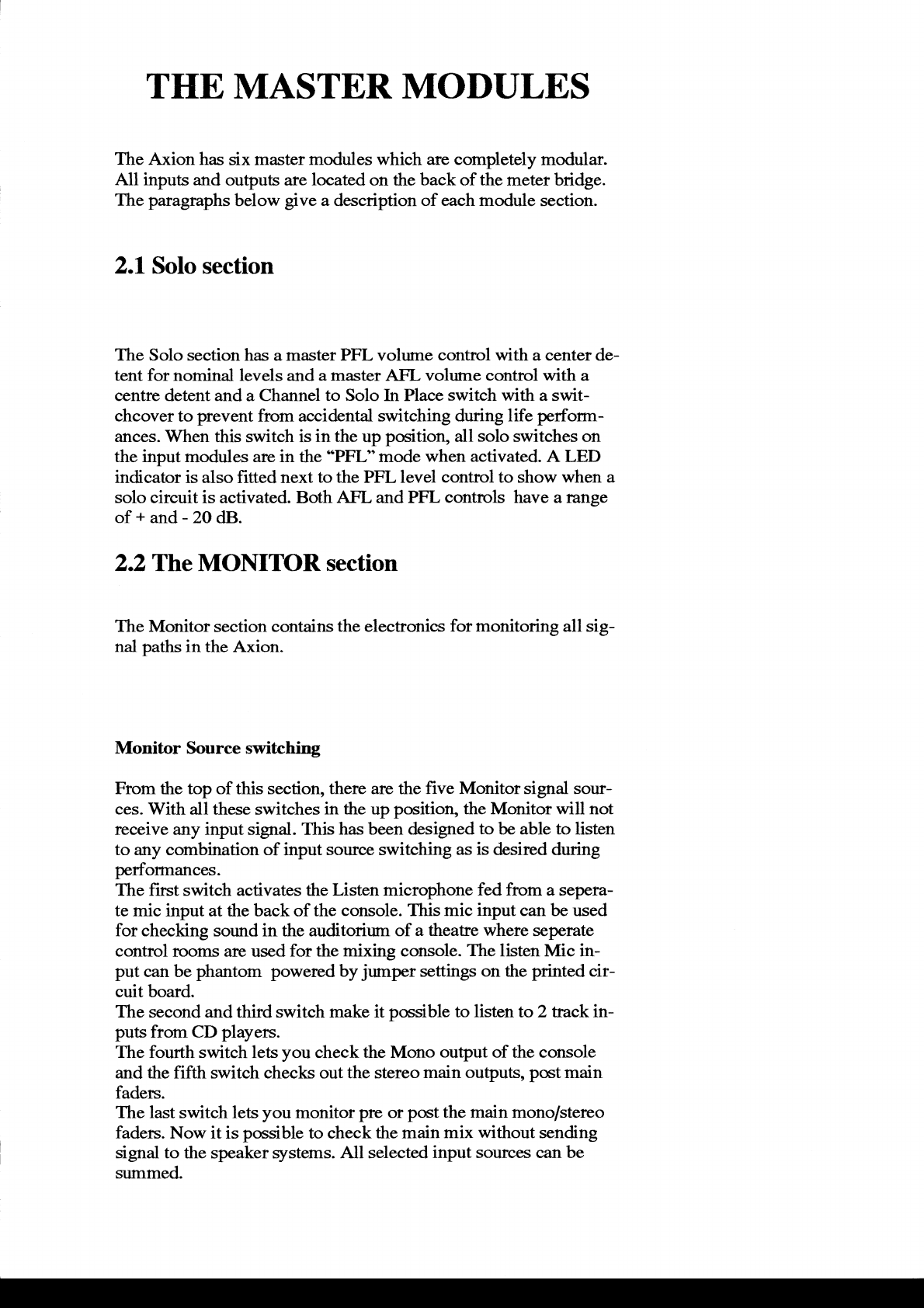

Specifications

THE
MASTER
MOI}ULES
The
Axion has
six rnaster
rnodules
which
are cornpletely
modular.
A11 inputs and
outputs
are
located on the back of the rneter
bridge.
The
paruEraphs
below
gtve a
description
of each rnodule
sectiorl.
2.1
Solo section
The Solo section
has a master
PFL
volume
corrtrol with a center
de-
tent fot nominal levels and
a
master AFL
volume control
with a
cenhe
detent
and a Channel to Solo In Place
switch with
a swit-
chcover
to
prevent
fiom accidental switching dwing
life
perform-
anoes. When this switch is in
the
up
pmition,
all solo switches on
the input modules are in the
*PFL"
mode
when activated. A LED
indicator
is
also
fitted
next to the PFL level
control
to show
when
a
solo circuit is
activated. Both
AFL and PFL
controls
have a range
of
+
and
-
20
dB.
2.ZTheMOMTOR
section
The Monitor section contains
the electronics fotmonitoring all sig-
nal
paths
in the Axion.
Monitor Source switching
Frorn
the
top
of this sectiono
there ate the
five Monitor
signal
sour-
ces.
With all these switches
in the
up
position,
the
Monitor
will
not
receive any input signal. This
has
been d*rtgned
to
be able
to
listen
to
any cornbination
of
input
sorrce switching
as
is
desired
during
perforrnances.
The first switch
activates
the
Listen
rnicrophone
fed
firrrn a sepera-
te rnic input at the back of the
console.
This
rnic input
can be used
for checking sound in the auditoriurn
of
a theatre where
seperate
control
roorns at€
used
for the
rnixing
console.
The
listen Mic in-
put
can b*
phantorn powered
by
juroper
settings on the
printed
cir-
cuit board.
The second
and third switch
rnake it
possible
to
listen
to 2 track in-
puts
frorn
CD
players.
The fourth
switch lets
you
check
the
Mono
output of the console
and the fifth switch checks out
the
stereo
rnain outputs,
post
rnain
faders.
The last switch lets
you
rnonitor
pre
or
post
the rnain
rnono/stereo
faders. Now it
is
possible
to
check
the rnain
rnix
without
sending
signal to
the speaker systerns.
Al1 selected
input sources
can be
surnrned.
