Balance connector wiring

When using FMA Wiring mode (Factory Default Setting)

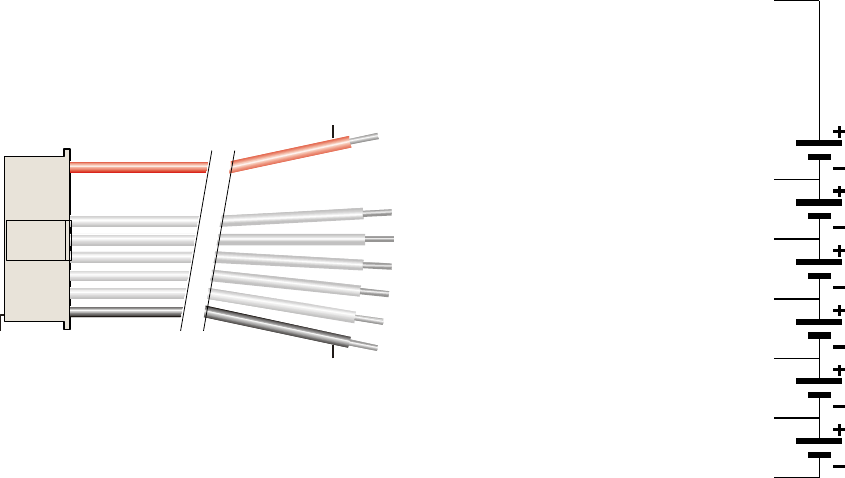

The following diagrams shows how a 9 pin Cellpro (JST PA series) balance connector

(REVO PN CPBP9P-10-US) must be wired to a 6s, 5s, 4s, 3s, 2s, and 1s battery pack

when the PowerLab 6 is set to FMA Wiring mode (Factory default). Whether the

following is accomplished via the available adapters, or by physically connecting

(soldering) the 9 pin Cellpro pigtail to a battery pack directly, this is what the PowerLab

must see at its balance connector (output):

Pin 1

Red

Black

Node 5

Pack positive

Node 4

Node 3

Node 2

Node 1

Pack negative

6s Pack

Pack positive

(red), 22.2V*

Node 4, 14.8V*

Node 5, 18.5V*

Node 3, 11.1V*

Node 2, 7.4V*

Node 1, 3.7V*

Pack negative

(blk), 0V

Cell 5

Cell 6

Cell 4

Cell 3

Cell 2

Cell 1

* Nominal voltage with

respect to pack negative

FMA Cellpro Connector/FMA Wiring Mode
