Manual – Gear Units and Gearmotors
Example for the unit designation of a MOVIMOT® gearmotor
Unit Designations and Versions
3.10 Example for the unit designation of a MOVIMOT
®
gearmotor
The unit designation of the MOVIMOT
®
gearmotor starts from the component on the
output end. For example, a MOVIMOT
®
helical-bevel gearmotor with brake has the foll-
wing unit designation:
KA 77 DT 90L4 BMG/MM15/MLU
MOVIMOT
®
option 24 V supply
1)
1) Only options installed at the factory are listed on the nameplate.
MOVIMOT
®
frequency inverters
Brake (motor option)
Motor size and number of poles
Motor series
Gear unit size
Gear unit type
53435AXX

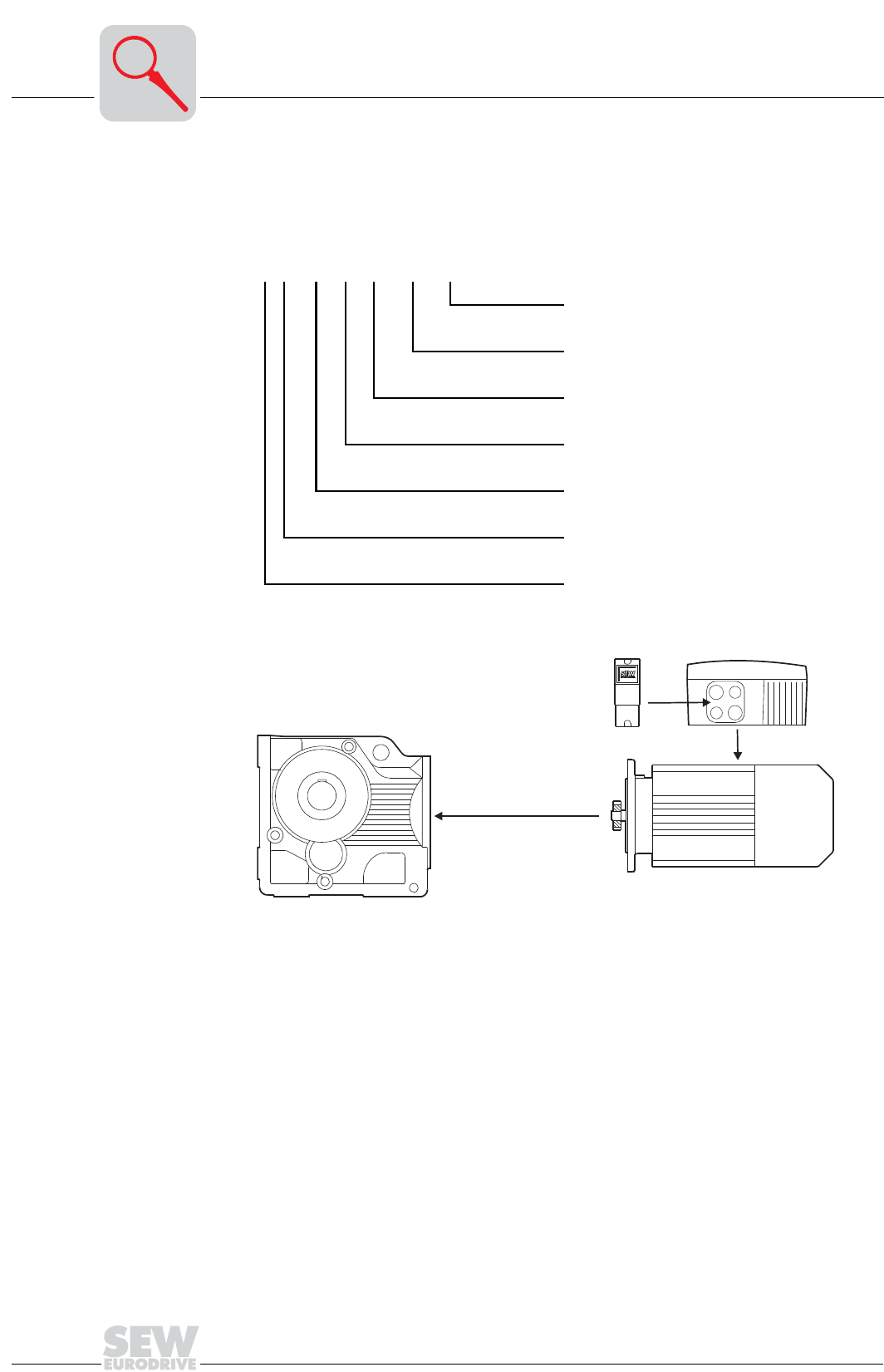

Figure 4: Example for the unit designation of a MOVIMOT
®
gearmotor
KA77
MLU..
MM15
DT 90L4BMG
