TEMPERATURE CONTROL – DELUXE
23
bath fill water volume display panel – The selected bath fill water volume is displayed in litres on all Deluxe
controllers.
The selected bath fill water volume is displayed whenever the Bath Fill function is on
(refer to “Bath-Fill Function” on page 32) or when the bath fill water volume is being
adjusted and the Bath Fill function is off.
If the bath fill water volume is being adjusted and the Bath Fill function is off, then the
bath fill water volume display panel goes blank three (3) seconds after a BATH FILL
VOLUME button is last pressed.
At other times, if the Bath Fill function is off, the bath fill water volume display panel
remains blank.
bath fill indicator light – this light in the display panel will glow when the bath fill water volume is displayed.
BATH FILL TEMPERATURE up () button – The up () button increases the bath fill water temperature
setting (refer to “Temperature Adjustment – Deluxe Controllers” on page 27 and to
“Bath-Fill Function” on page 32).
BATH FILL TEMPERATURE down () button – The down () button decreases the bath fill water
temperature setting (refer to “Temperature Adjustment – Deluxe Controllers” on page 27
and to “Bath-Fill Function” on page 32).
BATH FILL VOLUME up () button – The up () button increases the bath fill water volume setting in
increments of 10 litres up to 500 litres. A further setting of 990 litres can be selected.
BATH FILL VOLUME down () button – The down () button decreases the bath fill water volume setting
from 990 litres to 500 litres and in increments of 10 litres from 500 litres down to 10 litres.

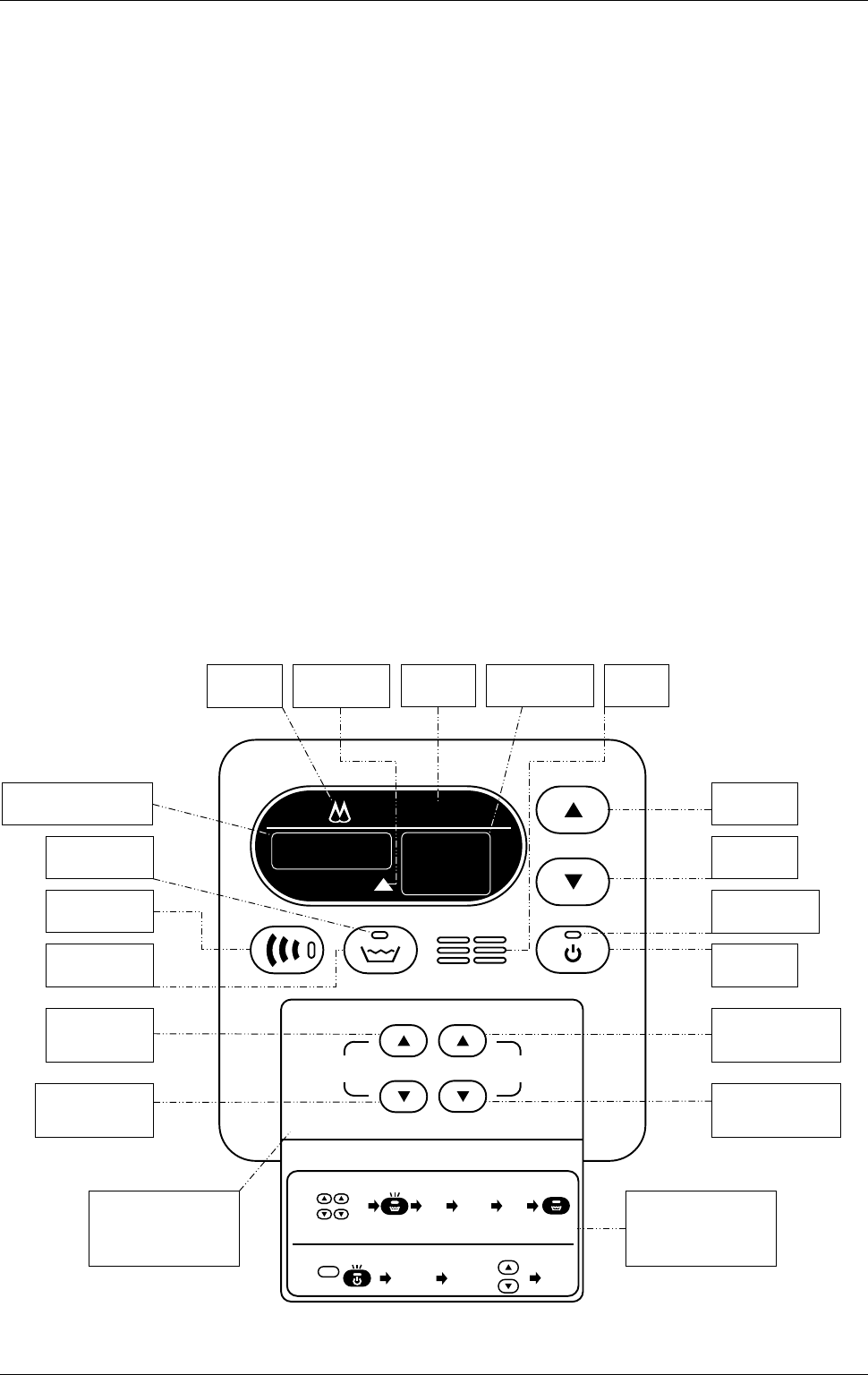

DELUXE CONTROLLER
speaker
PRIORITY
BATH (l)
°C
230
42
Open
hot tap
4.
Adjust
Temperature
3.
Hot Water
1.
Press
PRIORITY
Light on
2.
Bath Fill
1.
2.
Bath
Water
Volume
Bath
Fill
Temp
Set Bath Fill
Water Volume
and Temperature
Open
hot tap
4.
Bath Fill
completed
(automatic)
Bath Fill Button
(Red light flashes)
5.
6.
Close
hot tap
3.
Press Bath
Fill Button
(Red light on)
7.
Press Bath
Fill Button
(Red light off)
K
BATH FILL
VOLUME
BATH FILL
TEMPERATURE
BATH FILL
VOLUME
up () button
bath fill
button
assistance call
button
bath fill
operating light
Deluxe controller type
K = Kitchen
B1 = Bathroom 1
B2 = Bathroom 2
brief Deluxe controller
operating instructions
Bath Fill function and
Hot Water mode
BATH FILL
TEMPERATURE
down () button
BATH FILL
TEMPERATURE
up () button
on / off
button
on / off
operating light
up ()
button
down ()
button
operating
light
bath fill water volume
display panel
bath fill
indicator light
PRIORITY
light
temperature
display panel
BATH FILL
VOLUME
down () button
