TEMPERATURE CONTROL – DELUXE
40
Operation of the Bath Fill function whilst a Deluxe Controller has priority
It is recommended the Bath Fill function be set and operated with the Deluxe controllers turned off (refer to
Step 1 on page 34).
However, if a Deluxe controller has PRIORITY during the setting and operation of the Bath Fill function, then
the following additional events occur:

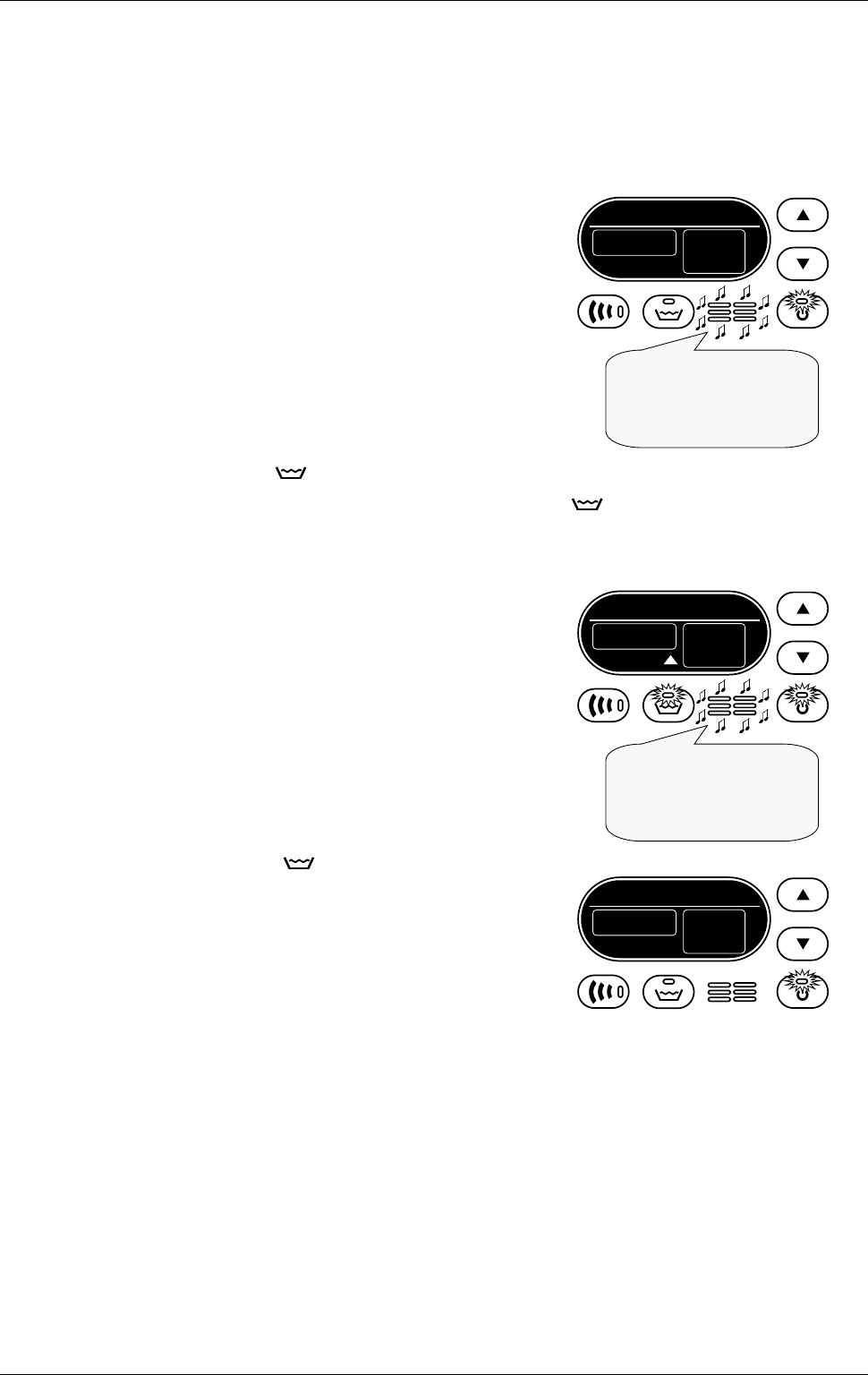

During Step 3, when the bath fill temperature is being set
The temperature setting of the PRIORITY Deluxe controller
will display in the temperature display panel three seconds
after the BATH FILL TEMPERATURE button is last pressed.
When the Deluxe controller temperature setting is higher than
the bath fill temperature setting, the voice prompt will sound;
“hot water temperature has been increased”
When the Deluxe controller temperature setting is lower than
the bath fill temperature setting, the voice prompt will sound;
“hot water temperature has been decreased”
During Step 6, when the bath fill ( ) button is pressed to turn the Bath Fill function on
The Bath Fill function has priority when operating. When the bath fill ( ) button is pressed, the Bath Fill
function will gain priority and over-ride the settings of all Deluxe controllers if they are on.
The PRIORITY light will go out if it is on.
The bath fill temperature setting will replace the temperature
setting in the temperature display panel.
When the bath fill temperature setting is lower than the Deluxe
controller temperature setting, the voice prompt will sound;
“hot water temperature has been decreased”
When the bath fill temperature setting is higher than the
Deluxe controller temperature setting, the voice prompt will
sound;
“hot water temperature has been increased”
During Step 9, when the bath fill ( ) button is pressed to turn
the Bath Fill function off
The PRIORITY light will glow on the Deluxe controller which
has priority.
The temperature setting of the PRIORITY Deluxe controller
will display in the temperature display panel.
Notes
If it is a Bathroom Deluxe controller which is in use and it is on, i.e. it has priority and the PRIORITY light
is glowing, then it is advised to leave the controller on.
Refer to the warning in the notes on page 30.
If it is the Kitchen Deluxe controller which is in use and it is on, i.e. it has priority and the PRIORITY light
is glowing, then it is advised to turn the controller off.
Refer to Important note for Bathroom controllers on page 30.
X 10L
88
°C
X 10L
88
°C
X 10L
88
°C
PRIORITY
°C
46
BATH (l)
“hot water temperature has
been increased”
or
“hot water temperature has
been decreased”
BATH (l)
°C
120
40
“hot water temperature has
been increased”
or
“hot water temperature has
been decreased”
PRIORITY
°C
46
BATH (l)
