COMMISSIONING
78
Notes:
If the burners extinguish and an error code 11 or 12 starts to flash on the LED display:
release the MIN and adjuster buttons
close the hot tap
clear the error code (refer to “Clearing Error Code” on page 78)
recommence the procedure from Step 9.
If the adjuster button is released before Step 14, clear any error code (if displayed) and recommence the
procedure from Step 9.
Maximum test point gas pressure
Refer to the rating label on the water heater for the maximum test point gas pressure.
Follow Steps 9 to 15 of the “Minimum test point gas pressure” procedure on page 77, but open the hot tap fully
and use the MAX button instead of the MIN button. It may be necessary to open two or three hot taps fully,
depending upon the model of water heater and the incoming cold water temperature.
Notes:

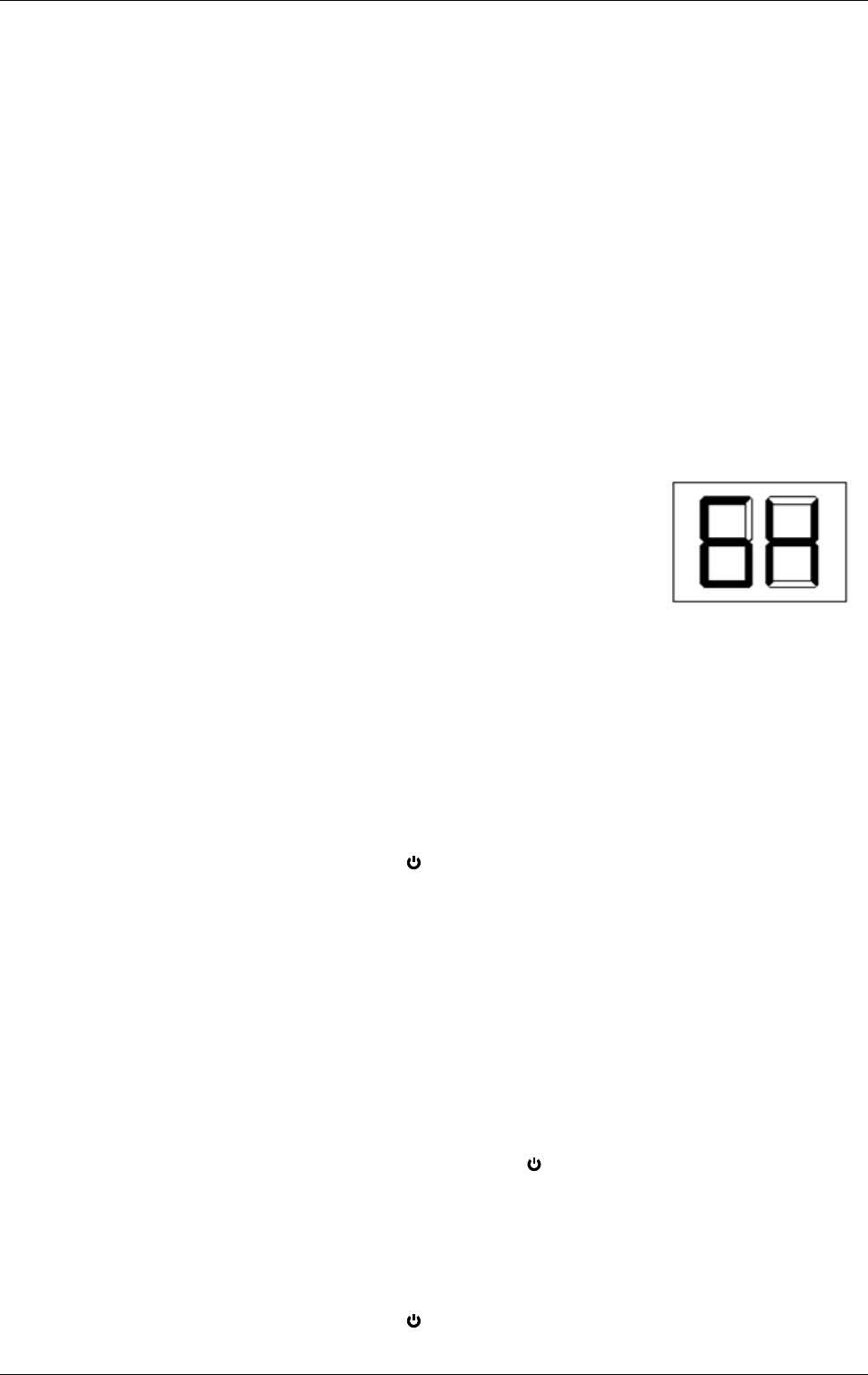

In Step 10, “6H” will be shown on the LED display.
In Step 13 While the MAX button is pressed, the gas pressure will at first
increase then decrease, cycling between an upper gas pressure limit (39 on
the LED display) and a lower gas pressure limit (01 on the LED display).
After setting the minimum and maximum test point gas pressures:
Close the hot tap.
Remove the manometer and refit and tighten the test point screw and washer.
Open a hot tap again so the burners ignite.
Test for gas leaks.
Close the hot tap.
Turn off the controller by pressing the on / off ( ) button.
Switch off the electrical supply at the power outlet to the water heater
Refit the front panel and screws to the water heater.
Refit the cover strips to the top and bottom of the front panel by inserting the two posts into the two
recesses and gently pushing into position.
Clearing Error Code
If an error code does appear on the LED display during the commissioning process, it will be necessary to
clear the error in order to complete the installation.
To clear an error code:
Turn off the controller, if one is fitted, by pressing the on / off ( ) button.
Switch off the electrical supply at the power outlet to the water heater.
Check the gas isolation valve at the gas inlet to the water heater is fully open.
Wait five (5) minutes.
Switch on the electrical supply at the power outlet to the water heater.
Turn on the controller by pressing the on / off ( ) button.
X 10L
88
°C
X 10L
88
°C
X 10L
88
°C
