Chapter 5 To Trigger the Oscilloscope RIGOL
MSO5000-E User Guide 5-27
of the screen (as shown in the figure below, H indicates the upper limit of the trigger
level, L indicates the lower limit of the trigger level, and △ indicates the trigger level
deviation). When you stopping modifying the trigger level, the trigger level line and
the trigger level information at the lower-left corner of the screen disappear in about
2 s. The current trigger level deviation is displayed at the upper-right corner of the
screen.
Trigger Mode:
In the trigger control area (Trigger) on the front panel, press Mode to quickly switch
the current trigger mode. For details, refer to descriptions in "Trigger Mode".
Trigger Parameter Setting:
Set the trigger parameters (trigger holdoff and noise rejection) under this trigger
type. For details, refer to descriptions in "Trigger Holdoff" and "Noise
Rejection".
Delay Trigger
In Delay trigger, you need to set Source A and Source B. The oscilloscope triggers
when the time difference (△T) between the specified edges of Source A (Edge A)
and Source B (Edge B) meets the preset time limit, as shown in the figure below.
Note: Edge A and Edge B must be two neighboring edges.
T
Source A
Source B
Edge A=
Edge B=

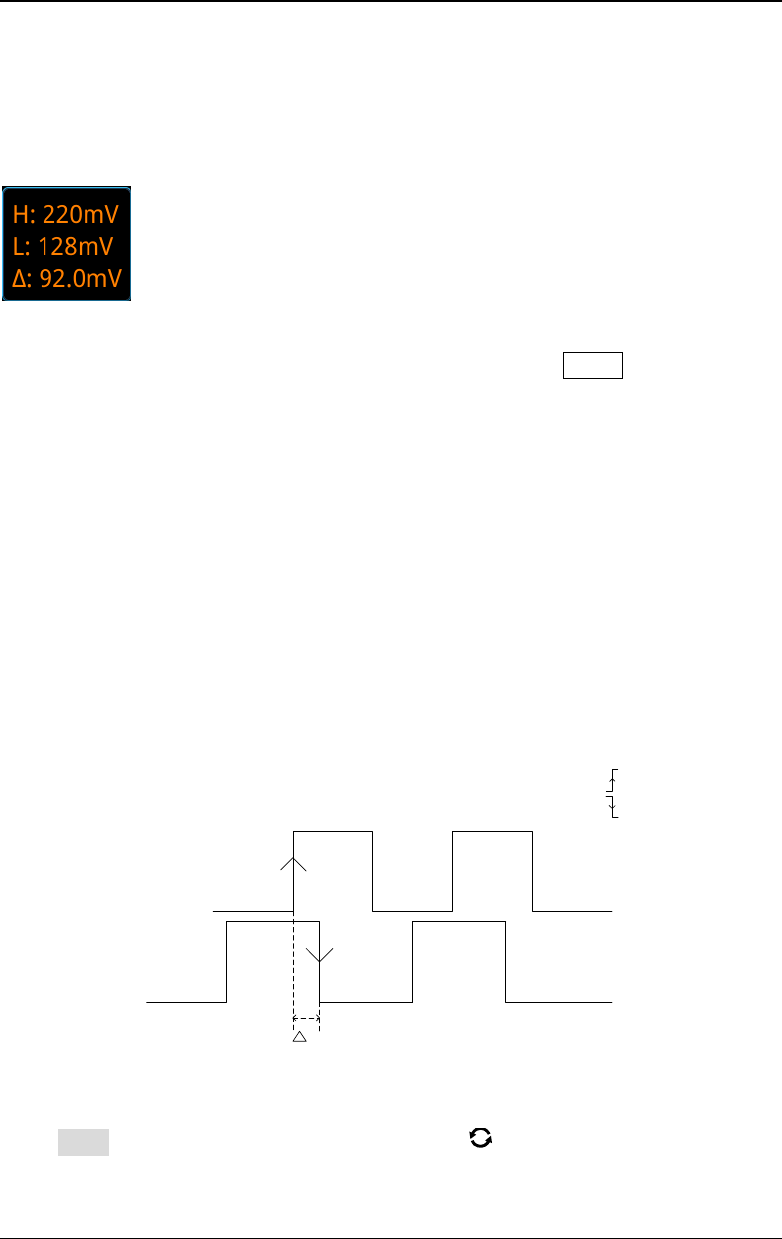

Figure 5-10 Delay Trigger
Trigger Type:
Press Type, and then use the multifunction knob to select "Delay". Press down
the knob to select the trigger type. Then, the current trigger setting information is
displayed at the upper-right corner of the screen, as shown in the figure below. You
