Chapter 5 To Trigger the Oscilloscope RIGOL
MSO5000-E User Guide 5-53
Set the conditions for Trigger zone A and Trigger zone B:
Press Zone A or Zone B , rotate the multifunction knob to select "Intersect" or
"Not intersect", then press down the knob to select it. You can also press Zone A or
Zone B continuously to select the condition, or enable the touch screen to tap the
desired condition and select it.

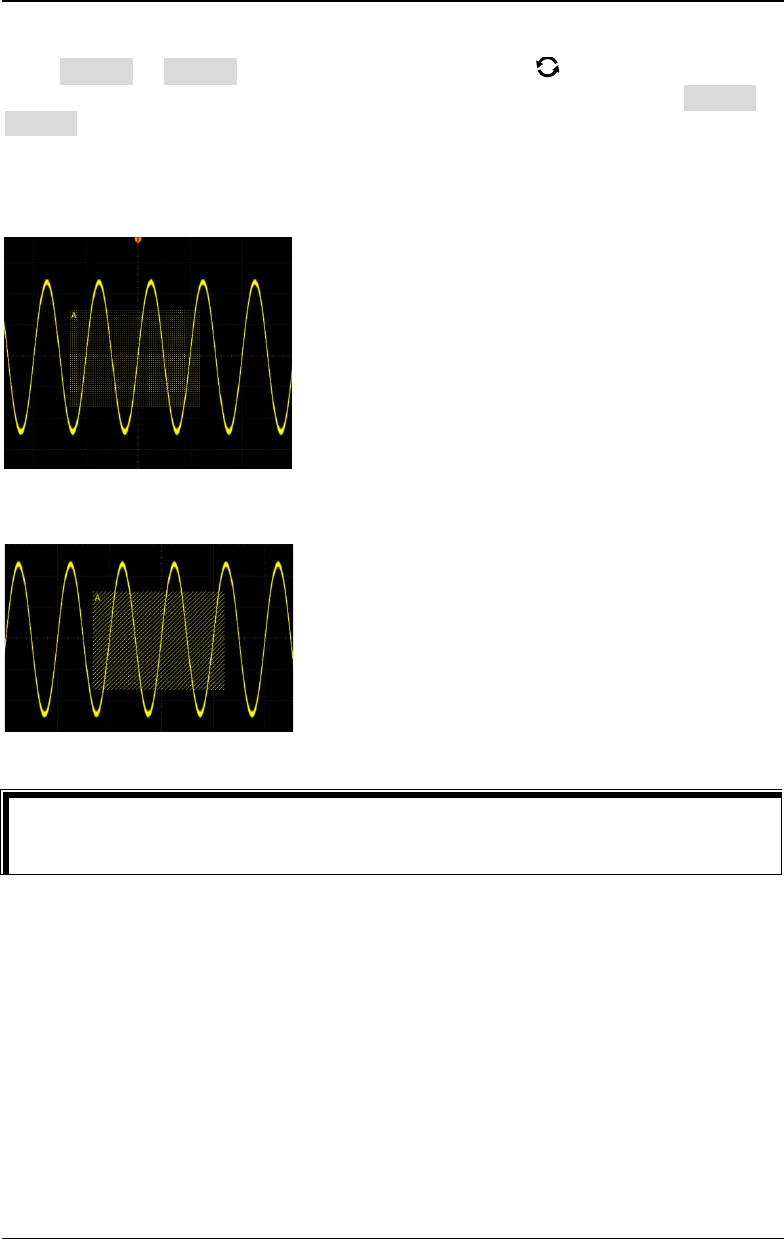

If you enable Zone A, select CH1 as Source A, and select "Intersect" as the condition,
as shown in the figure below.
If you enable Zone A, select CH1 as Source A, and select "Intersect" as the condition,
the following figure is displayed.
Trigger Output Connector
The trigger output connector ([TRIG OUT]) on the rear panel of MSO5000-E series
can output trigger signals (hardware trigger) determined by the current setting.
Tip
If you enable both Trigger zone A and Trigger zone B, then perform the "A&&B"
operation, and it will become the final trigger condition.
